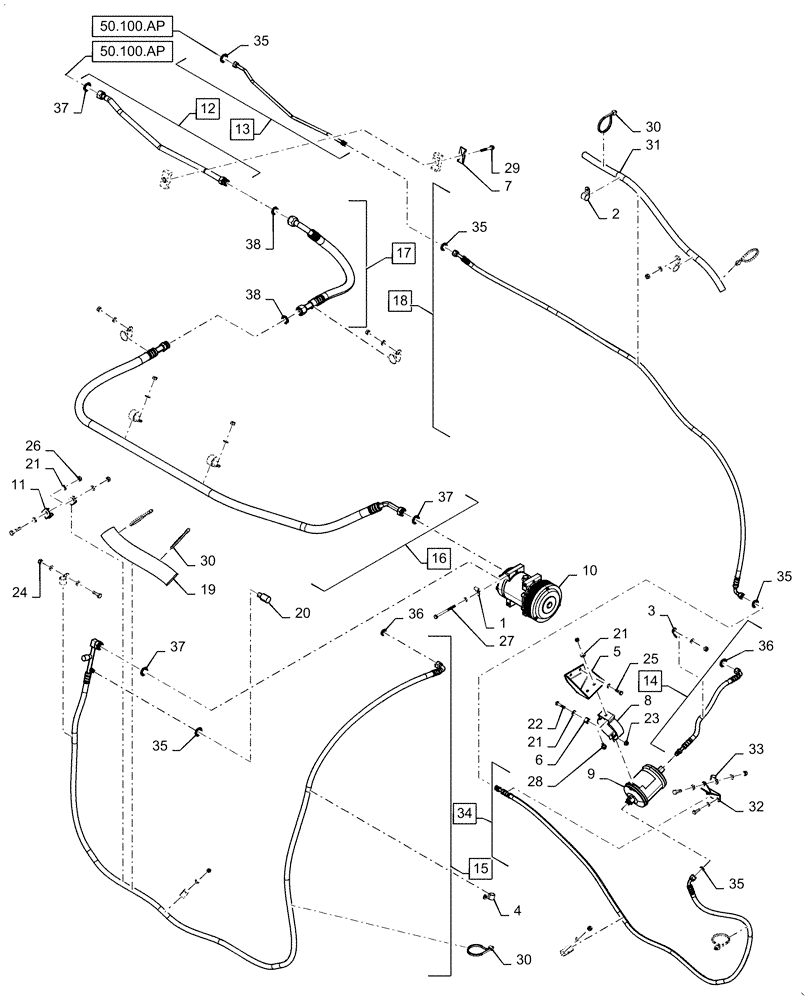

Запчасти Case IH QUADTRAC 500 (50.200.BY[02]) - AIR CONDITIONER LINES, 450, 470, 500, 550, 600, ASN ZEF303633 (50) - CAB CLIMATE CONTROL

1

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

2

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

2шт.

3

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

4шт.

4

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

5шт.

5

47717957

BRACKET

3/8" XPipe - .562"

1шт.

6

87311354

SPACER,10.7mm ID x 17.1mm OD x 14.2mm L

A/C Dryer

2шт.

7

50-2532T1

PLATE

Cover

1шт.

8

433723A1

CLAMP

Bracket, Dryer / Receiver

2шт.

9

47821526

RECEIVER-DRYER

Reservoir

1шт.

10

86993463

AIRCOND. COMPRESSOR

12V

1шт.

10

86993463GV

AIRCOND. COMPRESSOR

Value

1шт.

10

86993463R

REMAN-A/C COMPRESSOR

1шт.

10

86993463C

CORE-A/C COMPRESSOR

Return Number

1шт.

11

84357974

BRACKET, SUPPORTING

Fuel Line Support

1шт.

12

47695011

TUBE

A/C Return To Cab, Incl 37

1шт.

13

84376593

TUBE

A/C Supply Cab, Incl 35

1шт.

14

47713333

A/C HOSE

A/C Condensor To Dryer, Incl 36

1шт.

15

84217000

HOSE ASSY.

Compressor To Condensor, Incl 35 -37

1шт.

16

47695626

HOSE

Evaporator To Compressor Frame, Incl 37

1шт.

17

47695625

HOSE

Evaporator To Compressor Cab, Incl 38

1шт.

18

84481308

HOSE ASSY.,8mm ID x 2175mm L

Dryer To Evaporator, Incl 35

1шт.

19

84366812

PROTECTIVE SLEEVE,46.7mm ID x 305mm L

Protective, Heat

1шт.

20

284273A2

SWITCH, A/C HIGH PRE

Switch

1шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

33шт.

22

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

23

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

24

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

19шт.

25

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

7шт.

26

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

1шт.

27

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

28

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

29

844-8060

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

1шт.

30

L18331

CABLE TIE,375.9mm L, Nylon, Black

6шт.

31

47395525

PROTECTIVE SLEEVE

Heat

1шт.

32

47717952

BRACKET

A/C Hose

1шт.

33

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

1шт.

34

47713329

HOSE

Dryer to Evaporator Frame, Incl 35

1шт.

35

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5шт.

36

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

3шт.

37

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

3шт.

38

47702787

O-RING

2шт.
