Запчасти Case IH QUADTRAC 500 (50.200.BY[01]) - AIR CONDITIONER LINES, 450, 470, 500, 550, 600, BSN ZEF303632 (50) - CAB CLIMATE CONTROL

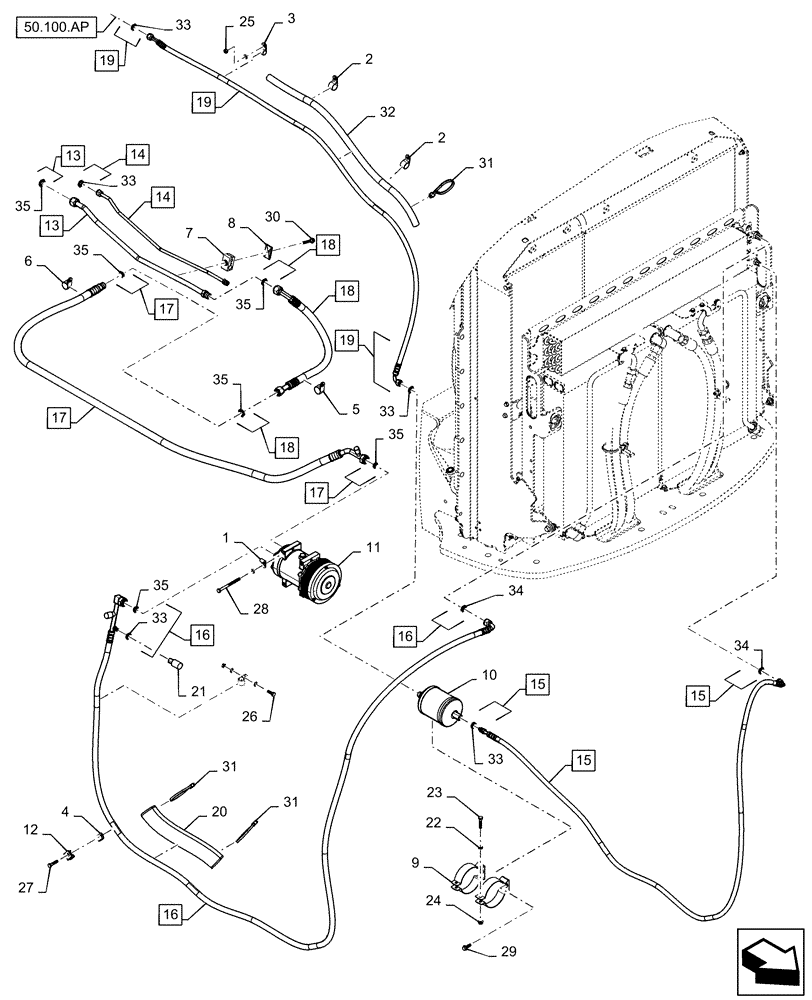

Схема запчастей Case IH QUADTRAC 500 - (50.200.BY[01]) - AIR CONDITIONER LINES, 450, 470, 500, 550, 600, BSN ZEF303632 (50) - CAB CLIMATE CONTROL
50.100.ap
7
4
8
31
25
27
13
32
3
18
31
18
13
2
6
16
24
17
21
33
34
20
33
35
19
15
35
35
16
17
26
18
10
9
19
28
2
31
16
35
19
33
12
1
15
15
5
14
33
29
23
14
17
33
30
11
35
34
22
35

Артикул

Название

Примечание

Количество

1

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

2

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

2шт.

3

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

4шт.

4

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

5шт.

5

515-23254

CLAMP,1", Insul, 3/8" Bolt

4шт.

6

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

1шт.

7

428385A1

SPECIAL CLAMP

Hydraulic Tube

1шт.

8

50-2532T1

PLATE

Cover

1шт.

9

433723A1

CLAMP

Bracker, Dryer/Receiver

2шт.

10

295006A1

RECEIVER-DRYER

Reservoir

1шт.

11

86993463

AIRCOND. COMPRESSOR

1шт.

11

86993463GV

AIRCOND. COMPRESSOR

Value

1шт.

11

86993463R

REMAN-A/C COMPRESSOR

1шт.

11

86993463C

CORE-A/C COMPRESSOR

Return Number

1шт.

12

84357974

BRACKET, SUPPORTING

Fuel Line Support

1шт.

13

84376592

TUBE

A/C Return To Cab, Incl 35

1шт.

14

84376593

TUBE

A/C Supply Cab, Incl 33

1шт.

15

84217001

HOSE ASSY.,8mm ID x 2637mm L

A/C Cond To Dryer, Incl 33, 34

1шт.

16

84217000

HOSE ASSY.

Compressor To Condensor, Incl 33 - 35

1шт.

17

84481305

HOSE ASSY.,15.9mm ID x 2134mm L

Evaporator To Compressor, Frame, Incl 35

1шт.

18

84481306

HOSE ASSY.,15.9mm ID x 675mm L

Evaporator To Compressor, Cab, Incl 35

1шт.

19

84481308

HOSE ASSY.,8mm ID x 2175mm L

Dryer To Evaporator, Incl 33

1шт.

20

84366812

PROTECTIVE SLEEVE,46.7mm ID x 305mm L

Protective, Heat

1шт.

21

284273A2

SWITCH, A/C HIGH PRE

Switch

1шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

25шт.

23

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

24

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

16шт.

26

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

27

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

1шт.

28

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

29

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

30

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

1шт.

31

L18331

CABLE TIE,375.9mm L, Nylon, Black

Hose

6шт.

32

47395525

PROTECTIVE SLEEVE

Heat

1шт.

33

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5шт.

34

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

2шт.

35

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

6шт.

Выбрано товаров: 38
