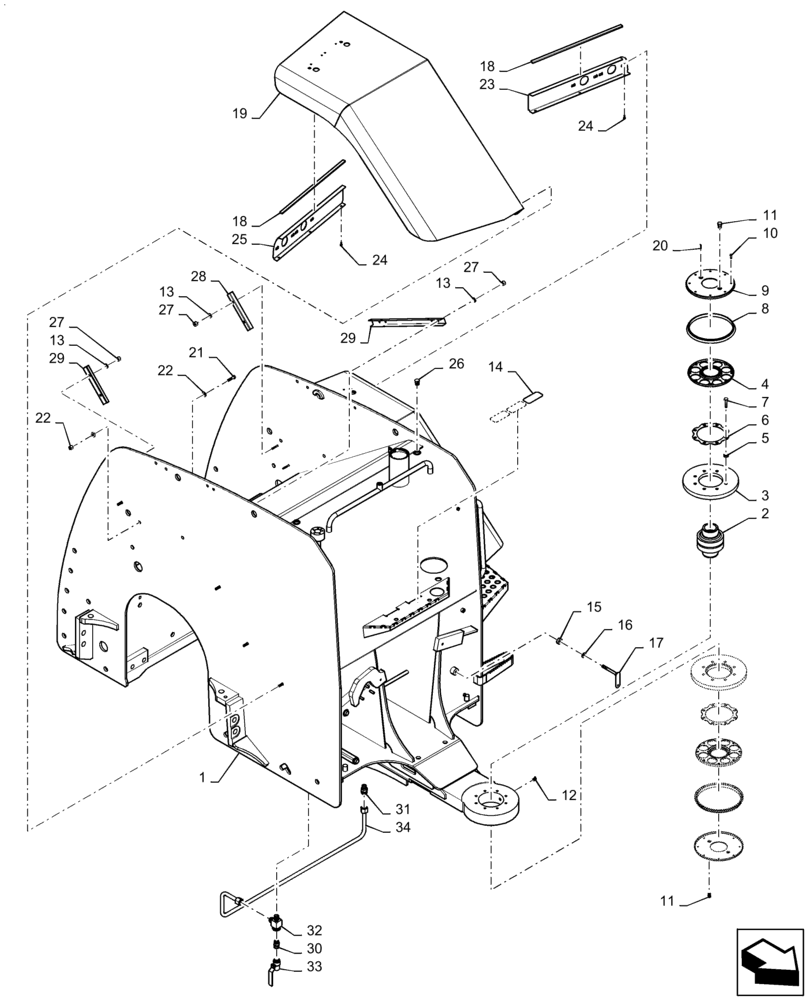

Запчасти Case IH QUADTRAC 500 (39.100.AS[01]) - REAR FRAME, 450, 470, 500, 540, BSN ZEF303000 (39) - FRAMES AND BALLASTING

1

47423458

FRAME

Rear, Fuel Tank

1шт.

2

87644205

BEARING ASSY,119mm ID x 139.7mm OD x 182mm W

Spherical Plain Extended

1шт.

3

84179787

RING

Retaining

2шт.

4

84151002

HOUSING

Assembly

2шт.

5

432444A1

SPACER

Retaining

16шт.

6

87644212

RETAINING PLATE

Frame Pivot

2шт.

7

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

16шт.

8

84307902

RUBBER SEAL

Articulation Joint

2шт.

9

87644215

COVER

Articulation Joint

2шт.

10

463-61010

SCREW,Hex, #10 - 32 x 5/8"

16шт.

11

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

3шт.

12

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

14

87750668

PAD,2" x 4-1/2"

Non-Slip

3шт.

15

321232A1

BUSHING,11mm ID x 31mm OD x 6mm L

2шт.

16

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

9шт.

17

406390A1

HANDLE

Articulation Lock Storage

1шт.

18

47420716

SEAL

Foam Fender QT

2шт.

19

47423455

FENDER

Rear, RH, Years: -30-SEP-15

1шт.

19

48024645

FENDER

Rear, RH, Start Year: 01-OCT-15

1шт.

20

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1шт.

21

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

22

832-10412

NUT,M12 x 1.75, Cl 8

6шт.

23

84207806

COVER

Fender Light, LH

1шт.

24

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

6шт.

25

84207804

COVER

Fender Light, RH

1шт.

26

217-410

PLUG,Hex Hd, 1/2" - 14 NPT

2шт.

27

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

28

84348136

CHANNEL

Wire Guard

2шт.

29

84348141

CHANNEL

Wire Guard

1шт.

30

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

1шт.

31

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

1шт.

32

31-1000

TEE

1/2" NPT x 1/2" NPT

1шт.

33

435446A1

SHUT-OFF VALVE,1/2"-14 NPTF, Ball Type

Fuel Drain

1шт.

34

84142315

FUEL TUBE,15.88mm OD

Crossover, Fuel Tank, Bottom

1шт.
