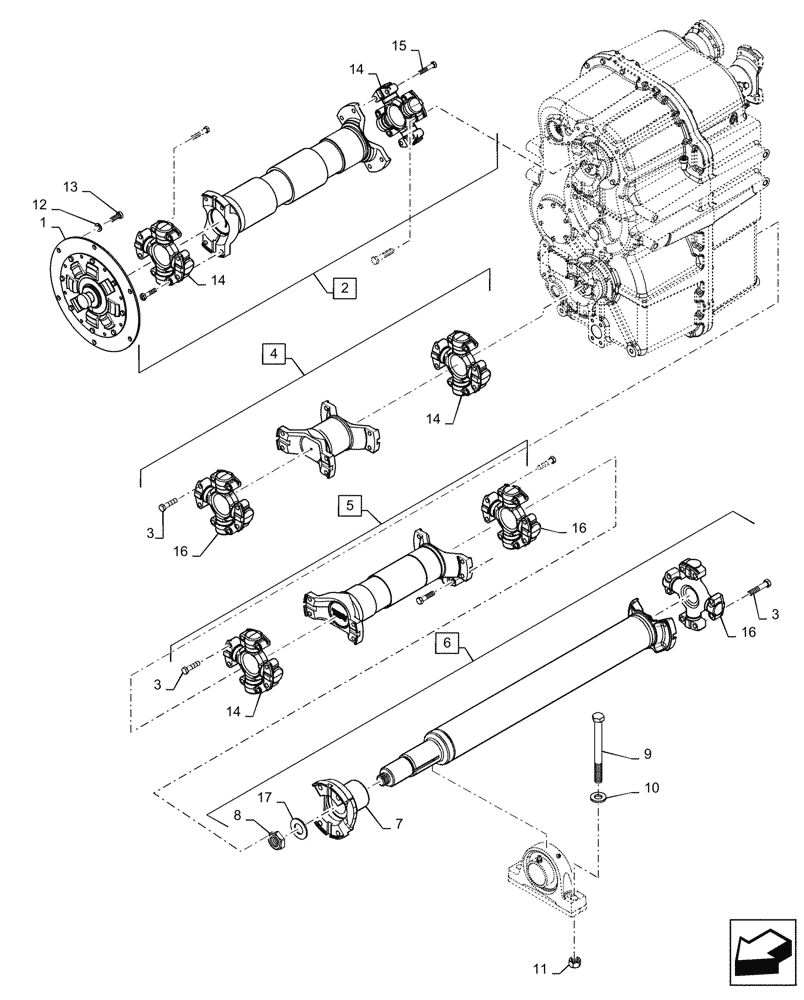

Запчасти Case IH QUADTRAC 500 (23.314.220) - DRIVE SHAFT ASSY (23) - FOUR WHEEL DRIVE SYSTEM

1

84539806

DAMPER,435.68mm OD

Engine

1шт.

2

84227985

DRIVE SHAFT

Engine, Incl 14 - 15

1шт.

3

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

48шт.

4

87756415

DRIVEN SHAFT

Front Axle, Incl 3, 14, 16

1шт.

5

87756416

ARTICULATED SHAFT

Articulation, Incl 3, 14, 16

1шт.

6

402193A1

DRIVE SHAFT

Rear Axle, Incl 3, 7, 8, 16, 17, Serial Range: -ZGF308725

1шт.

6

47755882

DRIVE SHAFT

Rear Axle, Incl 3, 7, 8, 16, 17, Start Serial: ZGF308726

1шт.

7

407633A1

YOKE

Driveshaft, 8.5C

1шт.

8

131-487

LOCK NUT,1 1/4"-18

1шт.

9

827-20250

BOLT,Hex, M20 x 2.5 x 250mm, Cl 10.9

2шт.

10

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

2шт.

11

829-1420

NUT,M20, Cl 10

2шт.

12

496-81010

WASHER

0.469" x 1" x 0.105"

12шт.

13

47379836

12 PT SCREW

Flange, 7/16" x 1"

12шт.

14

87683477

U-JOINT SPIDER

9C

4шт.

15

87015724

BOLT,M12 x 1.75 x 62.68mm OAL, Cl 10.9

8шт.

16

309093A1

UNIVERSAL JOINT

8.5C

3шт.

17

396-11131

WASHER,1 5/16" x 2 1/2" x .150"

1шт.
