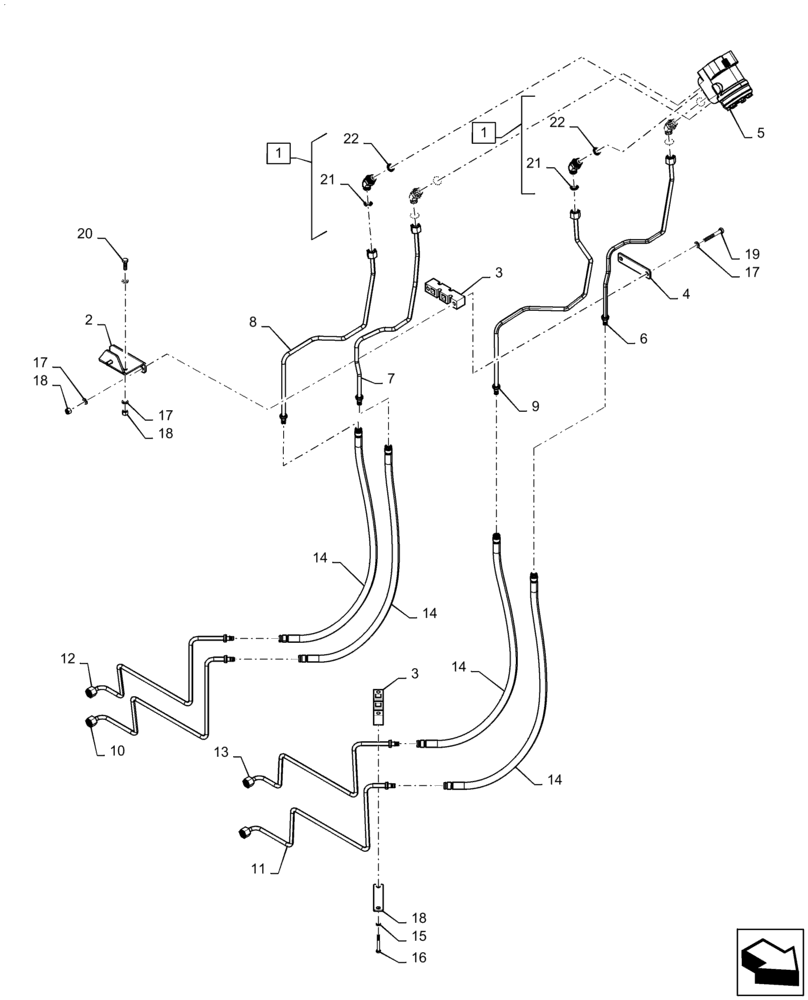

Запчасти Case IH QUADTRAC 500 (41.200.AO[02]) - STEERING LINES, ASN ZFF308001 (41) - STEERING

1

700-446

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 21 - 22

4шт.

2

84340158

BRACKET, SUPPORTING

Steering Support Cab

1шт.

3

87403324

BRACKET

Hydraulic Tube

2шт.

4

87436024

MOUNTING PARTS

Hose Mounting

2шт.

5

84486319

CONTROL VALVE

Orbital Pilot Steering

1шт.

6

87312087

TUBE,9.52 mm OD

Port "R"

1шт.

7

87312089

TUBE,9.52 mm OD

Port "L"

1шт.

8

87312091

TUBE,9.52 mm OD

Port "P"

1шт.

9

87312093

TUBE,9.52 mm OD

Port "T"

1шт.

10

84378775

TUBE

Steering Control Left

1шт.

11

84378782

TUBE

Steering Control Right

1шт.

12

84378788

TUBE

Steering Control Pressure

1шт.

13

84378796

TUBE

Steering Control Tank

1шт.

14

84378798

HOSE ASSY.,9.53mm ID x 766mm L, SAE 100R1

Steering Control

4шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

16

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

19

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

20

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

21

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

22

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.
