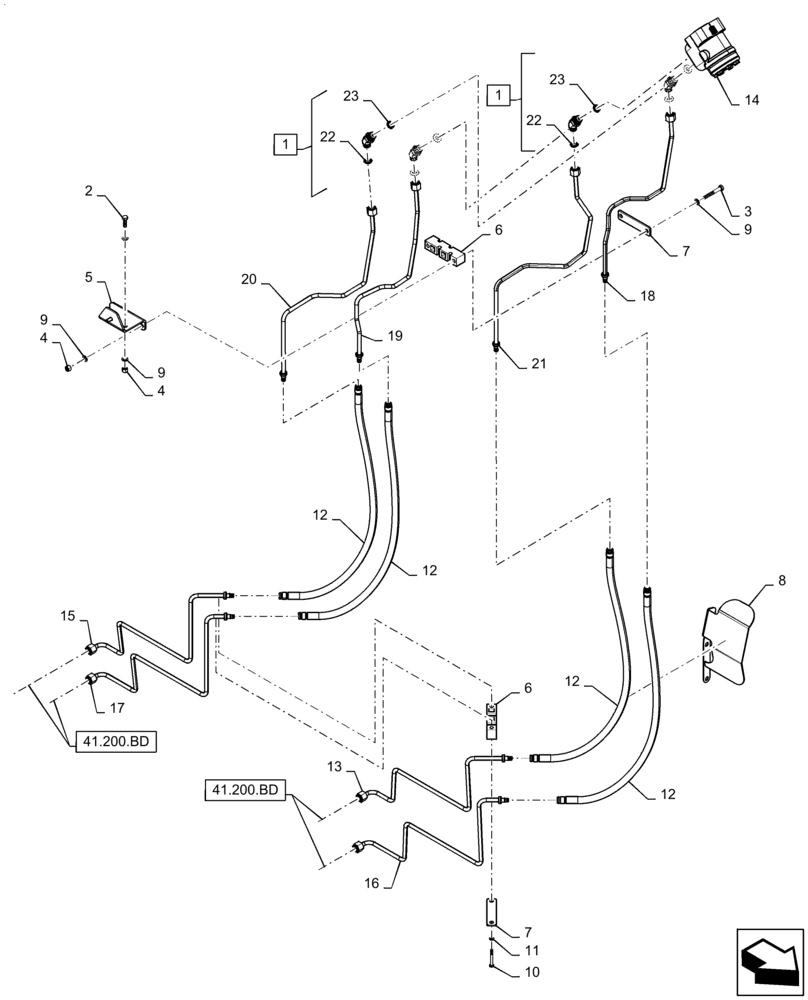

Запчасти Case IH QUADTRAC 500 (41.200.AO[01]) - STEERING LINES, BSN ZFF308000 (41) - STEERING

1

700-446

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 22 - 23

4шт.

2

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

3

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

4

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

5

84340158

BRACKET, SUPPORTING

Steering Support Cab

1шт.

6

87403324

BRACKET

Hydraulic Tube

2шт.

7

87436024

MOUNTING PARTS

Hose Mounting

2шт.

8

84482598

BRACKET

Steering Line Shield

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

10

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

12

84378798

HOSE ASSY.,9.53mm ID x 766mm L, SAE 100R1

Steering Control

4шт.

13

84378796

TUBE

Steering Control Tank

1шт.

14

87667045

STEERING VALVE

Orbital Pilot Steering

1шт.

15

84378788

TUBE

Steering Control Pressure

1шт.

16

84378782

TUBE

Steering Control Right

1шт.

17

84378775

TUBE

Steering Control Left

1шт.

18

87312087

TUBE,9.52 mm OD

Port "R"

1шт.

19

87312089

TUBE,9.52 mm OD

Port "L"

1шт.

20

87312091

TUBE,9.52 mm OD

Port "P"

1шт.

21

87312093

TUBE,9.52 mm OD

Port "T"

1шт.

22

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

23

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.
