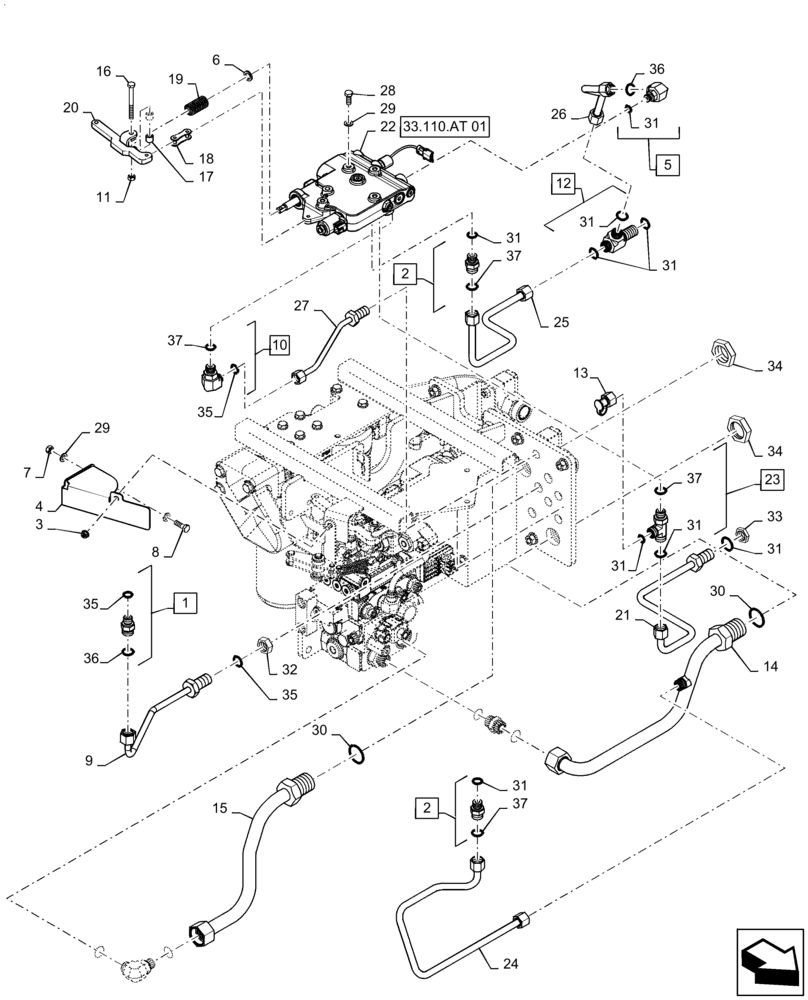

Запчасти Case IH QUADTRAC 500 (33.110.BJ[01]) - PARK BRAKE LINES (33) - BRAKES & CONTROLS

1

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 35 - 36

1шт.

2

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 31, 37

2шт.

3

832-4748

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

4

84408239

BRACKET

Park Brake Lever Cover

1шт.

5

700-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 31, 36

1шт.

6

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

8

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

9

47427414

HYD TUBE

Park Brake Drain

1шт.

10

700-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 35, 37

1шт.

11

832-10406

NUT,M6 x 1, Cl 8

1шт.

12

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl 31

1шт.

13

190316A1

COUPLING

Diagnostic

1шт.

14

84182329

HYD TUBE

IP Pressure

1шт.

15

84182331

HYD TUBE

EF Pressure

1шт.

16

827-6060

BOLT,Hex, M6 x 60mm, Cl 10.9

1шт.

17

392748A1

SPACER

9.1mm x 15.9mm x 13.5mm

2шт.

18

242-4412

CHAIN LINK

Link

1шт.

19

361897A1

SPRING

Compression, 115mm x 27.5mm

1шт.

20

47401716

ARM

Tow Valve

1шт.

21

84182846

HYD TUBE

Park Brake Pressure

1шт.

22

84495761

BRAKE VALVE

Tow/Park Brake, Serial Range: ZEF300001-ZFF304661

1шт.

22

47781505

BRAKE VALVE

Tow/Park Brake, Start Serial: ZFF304662

1шт.

23

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 31, 37

1шт.

24

84182851

HYD TUBE

Tow Valve Pressure Inlet

1шт.

25

84182853

HYD TUBE

Tow Valve Reservoir Inlet

1шт.

26

84542996

TUBE

Tow Valve Tank Return

1шт.

27

84182857

HYD TUBE

Tow Valve Regulated Outlet

1шт.

28

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

29

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

30

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

31

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

10шт.

32

701-909

NUT,11/16" - 16

2шт.

33

701-903

NUT,13/16" - 16

3шт.

34

701-908

BHD LOCK NUT,1-7/16" - 12

2шт.

35

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

36

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

37

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.
