Запчасти Case IH QUADTRAC 500 (27.106.AB[05]) - REAR AXLE DIFFERENTIAL, W/O DIFFERENTIAL LOCK (27) - REAR AXLE SYSTEM

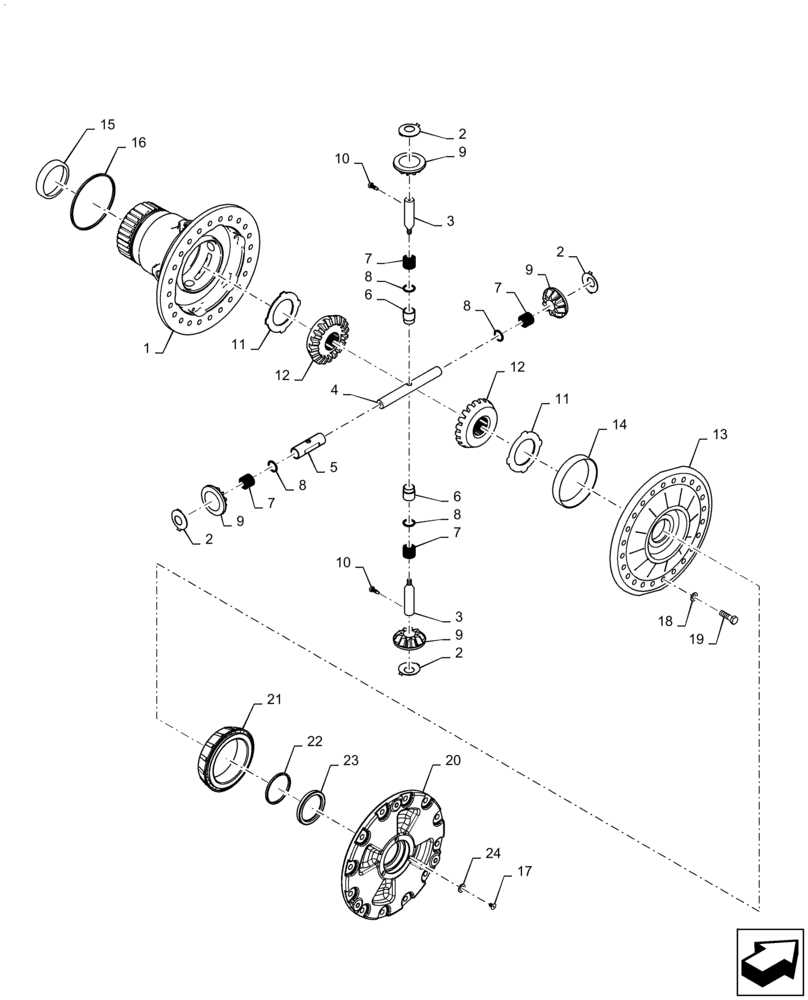

Схема запчастей Case IH QUADTRAC 500 - (27.106.AB[05]) - REAR AXLE DIFFERENTIAL, W/O DIFFERENTIAL LOCK (27) - REAR AXLE SYSTEM
7
8
11
6
7
21
6
22
2
2
9
12
15
7
10
2
8
24
23
7
10
13
4
14
5
8
20
11
8
9
12
17
3
9
16
9
2
3
19
1
18

Артикул

Название

Примечание

Количество

1

47650237

CARRIER

Differential Assembly, W / Plugs

1шт.

2

92718C2

THRUST WASHER,32.7mm ID x 70mm OD x 1.6mm Thk

Differential Pinion

4шт.

3

92906C1

SHORT SHAFT

Differential Pinion

2шт.

4

92907C1

SHAFT

Differential Pinion, Long

1шт.

5

1289349C1

SPACER

Pinion Needle, Long

1шт.

6

1289350C1

SPACER

Pionion Gear, Short

2шт.

7

1270697C1

NEEDLE BEARING

28 Per Pinion Gear

112шт.

8

1289348C1

RING

Needle Bearing, Thrust

4шт.

9

92905C1

PINION

Differential, Machined

4шт.

10

1997421C1

BOLT

Differential Cross Pin

2шт.

11

84321280

SHIM,95mm ID x 158mm OD x 4.91mm Thk

Differential Assembly

2шт.

12

1259633C3

GEAR

Differential Bevel, 20T

2шт.

13

84323114

COVER

Differential, Case W / O Lock

1шт.

14

253931A1

BEARING, CUP,179.99mm OD x 28.95mm W

1шт.

15

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

1шт.

16

148939C1

SEALING RING,OD 200.60 mm

Differential, Lock

1шт.

17

843-1812

SCREW,Flat, M8 x 12mm, Class 4.8

3шт.

18

47600651

WASHER,Flat, 17.00mm ID x 30.00mm OD x 2.00mm

24шт.

19

48137515

LOCK BOLT,Hex, M16 x 55mm, Cl 10.9, Full Thd

24шт.

20

369765A1

COVER

Differential

1шт.

21

253932A1

ROLLER BEARING,119.99mm ID x 37.98mm W

1шт.

22

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

Ring, Seal, Differential

1шт.

23

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

Oil

1шт.

24

95-81100

WASHER,33/64" x 7/8" x .049"

3шт.

Выбрано товаров: 24
