(21.155.AN[20]) - TRANSMISSION, 5TH SHAFT, PS4, 8.5C, 500, ASN ZFF308001

Запчасти Case IH QUADTRAC 500 (21.155.AN[20]) - TRANSMISSION, 5TH SHAFT, PS4, 8.5C, 500, ASN ZFF308001 (21) - TRANSMISSION

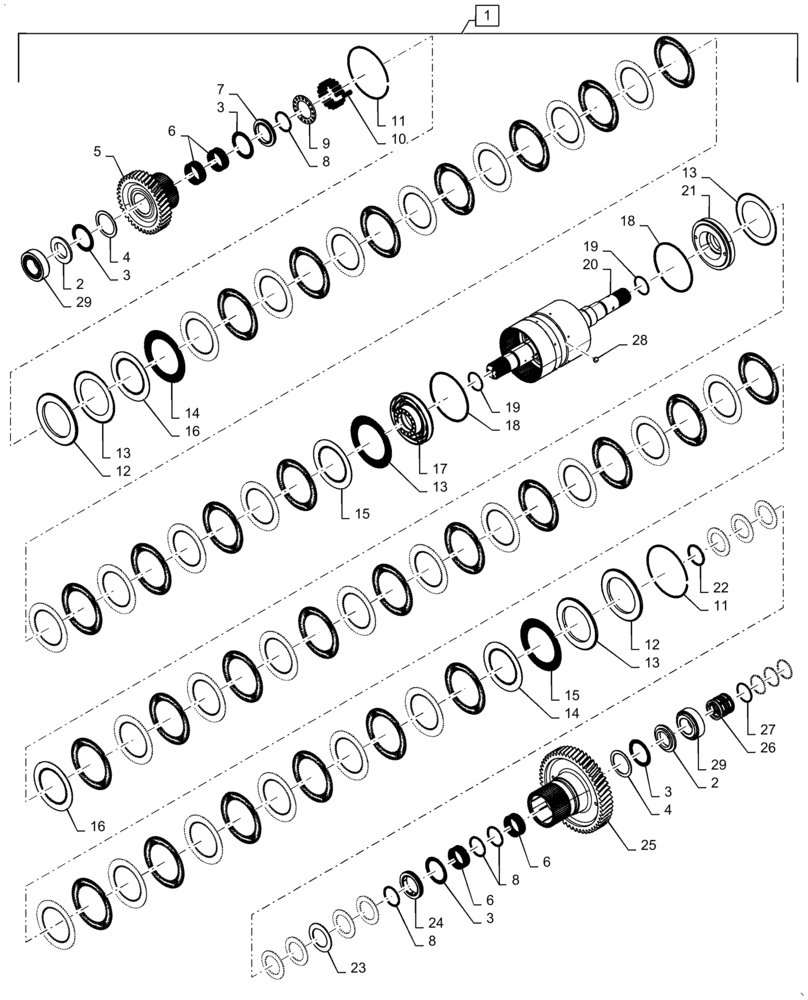

Схема запчастей Case IH QUADTRAC 500 - (21.155.AN[20]) - TRANSMISSION, 5TH SHAFT, PS4, 8.5C, 500, ASN ZFF308001 (21) - TRANSMISSION
22
15
10
2
3
15
4
29
3
14
18
8
1
8
8
6
3
26
3
13
5
12
11
19
27
2
13
7
28
19
14
17
18
20
6
24
25
23
21
6
29
13
11
16
4
9
12
16
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47582507

SHAFT

5th 8" Clutch, PS4 SR, Incl 2 - 29

1шт.

2

364831A1

THRUST WASHER

5th Shaft

2шт.

3

84314644

THRUST BEARING

5th Shaft

4шт.

4

358908A1

THRUST WASHER

5th Shaft

2шт.

5

87350355

DRIVEN GEAR

5R

1шт.

6

S5070S00F

BEARING, NEEDLE,76.2mm ID x 85.5mm OD x 31.5mm W

5th Shaft

4шт.

7

87350321

THRUST WASHER

5th Shaft

1шт.

8

S5040S00F

RING

Retaining

4шт.

9

362615A1

PLATE

Spring

1шт.

10

364833A1

SPRING

Return

16шт.

11

428108A1

RING, SNAP

Clutch

2шт.

12

370554A1

CLUTCH DISC

Plate, Clutch End

2шт.

13

370555A1

CLUTCH DISC

Plate, Clutch Faced

4шт.

14

370556A1

CLUTCH DISC

Plate, 8" Faced Clutch

28шт.

15

S4110S00F

CLUTCH DISC,2.1mm Thk

Steel, 2.1mm

18шт.

16

S4070S00F

CLUTCH DISC,2.4mm Thk

Steel, 2.4mm

12шт.

17

370558A1

PISTON

Clutch 8 RR

1шт.

18

87431400

RING

Drum, Retaining

2шт.

19

S4410S00F

RING

Seal

2шт.

20

47582510

SHAFT

5th Drum

1шт.

21

370562A1

PISTON

Clutch 8FR

1шт.

22

362611A1

SPACER

Needle Bearing

1шт.

23

364826A1

PLATE

Spring

8шт.

24

47582423

WASHER

Thrust

1шт.

25

87350374

DRIVEN GEAR

5F

1шт.

26

370568A1

CARRIER

Piston, Ring

1шт.

27

S4150S00F

RING

Seal

4шт.

28

87672304

BALL

.156" GR

2шт.

29

84314690

ROLLER BEARING

Tapered

2шт.
