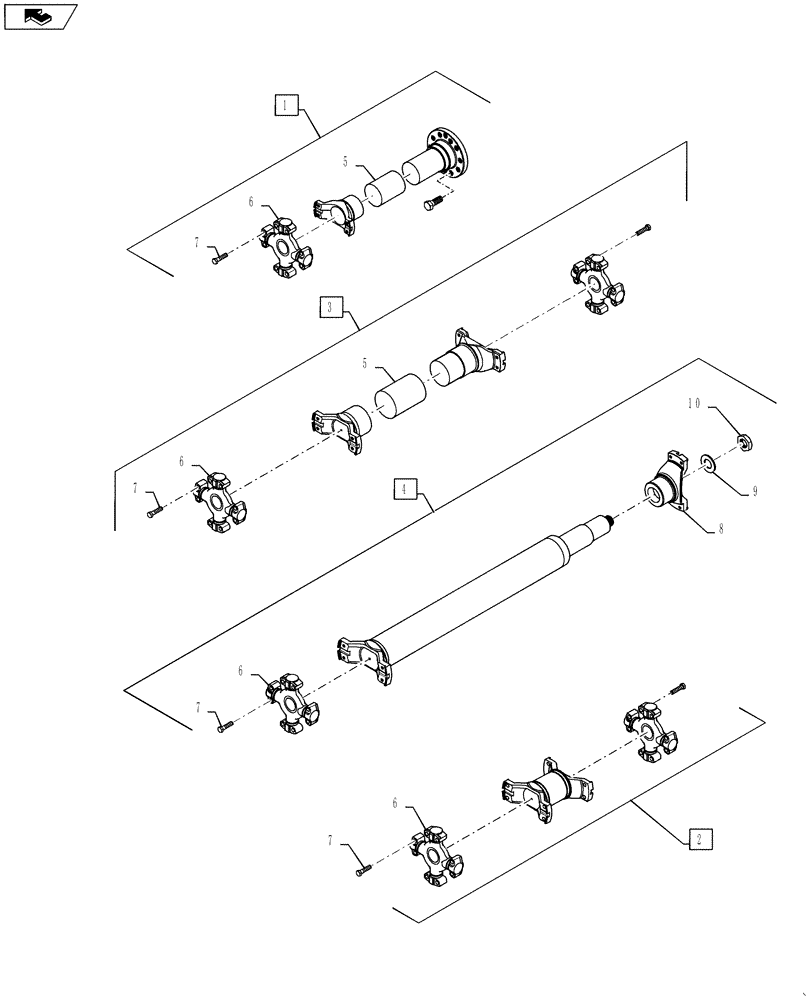

Запчасти Case IH QUADTRAC 500 (21.300.02[02]) - DRIVESHAFTS - WITH 8.5C TRANSMISSION - STEIGER 500 & QUADTRAC 450, 500 (21) - TRANSMISSION

1

87440503

DRIVE SHAFT

Engine, Incl 5 - 7

1шт.

2

402191A1

DRIVE SHAFT

Front Axle, Incl 6 - 7

1шт.

3

402192A1

DRIVE SHAFT

Articulation, Incl 5 - 7

1шт.

4

402193A1

DRIVE SHAFT

Rear Axle, Incl 6 - 10

1шт.

5

404151A1

SEAL,76.2mm ID x 93.98mm OD x 11.68mm Thk

Seal, Driveshaft Wiper

2шт.

6

309093A1

UNIVERSAL JOINT

6шт.

7

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

24шт.

8

407633A1

YOKE

UNIVERSAL JOINT YOKE

1шт.

9

396-11131

WASHER,1 5/16" x 2 1/2" x .150"

1шт.

10

131-487

LOCK NUT,1 1/4"-18

1шт.
