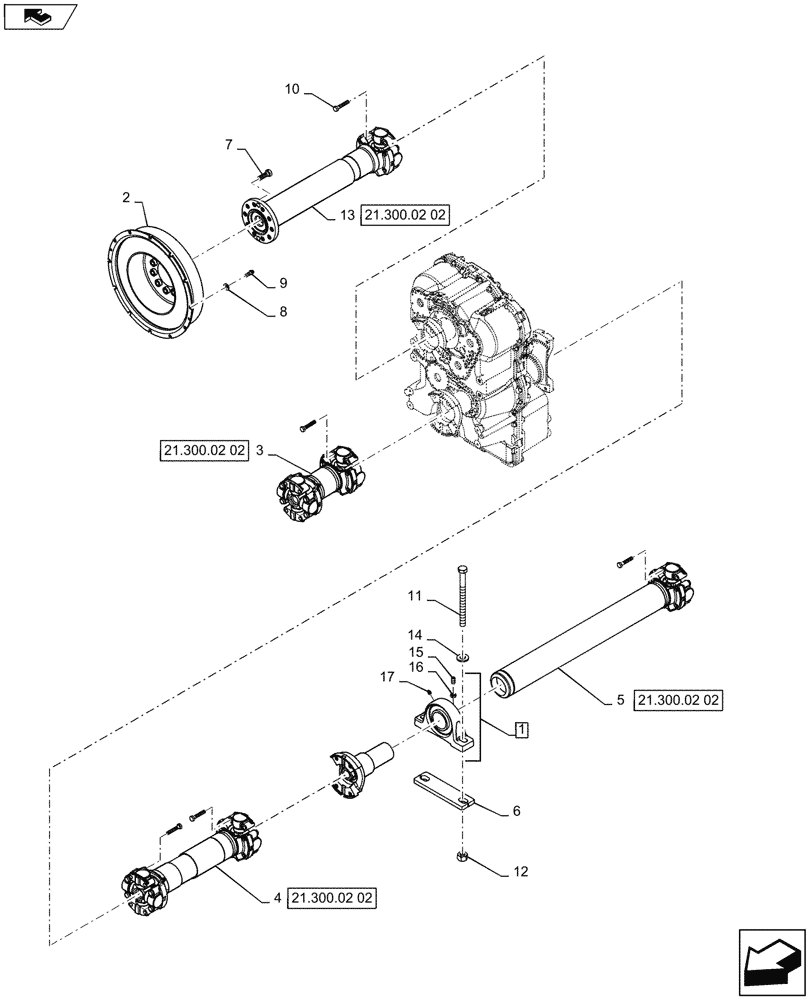

Запчасти Case IH QUADTRAC 500 (21.300.02[01]) - DRIVESHAFT MOUNTING - WITH 8.5C TRANSMISSION - STEIGER 500 & QUADTRAC 450, 500 (21) - TRANSMISSION

1

87385925

BEARING CARRIER,68.26mm ID

Pillow Block

1шт.

2

378758A2

DAMPER

Vibration

1шт.

3

402191A1

DRIVE SHAFT

Front Axle

1шт.

4

402192A1

DRIVE SHAFT

Articulation

1шт.

5

402193A1

DRIVE SHAFT

Rear Axle

1шт.

6

406056A1

SPACER

Pillow Block

1шт.

7

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

10шт.

8

86625244

WASHER,0.47" ID x 1" OD x 0.1" Thk

0.469X1X0.105 HTS ZND HDN

12шт.

9

47379836

12 PT SCREW

12 PT SCREW (Replaces 80-1716 This Application)

12шт.

10

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

24шт.

11

827-20250

BOLT,Hex, M20 x 2.5 x 250mm, Cl 10.9

2шт.

12

829-1420

NUT,M20, Cl 10

2шт.

13

87440503

DRIVE SHAFT

Engine

1шт.

14

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

2шт.

15

84-63812

SET SCREW,Hex Soc, 3/8"-24 x 3/4"

1шт.

16

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
