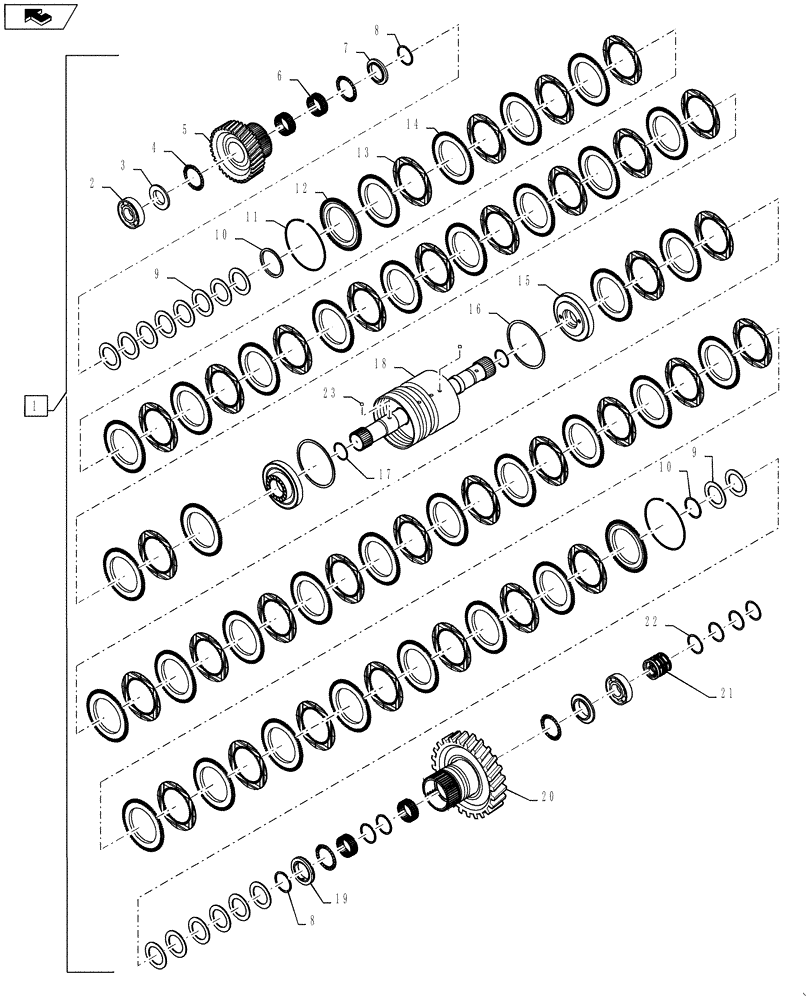

Запчасти Case IH QUADTRAC 500 (21.155.10) - POWER SHIFT TRANSMISSION - 5TH OUTPUT SHAFT, PS6, 9C (21) - TRANSMISSION

1

84314739

SHAFT

5th, 9 Clutch, Incl 2 - 23

1шт.

2

84314690

ROLLER BEARING

Taper

2шт.

3

364831A1

THRUST WASHER

2шт.

4

84314710

THRUST BEARING

Needle

4шт.

5

84314741

DRIVEN GEAR

5R

1шт.

6

S5070S00F

BEARING, NEEDLE,76.2mm ID x 85.5mm OD x 31.5mm W

4шт.

7

87350321

THRUST WASHER

1шт.

8

S5040S00F

RING

Retaining

4шт.

9

364826A1

PLATE

Spring

18шт.

10

362611A1

SPACER

Needle Bearing

2шт.

11

359235A1

RING, SNAP

2шт.

12

84314733

CLUTCH PLATE

Clutch End

2шт.

13

362618A1

CLUTCH DISC

Faced

33шт.

14

362628A1

CLUTCH DISC

Steel, 2.40mm

33шт.

14

362629A1

CLUTCH DISC

Steel, 2.60mm

33шт.

15

364825A1

PISTON

9 Clutch FR

2шт.

16

87431400

RING

D-Ring

2шт.

17

S4410S00F

RING

Seal

2шт.

18

84314746

SHAFT

Drum Assy, 5th

1шт.

19

87350331

THRUST WASHER

1шт.

20

84314749

DRIVEN GEAR

5F

1шт.

21

84314750

PISTON

Carrier

1шт.

22

S5510S00F

RING

Seal

4шт.

23

S14701960

BALL,3.968mm OD

Steel

2шт.
