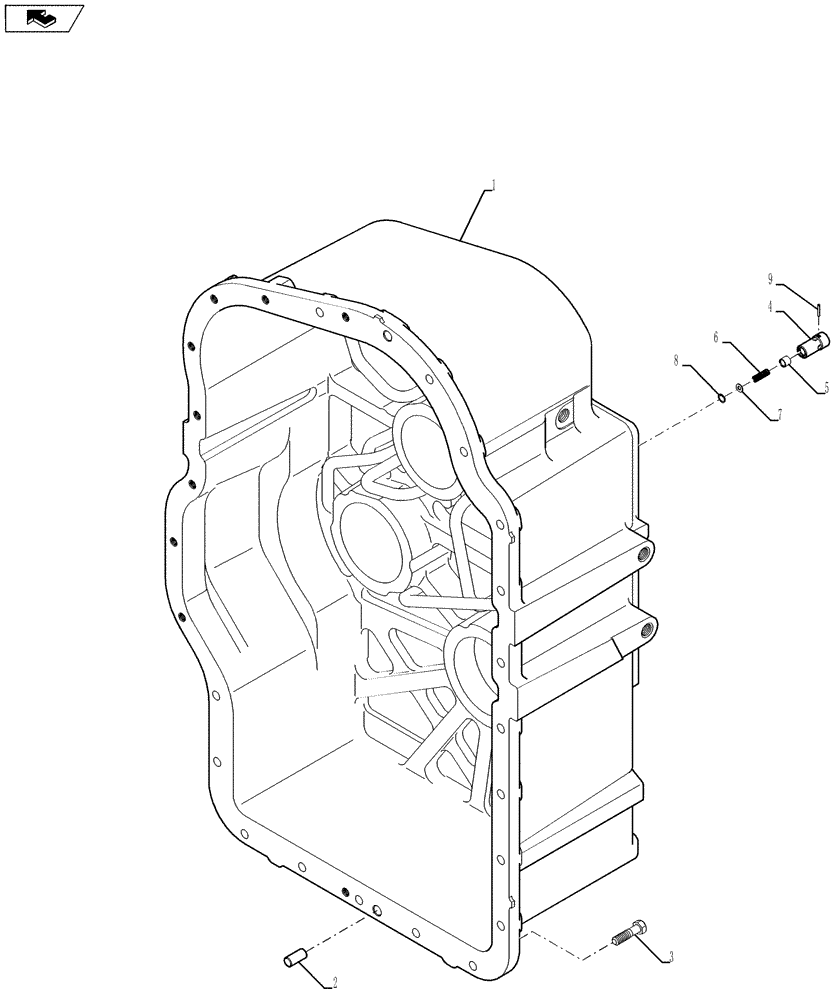

Запчасти Case IH QUADTRAC 500 (21.113.04) - POWER SHIFT TRANSMISSION - FRONT HOUSING (21) - TRANSMISSION

1

87350479

HOUSING

Front, PS4, 8C And 8.5C

1шт.

1

84315283

HOUSING

Front, PS6, 9C

1шт.

2

427530A1

DOWEL,14mm OD x 31mm L

Pin

2шт.

3

514-831

BOLT,Hex, M12 x 1.25 x 45mm, Cl 8.8, Full Thd

25шт.

4

84315303

CAP

Control, Pressure

4шт.

5

370544A1

SPOOL

Control, Drain

4шт.

6

370543A1

SPRING

Valve Check

4шт.

7

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

4шт.

8

800-2112

SNAP RING,M12, Int

4шт.

9

838-1318

LOCK PIN,3mm OD x 10mm L, Slotted

4шт.
