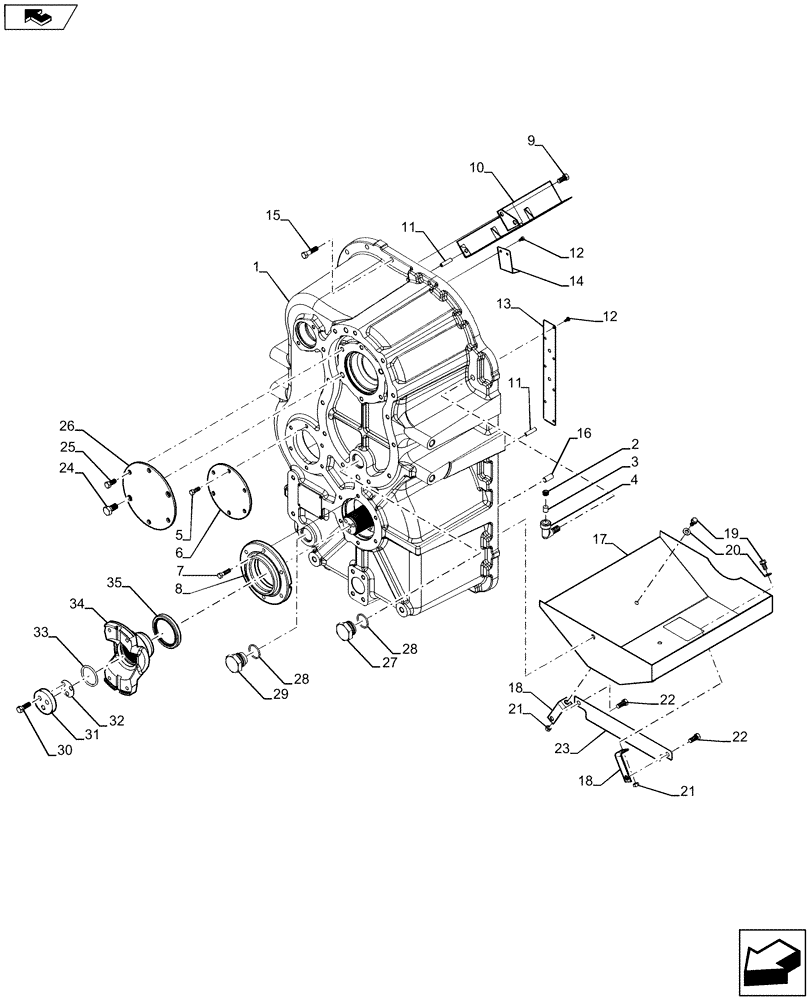

Запчасти Case IH QUADTRAC 500 (21.113.03) - POWER SHIFT TRANSMISSION - REAR HOUSING, YOKES, AND RETAINERS, PS6, 9C (21) - TRANSMISSION

1

84315257

HOUSING

Rear

1шт.

2

428156A1

PLUG

Taper

1шт.

3

427524A1

BREATHER

Filter

1шт.

4

370632A1

TUBE

Breather

1шт.

5

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

6

87350468

COVER

Rear 4th

1шт.

7

514-730

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

6шт.

8

87350470

RETAINER

Rear Output

1шт.

9

514-842

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

10

87350473

GUTTER

Input

1шт.

11

838-51040

LOCK PIN,M10 x 40, Slotted

Roll

2шт.

12

614-6014

BOLT,Hex, M6 x 1 x 14mm, Cl 8.8, Full Thd

9шт.

13

370635A2

BAFFLE

Breather

1шт.

14

370634A1

TROUGH

Gutter Assy, 2/3 RR

1шт.

15

514-831

BOLT,Hex, M12 x 1.25 x 45mm, Cl 8.8, Full Thd

27шт.

16

427530A1

DOWEL,14mm OD x 31mm L

Pin

2шт.

17

84315299

BAFFLE

Oil

1шт.

18

427545A1

STRAP

Oil Baffle

2шт.

19

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

21

825-11410

NUT,M10 x 1.25, Cl 8

2шт.

22

514-842

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

23

84315301

BAFFLE

Oil

1шт.

24

427559A1

BOLT

Hex

2шт.

25

514-842

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

26

427558A1

COVER

PTO

1шт.

27

303493A1

PLUG,Hex Soc, M42 x 2, ORB

W/ O-Ring

1шт.

28

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

2шт.

29

375456A1

PLUG, DRAIN

Magnetic

1шт.

30

514-853

BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9, Full Thd

6шт.

31

427515A1

RETAINING PLATE

Washer

2шт.

32

427517A1

SHIM,0.1mm Thk

1шт.

32

427519A1

SHIM,0.3mm Thk

1шт.

33

428165A1

O-RING

2шт.

34

84315317

YOKE

9C Output

1шт.

35

84315358

OIL SEAL

30.0mm ID x 34.0mm OD

1шт.
