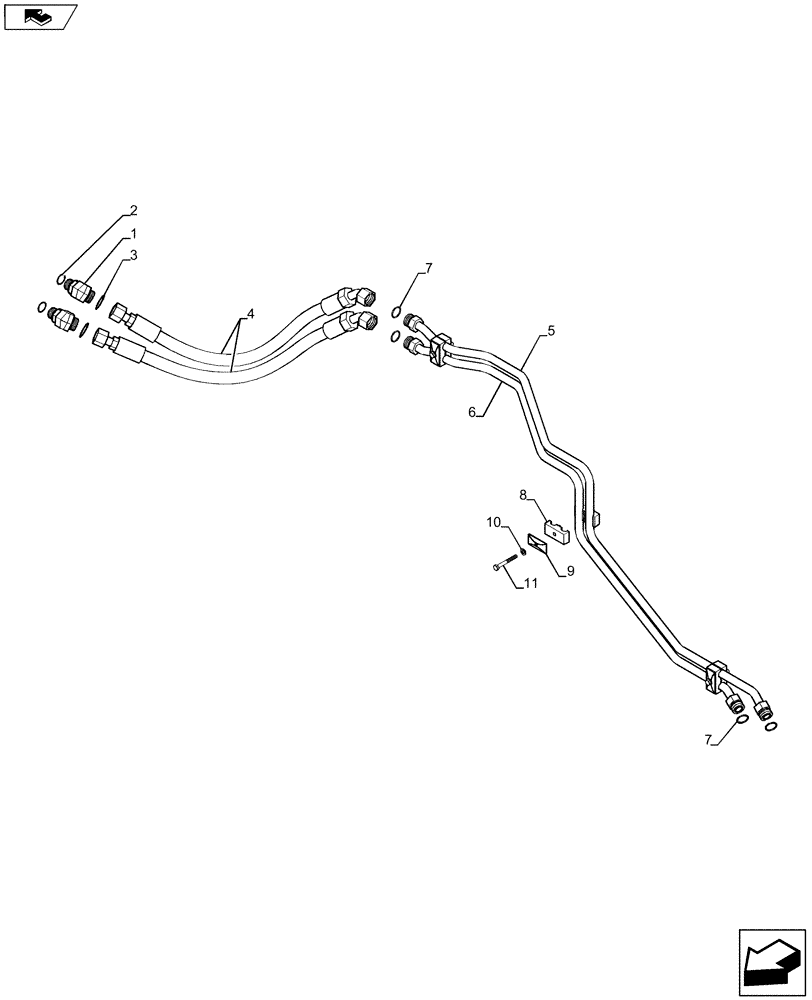

Запчасти Case IH QUADTRAC 500 (21.109.02) - TRANSMISSION TO COOLER LINES (21) - TRANSMISSION

1

700-387

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 2 - 3

2шт.

2

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

4

84244557

HOSE ASSY.,19.05mm ID x 718mm L, SAE 100R1

Transmission Cooler, PS4, 8C & 8.5C

2шт.

4

84244561

HOSE ASSY.,19.05mm ID x 636mm L, SAE 100R1

Transmission Cooler, PS6, 9C

2шт.

5

84293545

HYD TUBE

Transmission Oil Cooler Supply

1шт.

6

84293547

HYD TUBE

Transmission Oil Cooler Return

1шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

8

50-2551T1

CLAMP

Tube

6шт.

9

50-2533T1

PLATE

Cover

3шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

11

827-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

3шт.
