Запчасти Case IH QUADTRAC 500 (10.500.02[02]) - SCR TANK & PLUMBING - QUADTRAC - ASN ZBF126279 (10) - ENGINE

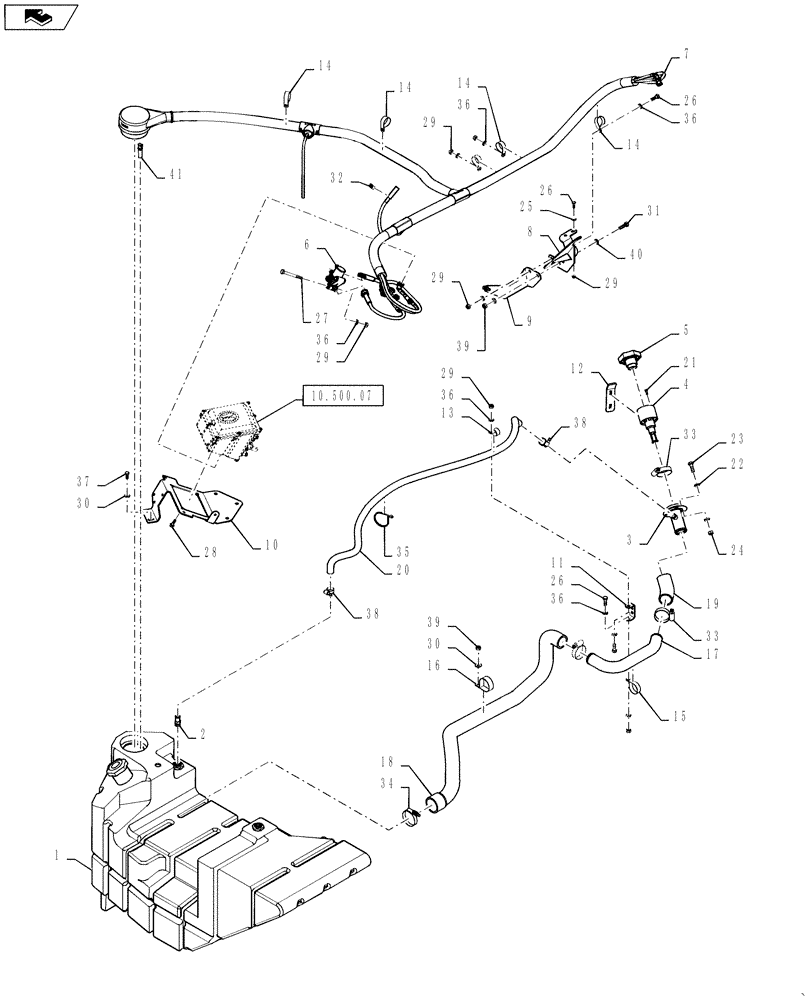

Схема запчастей Case IH QUADTRAC 500 - (10.500.02[02]) - SCR TANK & PLUMBING - QUADTRAC - ASN ZBF126279 (10) - ENGINE
30
14
39
39
18
9
16
22
14
41
35
20
31
8
26
26
7
23
11
29
29
2
36
33
36
32
33
14
10
29
29
6
38
1
24
10.500.07
34
36
home
30
37
25
3
4
38
5
26
36
27
36
29
14
28
15
21
19
13
12
17
40

Артикул

Название

Примечание

Количество

1

84367421

TANK

Urea - 245 L

1шт.

2

84281937

FITTING

Plastic Nipple

1шт.

3

84425045

FILLER

1шт.

4

87483158

NECK FILLER

Neck

1шт.

5

84206552

FILLER CAP,Male

Urea Tank

1шт.

6

84151635

HEATER VALVE

24 VDC

1шт.

7

84346279

HOSE ASSY.

DEF Bundle, Seals NSS

1шт.

8

84478426

BRACKET, SUPPORTING

DEF Line Support

1шт.

9

84477770

BRACKET, SUPPORTING

DEF Line Support

1шт.

10

84328027

BRACKET, SUPPORTING

SCR

1шт.

11

84425052

BRACKET

DEF Fill Support

1шт.

12

84425077

BRACKET

DEF LH Fill Lock

1шт.

13

515-23302

CLAMP,1 3/16", Insul, 3/8" Bolt

1шт.

14

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

8шт.

15

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

16

515-25635

CLAMP,2 1/2", Insul, 1/2" Bolt

3шт.

17

84425053

TUBE

Urea Fill

1шт.

18

84425048

FLEXIBLE HOSE

DEF Fill

1шт.

19

84425049

FLEXIBLE HOSE

DEF Fill

1шт.

20

84425050

HOSE

Hose, Heater, DEF Tank Fill Vent

1шт.

21

84246766

HEX SOC SCREW,M4 x 12mm, SST

M4 x 12mm

4шт.

22

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

23

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

3шт.

24

829-1406

NUT,Hex, M6 x 1, Cl 10.9

3шт.

25

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

26

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

27

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

3шт.

28

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

4шт.

29

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

13шт.

30

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

31

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

32

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

33

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

3шт.

34

L115549

CLAMP,69.85mm - 92.08mm

Hose

1шт.

35

L18331

CABLE TIE,375.9mm L, Nylon, Black

15"

2шт.

36

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

20шт.

37

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

5шт.

38

214-1712

HOSE CLAMP,17.53mm - 31.75mm

4шт.

39

829-1410

NUT,M10 x 1.5, Cl 10.9

7шт.

40

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

41

84208502

PLUG,10mm OD x 42.4mm L

Vent Hole

1шт.

Выбрано товаров: 41
