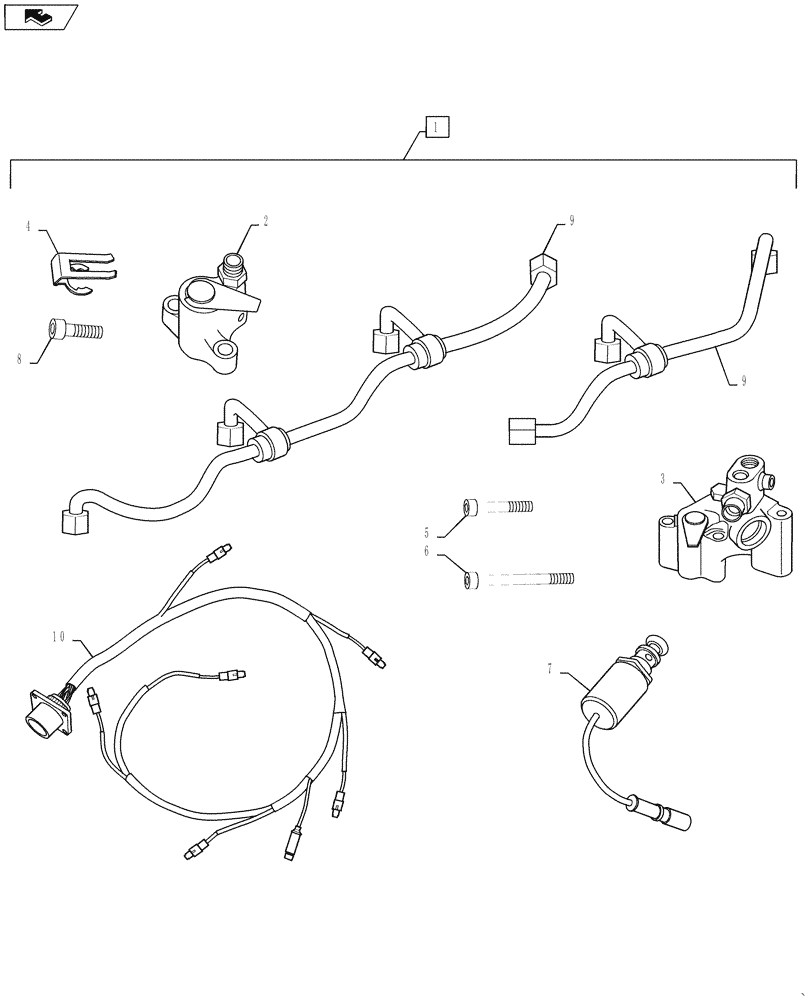

Запчасти Case IH QUADTRAC 500 (88.010.03) - DIA KIT - ENGINE BRAKE - CURSOR 13, SINGLE STAGE (88) - ACCESSORIES

1

84391184

SERVICE KIT

Engine Brake - Cursor 13, Single Stage, Incl 2 - 11

1шт.

2

504222834

BRAKE

Engine, Actuator Cylinder

5шт.

3

504222833

BRAKE

Engine, Actuator Cylinder

1шт.

4

500376911

SPRING

Reaction

6шт.

5

16691324

HEX SOC SCREW,M8 x 60mm

Countersunk, Hex, Flat Head

2шт.

6

16691724

BOLT

Countersunk, Hex, Flat Head

1шт.

7

504305972

ELECTRO-VALVE

Solenoid

1шт.

8

16707334

BOLT,M8 x 30mm, Cl 10.9

M8 x 30

10шт.

9

500308827

TUBE

2 Sections

1шт.

10

504318394

WIRE HARNESS

1шт.

11

500309014

GASKET

Valve Cover (Not Shown)

1шт.
