Запчасти Case IH QUADTRAC 500 (48.138.04) - KIT - ROLLER & IDLER SEAL (48) - TRACKS & TRACK SUSPENSION

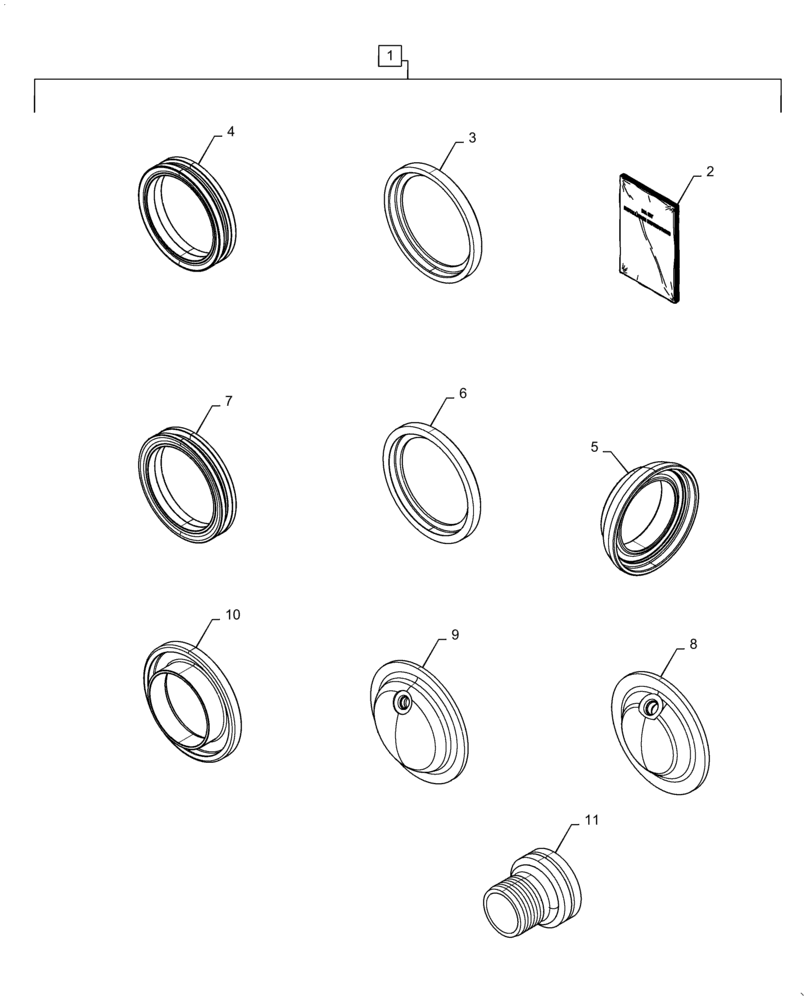

Схема запчастей Case IH QUADTRAC 500 - (48.138.04) - KIT - ROLLER & IDLER SEAL (48) - TRACKS & TRACK SUSPENSION
8
4
5
6
11
7
2
10
3
1
9

Артикул

Название

Примечание

Количество

1

87403698

SEAL KIT

Roller & Idler, Incl 2 - 7, Refer To 48.138.03

1шт.

1

444213A1

SEAL KIT

Roller & Idler, Incl 2 - 11, Refer To 48.138.03

1шт.

2

6-12501

INSTRUCTION

, Years: -08-AUG-12

1шт.

3

86993622

CUP,83mm ID x 105.09mm OD x 10.1mm Thk

Seal Roller Hub

24шт.

4

87450020

SEAL

Roller

24шт.

5

86992784

CUP,65.82mm ID x 102.25mm OD x 29mm Thk

Roller Shaft

24шт.

6

87402781

CUP,98mm ID x 130.07mm OD x 11.44mm Thk

Seal Idler Hub

16шт.

7

87450019

SEAL

Idler

16шт.

8

87404689

CAP

Roller Hub

24шт.

9

87408174

CAP

Idler Hub

16шт.

10

432008A3

SEAL,79.88mm ID x 127mm OD x 24.99mm Thk

Idler

16шт.

11

246406A1

PLUG,M12 x 1.5 ORB

40шт.

11

86598043

PLUG,M12 x 1.5 ORB

40шт.

Выбрано товаров: 13
