Запчасти Case IH QUADTRAC 500 (48.138.02) - TRACK ROLLER WHEEL SHAFTS AND MOUNT BEAM (48) - TRACKS & TRACK SUSPENSION

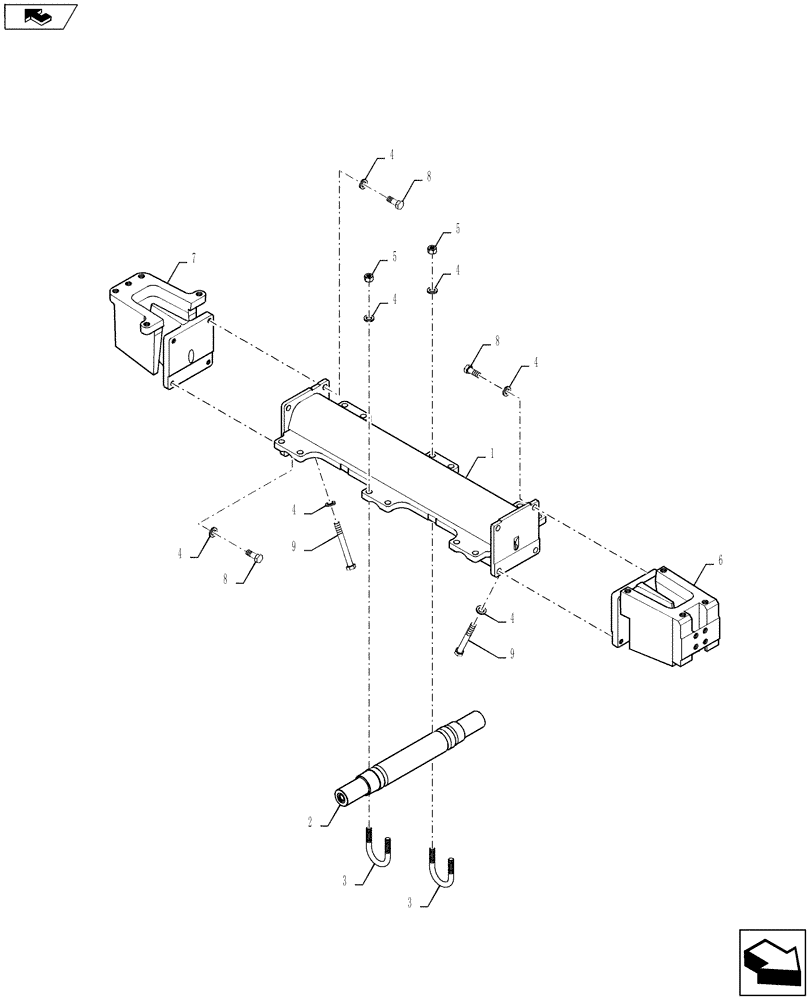

Схема запчастей Case IH QUADTRAC 500 - (48.138.02) - TRACK ROLLER WHEEL SHAFTS AND MOUNT BEAM (48) - TRACKS & TRACK SUSPENSION
home
5
4
4
7
1
9
8
8
5
8
9
6
4
4
3
4
2
4
3
4

Артикул

Название

Примечание

Количество

1

408786A1

BEAM

Roller Wheel Mount

1шт.

2

84222576

ROLLER SHAFT

AG & Scraper

3шт.

3

231765A1

U-BOLT,M16 x 2 x 30mm Threaded, x 80.2mm W

M16X2-6G

6шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

22шт.

5

832-46416

NUT,M16 x 2, Cl 8

12шт.

6

389763A1

SUSPENSION

Front

1шт.

6

389763A1R

SUSPENSION

Mount, Front. Remanufactured

1шт.

6

389763A1C

SUSPENSION

Return Number

1шт.

7

389761A1

SUSPENSION

Rear

1шт.

7

389761A1R

SUSPENSION

Mount, Rear. Remanufactured

1шт.

7

389761A1C

SUSPENSION

Return Number

1шт.

8

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

8шт.

9

827-16140

BOLT,Hex, M16 x 2 x 140mm, Cl 10.9

2шт.

Выбрано товаров: 13
