(48.138.01) - TRACK UNDERCARRIAGE AND ROLLERS

Запчасти Case IH QUADTRAC 500 (48.138.01) - TRACK UNDERCARRIAGE AND ROLLERS (48) - TRACKS & TRACK SUSPENSION

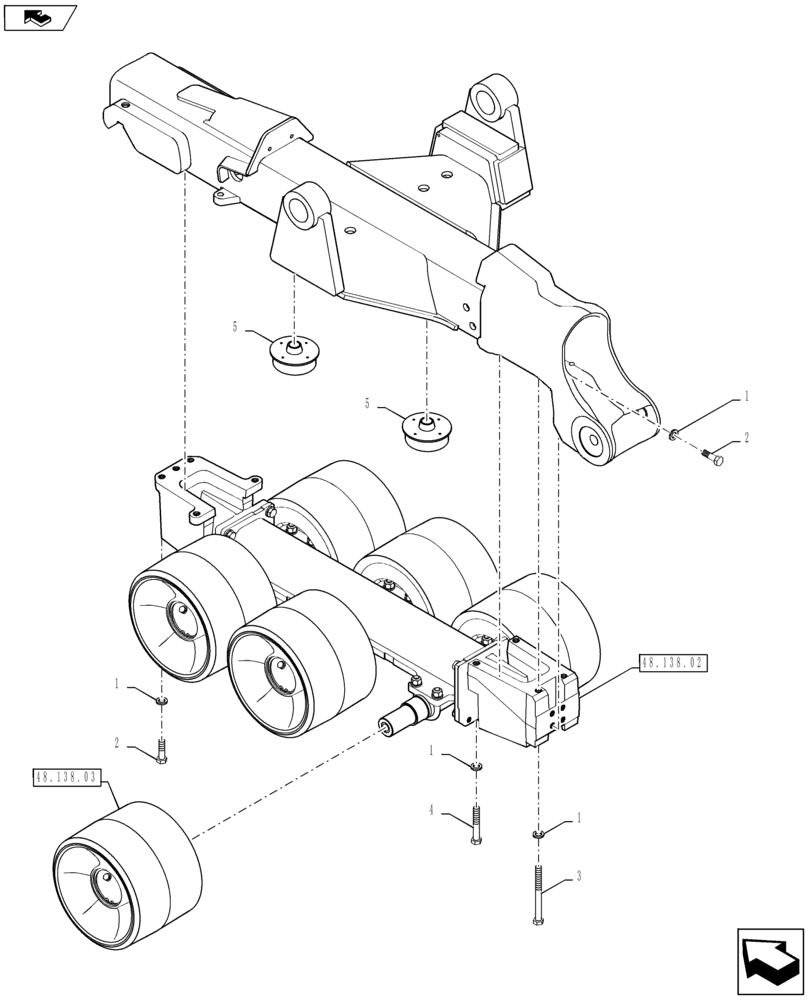

Схема запчастей Case IH QUADTRAC 500 - (48.138.01) - TRACK UNDERCARRIAGE AND ROLLERS (48) - TRACKS & TRACK SUSPENSION
5
2
48.138.03
48.138.02
1
home
3
5
4
1
2
1
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

13шт.

2

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

9шт.

3

827-16180

BOLT,Hex, M16 x 2 x 180mm, Cl 10.9

2шт.

4

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

5

87669420

STOP,150mm OD x 68mm L

Scraper Units Only

2шт.

Выбрано товаров: 0
