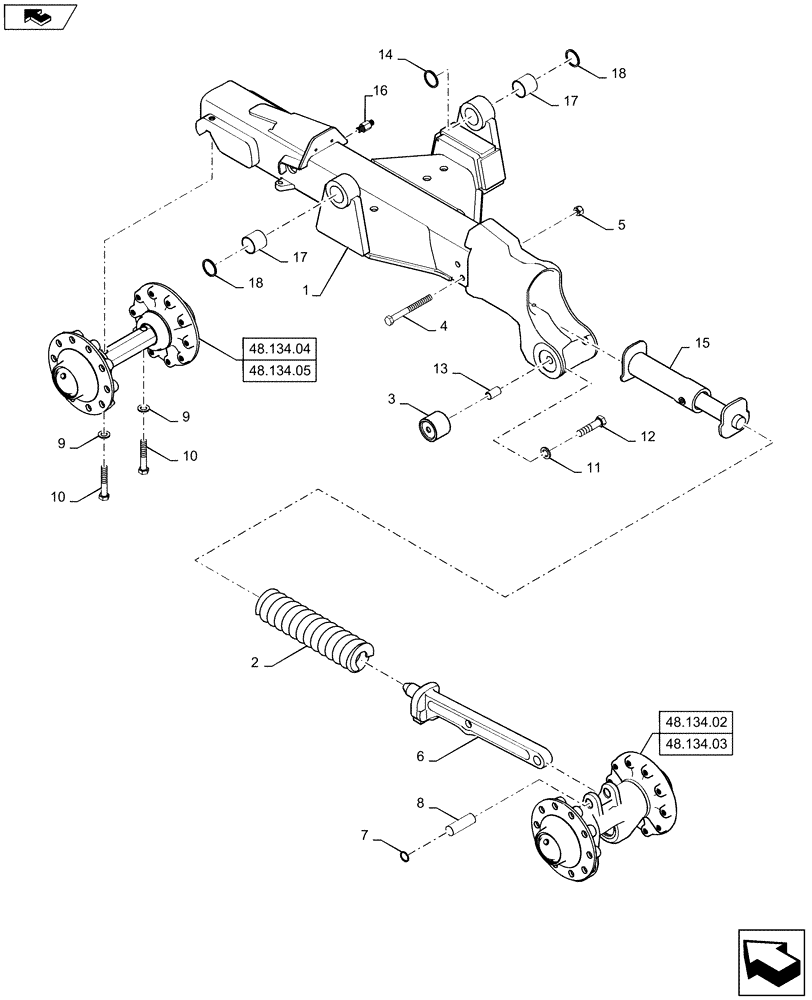

Запчасти Case IH QUADTRAC 500 (48.134.01) - TRACK TENSIONERS AND UNDERCARRIAGE MOUNT (48) - TRACKS & TRACK SUSPENSION

1

87326383

MOUNTING PARTS

Undercarriage

1шт.

2

255729A1

SPRING

Undercarriage

1шт.

3

87324220

IDLE SHAFT

Pivot

2шт.

4

827-20200

BOLT,Hex, M20 x 2.5 x 200mm, Cl 10.9

1шт.

5

832-46420

NUT,M20 x 2.5, Cl 8

1шт.

6

87436823

LINK ASSY.

Tension

1шт.

7

87038806

SNAP RING,M38, Internal

2шт.

8

329647A1

PIN,38.1mm OD x 113mm L

Idler, Front

1шт.

9

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

2шт.

10

827-22140

BOLT,Hex, M22 x 2.5 x 140mm, Cl 10.9

2шт.

11

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

2шт.

12

47534762

BOLT,Hex, M24 x 3 x 95mm, Cl 10.9

2шт.

13

87585083

SPACER

Alignment

1шт.

14

87423203

SEAL

Undercarriage Oscillation

4шт.

15

87377667

SEAL KIT

For Hydraulic Cylinder

1шт.

15

87304299

HYDRAULIC CYLINDER,60mm Rod, 228mm Stroke

Tensioner

1шт.

15

87304299R

REMAN-HYD CYLINDER

QUADTRAC® 450, QUADTRAC® 500, QUADTRAC® 550, QUADTRAC® 600, All 4WD TRACTOR, Tensioner (4/11-)

1шт.

15

87304299C

CORE-HYD CYLINDER

Return Number

1шт.

16

87735260

CHECK VALVE,10mm ORFS x M18 x 1.5 ORB

Ag Version

1шт.

16

87664542

CHECK VALVE

Scraper Version

1шт.

17

87423204

BUSHING,57.25mm ID x 69.97mm OD x 47mm L

Undercarriage Oscillation

2шт.

18

87423203

SEAL

Undercarriage Oscillation

4шт.
