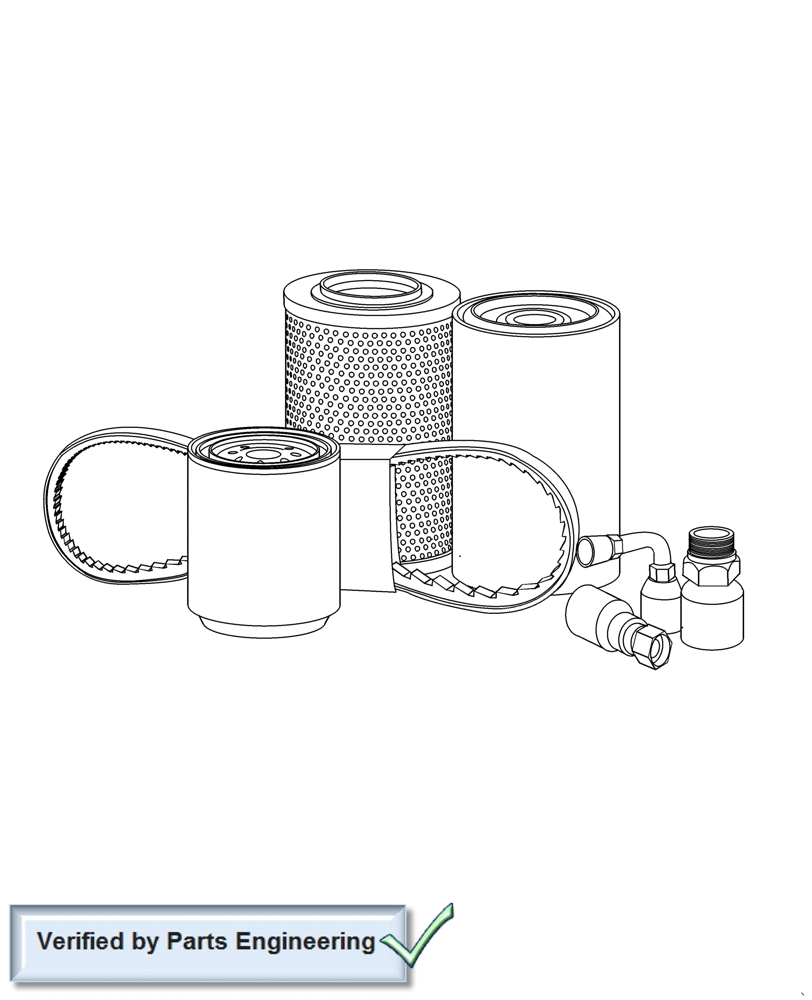

Запчасти Case IH QUADTRAC 500 (05.100.03[04]) - FILTERS & CAPACITIES, QUADTRAC 500 TIER 4A (05) - SERVICE & MAINTENANCE

*

REF

INSTRUCTION

Antifreeze, Engine Coolant Drain And Flush, Case IH ES COMPLEAT, 18.4 Gal (70 L)

1шт.

1

5801592277

FILTER

Oil Filter

1шт.

*

REF

INSTRUCTION

Oil, Engine Crankcase, Case IH Akcela Unitek CJ-4, 7.2 Gal (27.25 L)

1шт.

2

87356545

AIR FILTER

Primary, 2 Required

1шт.

3

87356547

AIR FILTER

Secondary, 2 Required

1шт.

4

504209107

AIR FILTER

Engine Breather

1шт.

5

87684088

CAB FILTER,CAB

Cab

1шт.

6

87408613

INSULATION

Cab Recirculated Air

1шт.

7

87409377

FILTER

Cab Recirculation

1шт.

8

84211797

AIR FILTER

HVAC Intake, Cab Roof

1шт.

9

84196445

HYDRAULIC OIL FILTER

Spin On, 1 Required for Standard Flow, 2 Required for High Flow

1шт.

10

1971726C1

BREATHER,1/4" - 18

Hydraulic Oil Tank

1шт.

*

REF

INSTRUCTION

Hydraulic Oil, Case IH Akcela NEXPLORE, 83 Gal (314 L)

1шт.

If Three Point HItch Equipped, Add 5 Gal (19 L)

1шт.

*

REF

INSTRUCTION

Idler Hub (Each) - Agricultural Version, SAE 50W TO 4 Oil, 20 oz (600 ML)

1шт.

*

REF

INSTRUCTION

Idler Hub (Each) - Scraper Version, SAE 30W Engine Oil, 16.2 oz (480 ML)

1шт.

*

REF

INSTRUCTION

Roller Hub (Each), SAE 30W Engine Oil, 8 oz (250 ML)

1шт.

11

47833556

HYDRAULIC OIL FILTER,98.8mm OD x 239.8mm L x 500 Microns

Transmission Lube Filter

1шт.

*

REF

INSTRUCTION

Transmission Oil, Standard Version, Case IH Akcela HY-TRAN Ultra, 16.6 Gal (63 L)

1шт.

*

REF

INSTRUCTION

Transmission Oil, Scraper Version, Case IH Akcela HY-TRAN Ultra, 18 Gal (68 L)

1шт.

12

84412494

BREATHER

Fuel Tank

1шт.

13

84303715

FUEL FILTER

w/Water Separator, Frame Mounted

1шт.

14

84597068

FUEL FILTER

Engine Mounted

1шт.

15

84247272

FILTER,In-Line

DENOX2 Supply Inlet

1шт.

16

84254852

FILTER

DENOX2 Module, Incl Element, O-Ring, and Drain Screw

1шт.

17

84367903

FILTER

DEF Inline

1шт.

*

REF

INSTRUCTION

Grease, Chassis Lube, Akcela Multi-Purpose 251H EP, As Required

1шт.
