Запчасти Case IH QUADTRAC 500 (39.100.10[01]) - FUEL TANK CAP AND BREATHER - NORTH AMERICA, ASN ZBF126024 (39) - FRAMES AND BALLASTING

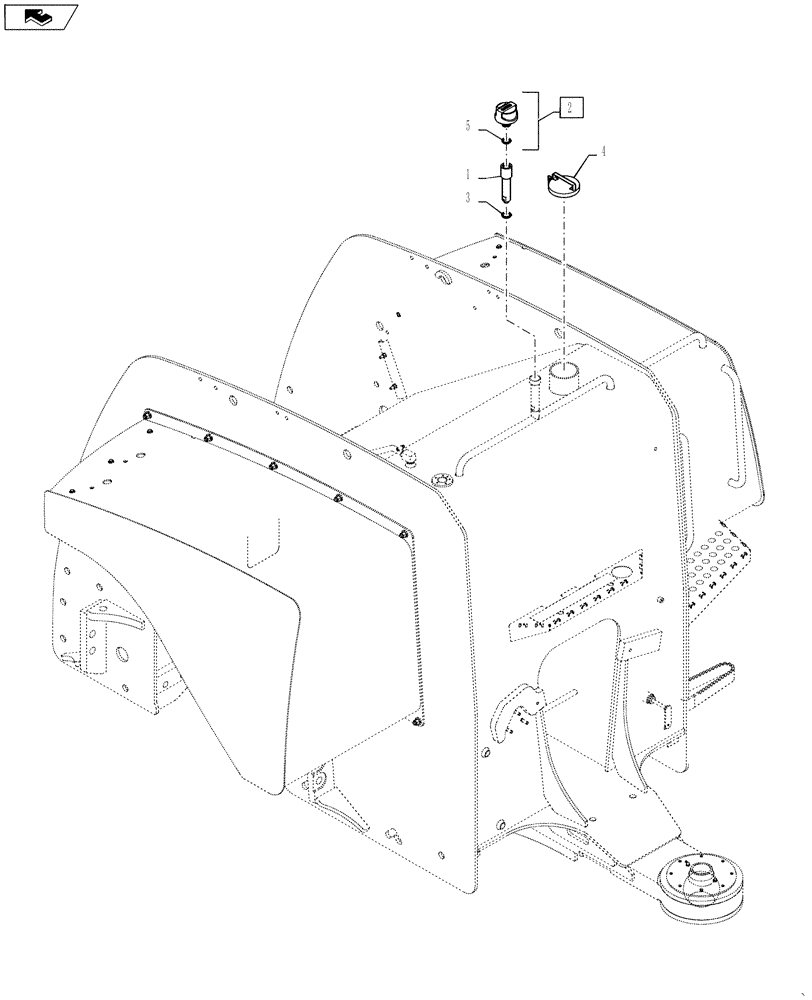

Схема запчастей Case IH QUADTRAC 500 - (39.100.10[01]) - FUEL TANK CAP AND BREATHER - NORTH AMERICA, ASN ZBF126024 (39) - FRAMES AND BALLASTING
2
1
3
4
5
home

Артикул

Название

Примечание

Количество

1

84410313

VENTING SCREW

Fuel Tank Breather Boss

1шт.

2

84412494

BREATHER

Incl 5

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

87555106

LOCKABLE FUEL CAP

1шт.

5

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Выбрано товаров: 5
