Запчасти Case IH QUADTRAC 500 (37.100.04) - DRAWBAR - CATEGORY 5, WITH THREE POINT HITCH (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

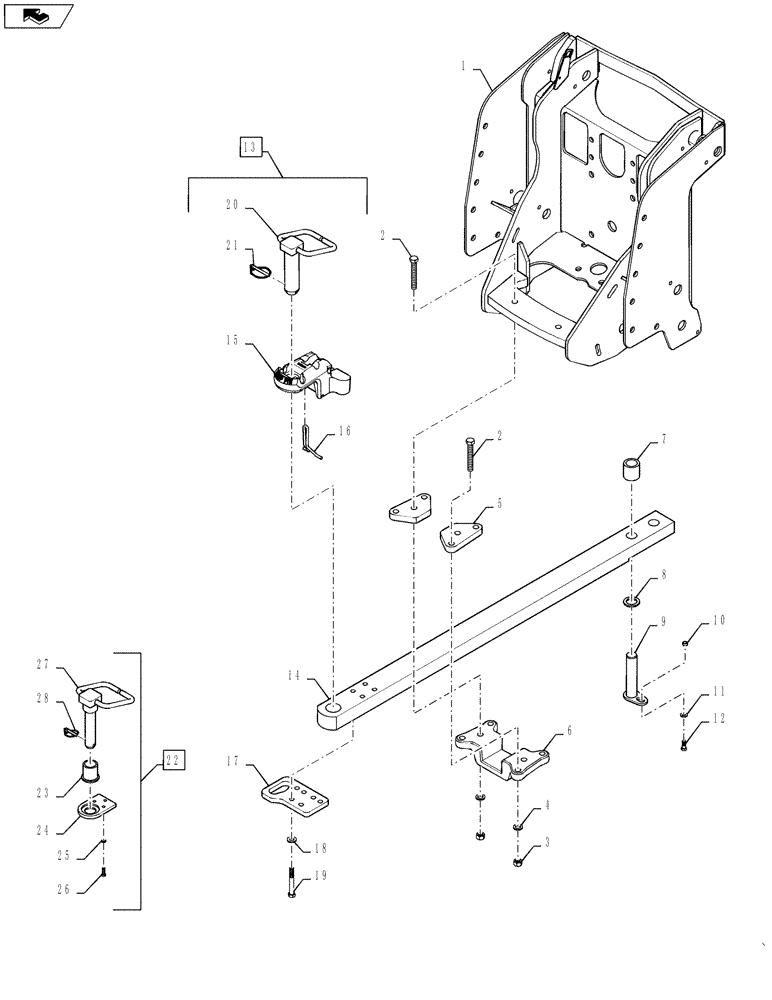

Схема запчастей Case IH QUADTRAC 500 - (37.100.04) - DRAWBAR - CATEGORY 5, WITH THREE POINT HITCH (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
22
25
6
9
24
4
2
14
home
23
18
13
5
12
26
7
3
20
21
19
2
1
8
10
11
17
28
16
27
15

Артикул

Название

Примечание

Количество

1

84284081

3 POINT HITCH

Mount

1шт.

2

827-24160

BOLT,Hex, M24 x 3 x 160mm, Cl 10.9

6шт.

3

829-1424

NUT,M24, Cl 10

6шт.

4

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

12шт.

5

84354262

PLATE

Drawbar Support

2шт.

6

84354264

SUPPORT

Hammerstrap

1шт.

7

87524463

SPACER,54mm ID x 76.2mm OD x 76mm L

Drawbar

1шт.

8

87317191

WASHER,51.56mm ID x 76.3mm OD x 6.35mm Thk

2.019 X 3.003 X .25 IN HDN ZND

1шт.

9

87524404

PIN,50.65mm OD x 252mm L

Flag

1шт.

10

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

22mm OD x 17mm ID x 11

1шт.

11

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

1шт.

12

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

1шт.

13

84316418

DRAWBAR

Category 5, Incl 14 - 21, Serial Range: -ZCF130622

1шт.

13

47411243

DRAWBAR

Category 5, Incl 14 - 21, Start Serial: ZCF130623

1шт.

14

84316416

DRAWBAR

Flat, Cat 5, Serial Range: -ZCF130622

1шт.

14

47416661

DRAWBAR

Flat, Cat 5, Start Serial: ZCF130623

1шт.

15

84316415

HITCH

Hammerstrap Assy, Cat 5

1шт.

16

84316413

PIN,11.13mm OD

Hitch, Trigger, Cat 5

1шт.

17

84316412

MOUNT

Safety Chain Plate

1шт.

18

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

6шт.

19

827-20150

BOLT,Hex, M20 x 2.5 x 150mm, Cl 10.9

6шт.

20

84316411

PIN

Hitch, Cat 5

1шт.

21

84316409

RETAINER

Click Pin

1шт.

22

84316408

KIT

Drawbar, Category 5 To Category 4, Incl 23 - 28, No Longer Available, Order Components, Serial Range: -ZCF130622

1шт.

Conversion Kit Not Available For SN ZCF130623-133048, For Tractors ASN ZCF133049 See Fig 37.100.08

1шт.

23

84316406

BUSHING,52.25mm ID x 85.75mm OD x 83mm L

Bushing, Cat 5 To Cat 4, Serial Range: -ZCF130622

1шт.

23

47411244

BUSHING,52.25mm ID x 85.25mm OD x 74.5mm L

Bushing, Cat 5 to Cat 4, Start Serial: ZCF130623

1шт.

24

84316407

CONVERTER

Plate, Cat 5 To Cat 4

1шт.

25

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

3шт.

26

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

3шт.

27

84316401

PIN

Hitch, Cat 5 To Cat 4

1шт.

28

87522067

LOCK PIN,11.5mm OD

Retaining

1шт.

Выбрано товаров: 32
