Запчасти Case IH QUADTRAC 500 (37.100.01) - DRAWBAR - STANDARD, WITHOUT THREE POINT HITCH (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

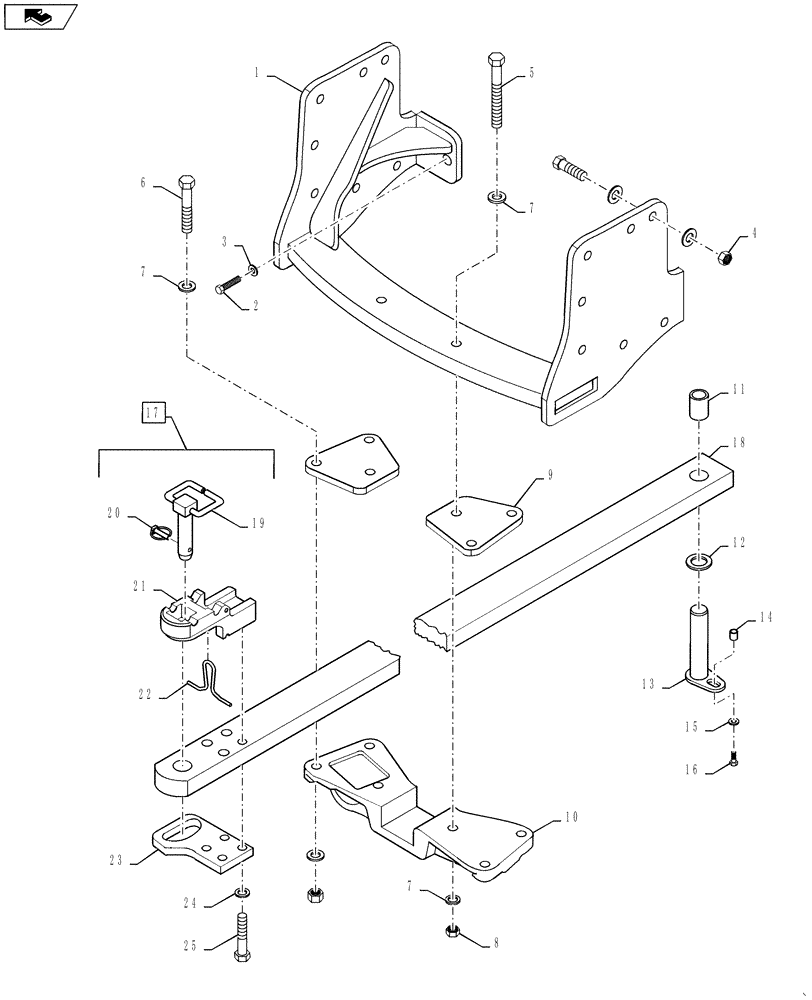

Схема запчастей Case IH QUADTRAC 500 - (37.100.01) - DRAWBAR - STANDARD, WITHOUT THREE POINT HITCH (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
8
20
7
1
3
home
6
18
16
9
12
15
7
22
2
24
7
17
10
25
11
13
19
21
5
23
4
14

Артикул

Название

Примечание

Количество

1

87323021

DRAWBAR

Drawbar

1шт.

1

87740181

HANGER

Drawbar, Steiger 600 & QuadTrac 600

1шт.

2

627-24070

BOLT,Hex, M24 x 3 x 70mm, Cl 10.9, Full Thd

14шт.

3

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

26шт.

4

829-1424

NUT,M24, Cl 10

12шт.

5

827-24210

BOLT,Hex, M24 x 3 x 210mm, Cl 10.9

Hex, M24 x 210, 10.9

2шт.

5

827-24190

BOLT,Hex, M24 x 3 x 190mm, Cl 10.9

Steiger 600 & QuadTrac 600

2шт.

6

827-24160

BOLT,Hex, M24 x 3 x 160mm, Cl 10.9

4шт.

6

827-24130

BOLT,Hex, M24 x 3 x 130mm, Cl 10.9

Steiger 600 & QuadTrac 600

4шт.

7

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

12шт.

8

829-1424

NUT,M24, Cl 10

6шт.

9

87498786

PLATE

Mounting, Not Used On Steiger 600 & QuadTrac 600

2шт.

10

87571551

STRAP

Hammer Strap Support

1шт.

11

87524463

SPACER,54mm ID x 76.2mm OD x 76mm L

1шт.

12

87317191

WASHER,51.56mm ID x 76.3mm OD x 6.35mm Thk

1шт.

13

87524404

PIN,50.65mm OD x 252mm L

1шт.

14

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

1шт.

15

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

1шт.

16

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

1шт.

17

87609236

DRAWBAR

Assembly, Heavy Duty, Wheeled, Incl 18 - 25

1шт.

17

87609238

DRAWBAR

Assembly, Heavy Duty, QuadTrac, Incl 18 - 25

1шт.

18

87564456

DRAWBAR

Heavy Duty, Wheeled

1шт.

18

87564460

DRAWBAR

Heavy Duty, QuadTrac

1шт.

19

87615032

PIN,50.93mm OD x 243.3mm L

1шт.

20

87522067

LOCK PIN,11.5mm OD

1шт.

21

87615031

STRAP

Hammerstrap Assy.

1шт.

22

375721A1

PIN

Drop Pin

1шт.

23

87574391

STEEL PLATE

Safety Chain

1шт.

24

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

4шт.

25

827-20140

BOLT,Hex, M20 x 2.5 x 140mm, Cl 10.9

4шт.

Выбрано товаров: 30
