Запчасти Case IH QUADTRAC 500 (35.962.03) - COOLER BYPASS VALVE (35) - HYDRAULIC SYSTEMS

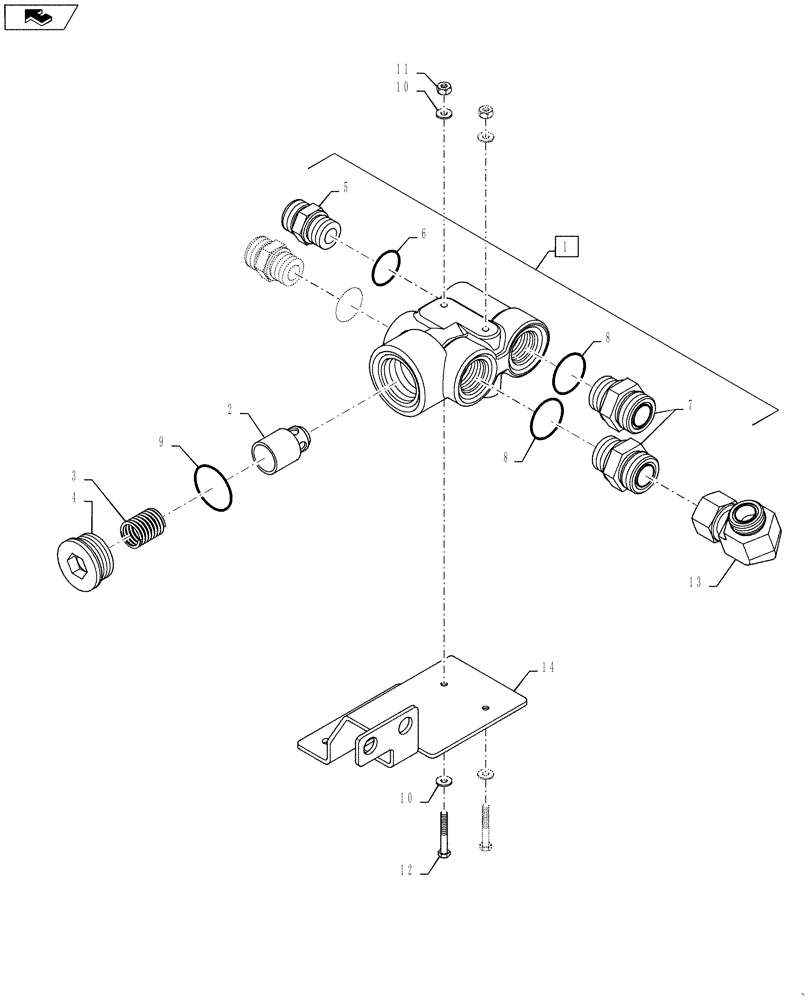

Схема запчастей Case IH QUADTRAC 500 - (35.962.03) - COOLER BYPASS VALVE (35) - HYDRAULIC SYSTEMS
2
5
home
10
14
7
9
13
12
3
8
1
4
8
11
6
10

Артикул

Название

Примечание

Количество

1

84194708

VALVE BODY

Cooler Bypass, Incl 2 - 9

1шт.

2

107453A1

PLUNGER

1шт.

3

431858A1

SPRING

1шт.

4

221528A1

PLUG,Hex Soc, M42 x 2, ORB

Incl 9

1шт.

5

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

Incl 6

2шт.

6

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

7

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl 8

2шт.

8

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

9

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

12

827-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 10.9

2шт.

13

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

1шт.

14

84535636

BRACKET

Manifold, Cooler Bypass

1шт.

Выбрано товаров: 14
