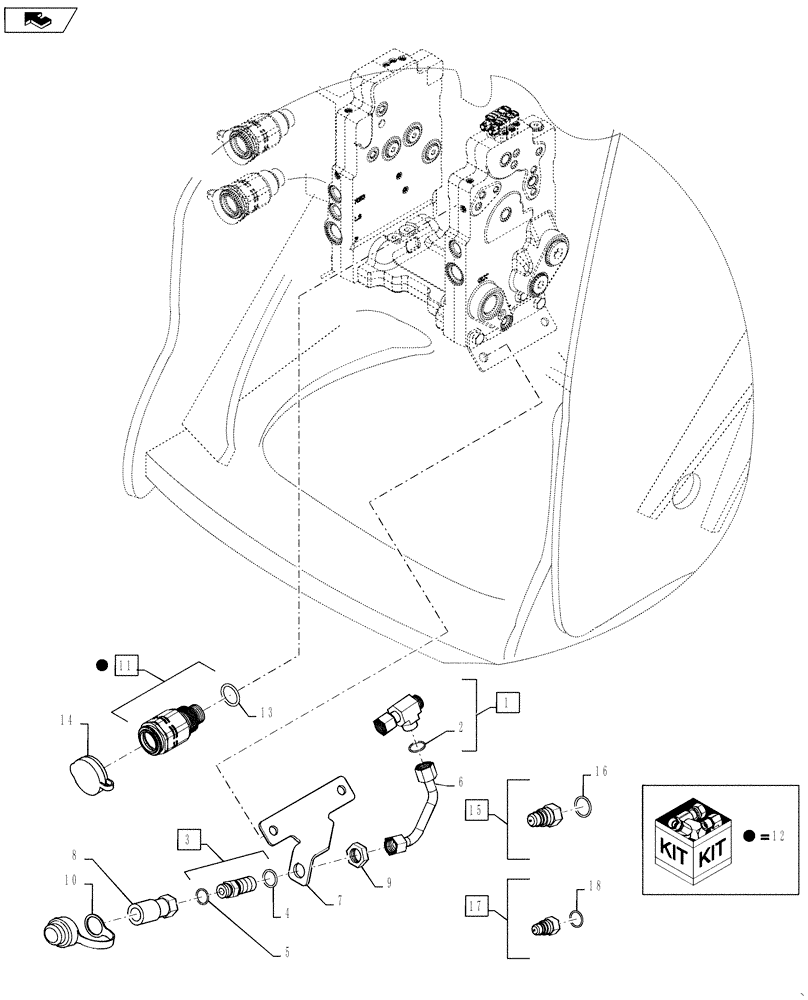

Запчасти Case IH QUADTRAC 500 (35.204.20) - LOW PRESSURE RETURN (35) - HYDRAULIC SYSTEMS

1

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 2

1шт.

2

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

3

436249A1

FITTING

Bulkhead, 3/4-16ORB X 13/16-14ORFS, Incl 4 - 5

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

84305996

TUBE

Motor Return

1шт.

7

442477A2

BRACKET

1шт.

8

385357A1

COUPLING

Disconnect, Female

1шт.

9

701-903

NUT,13/16" - 16

1шт.

10

86539389

DUST CAP,29.2mm ID

Rubber

1шт.

11

298291A1

COUPLING, QUICK, FEM,Assembly, 3/4"

3/4" Coupler, Incl 12 - 13

1шт.

12

445015A1

SEAL KIT

3/4" Coupler, Incl O-ring, Seal, and Washer

1шт.

13

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

14

334216A1

CAP

Dust, 3/4" Coupler

1шт.

15

347755A1

COUPLING,ISO 20, 3/4" x 1 1/16" - 12, Fem SAE ORB

Nipple, 3/4 BODY X 1 1/16-12 ORB, Incl 16

1шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

17

385358A1

QUICK MALE COUPLING,3/8"

3/8", Incl 18

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
