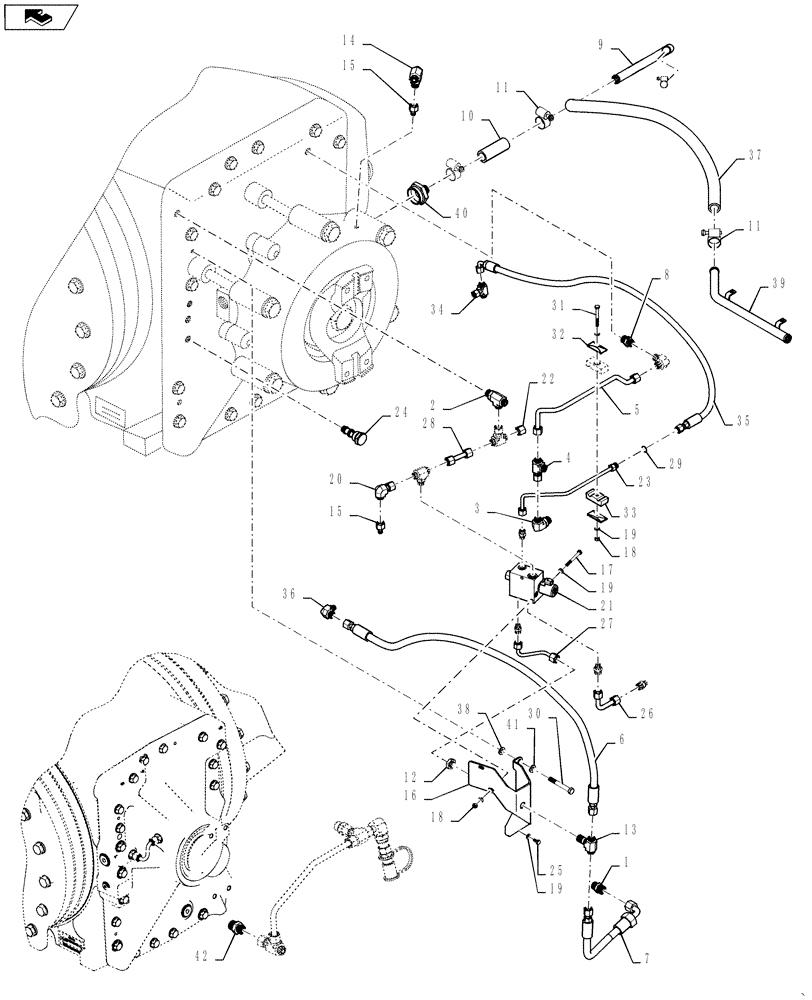

Запчасти Case IH QUADTRAC 500 (35.128.04[03]) - 450 SERIES AXLE - CENTER AXLE LUBE WITH DIFFRENTIAL LOCK - REAR SECTION - STEIGER / QUADTRAC 500 - HOMOLOGATION (35) - HYDRAULIC SYSTEMS

1

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

1шт.

2

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

3

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

4

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

5

84280342

RIGID TUBE

Rear Axle Lube

1шт.

6

84389883

HYDRAULIC HOSE,12.7mm ID x 1460mm L, SAE 100R1

Aux. Return

1шт.

7

84389884

HYDRAULIC HOSE,12.7mm ID x 508mm L, SAE 100R1

Aux. Return

1шт.

8

84513641

CHECK VALVE,M22 x 1.5 ORB x 13/16" - 16 ORFS

Check relief, 25 PSI, Start Serial: ZBF128637

1шт.

9

416729A1

TUBE

1шт.

10

31-2757

HOSE,1.00" ID x 4.00"

1шт.

11

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1шт.

12

701-903

NUT,13/16" - 16

1шт.

13

701-452

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1шт.

14

700-447

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

15

190316A1

COUPLING

Coupler

1шт.

16

84389893

BRACKET

Diff. Lock Valve Support

1шт.

17

827-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

1шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

20

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

21

84359555

HYDRAULIC MANIFOLD

Diff. Lock Control

1шт.

22

701-905

CAP,13/16" - 16

1шт.

23

84389885

HYD TUBE

Diff. Lock PP

1шт.

24

84389894

CONTROL VALVE

Diff. Lock Apply

1шт.

25

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

26

84389891

HYD TUBE

Diff. Lock Pressure

1шт.

27

84389889

HYD TUBE

Diff. Lock Return

1шт.

28

84389887

HYD TUBE

Brake Signal

1шт.

29

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

30

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

1шт.

31

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

1шт.

32

435468A1

PLATE

1шт.

33

87105732

CLAMP

1шт.

34

701-434

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

35

84389882

HYDRAULIC HOSE,9.53mm ID x 1365mm L, SAE 100R1

Diff. Lock PP

1шт.

36

700-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

37

404991A1

HOSE,1.00" ID x 38.00"

1шт.

38

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

39

84217058

HYD TUBE

Rear, Serial Range: Axle-Tank

1шт.

40

337545A1

HYD CONNECTOR

1шт.

41

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

1

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

1шт.

2

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

3

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

4

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

5

84280342

RIGID TUBE

Rear Axle Lube

1шт.

6

84389883

HYDRAULIC HOSE,12.7mm ID x 1460mm L, SAE 100R1

Aux. Return

1шт.

7

84389884

HYDRAULIC HOSE,12.7mm ID x 508mm L, SAE 100R1

Aux. Return

1шт.

8

84513641

CHECK VALVE,M22 x 1.5 ORB x 13/16" - 16 ORFS

Check relief, 25 PSI, Start Serial: ZBF128637

1шт.

9

416729A1

TUBE

1шт.

10

31-2757

HOSE,1.00" ID x 4.00"

1шт.

11

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1шт.

12

701-903

NUT,13/16" - 16

1шт.

13

701-452

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1шт.

14

700-447

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

15

190316A1

COUPLING

Coupler

1шт.

16

84389893

BRACKET

Diff. Lock Valve Support

1шт.

17

827-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

1шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

20

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

21

84359555

HYDRAULIC MANIFOLD

Diff. Lock Control

1шт.

22

701-905

CAP,13/16" - 16

1шт.

23

84389885

HYD TUBE

Diff. Lock PP

1шт.

24

84389894

CONTROL VALVE

Diff. Lock Apply

1шт.

25

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

26

84389891

HYD TUBE

Diff. Lock Pressure

1шт.

27

84389889

HYD TUBE

Diff. Lock Return

1шт.

28

84389887

HYD TUBE

Brake Signal

1шт.

29

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

30

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

1шт.

31

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

1шт.

32

435468A1

PLATE

1шт.

33

87105732

CLAMP

1шт.

34

701-434

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

35

84389882

HYDRAULIC HOSE,9.53mm ID x 1365mm L, SAE 100R1

Diff. Lock PP

1шт.

36

700-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

37

404991A1

HOSE,1.00" ID x 38.00"

1шт.

38

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

39

84217058

HYD TUBE

Rear Axle to Tank

1шт.

40

337545A1

HYD CONNECTOR

1шт.

41

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

42

84989393

ELBOW,90 Degree, 1"-14 ORFS x 1"-14 Fem Sw

1шт.
