Запчасти Case IH QUADTRAC 500 (35.128.04[02]) - 450 SERIES AXLE - FRONT CENTER AXLE LUBE WITH DIFFERENTIOAL LOCK - CENTER SECTION - STEIGER / QUADTRAC 500 - HOMOLOGATION (35) - HYDRAULIC SYSTEMS

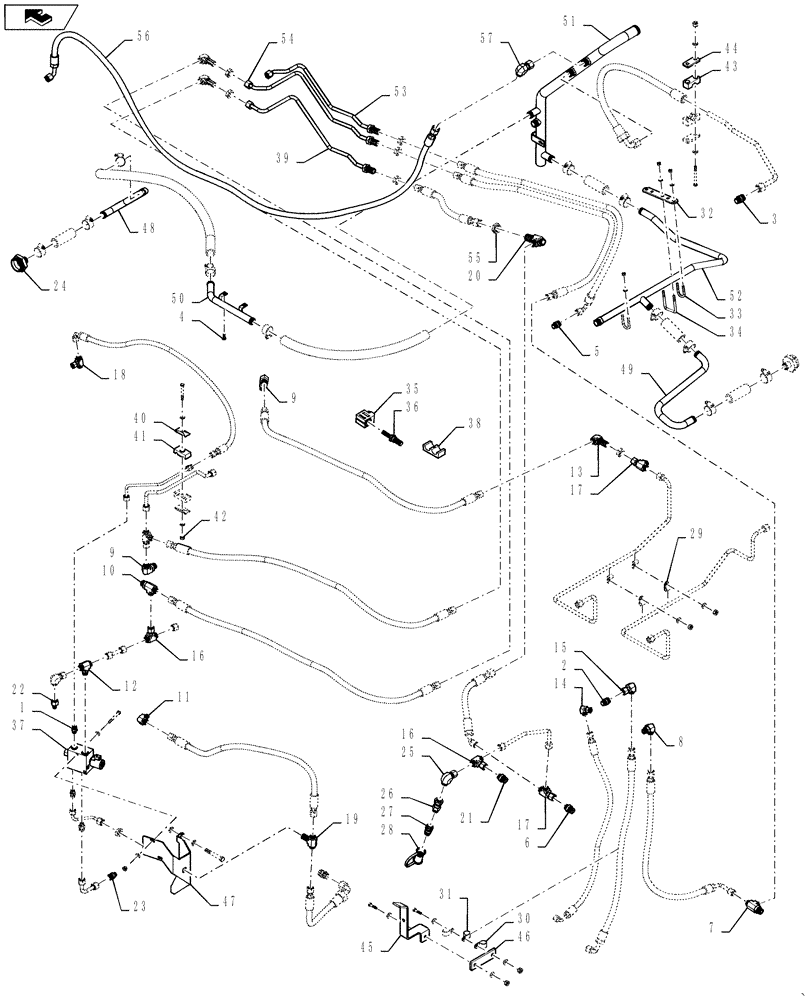

Схема запчастей Case IH QUADTRAC 500 - (35.128.04[02]) - 450 SERIES AXLE - FRONT CENTER AXLE LUBE WITH DIFFERENTIOAL LOCK - CENTER SECTION - STEIGER / QUADTRAC 500 - HOMOLOGATION (35) - HYDRAULIC SYSTEMS
31
2
7
4
50
26
56
home
44
8
29
36
52
9
57
22
55
6
45
32
14
3
17
40
51
38
1
24
13
43
46
37
11
17
15
48
39
34
25
49
21
19
41
42
5
28
53
16
27
33
18
30
16
23
20
47
9
12
35
10
54

Артикул

Название

Примечание

Количество

1

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

2

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

3

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

1шт.

4

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

5

700-154

HYD CONNECTOR,13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

6

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

7

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

8

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

9

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

10

700-447

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

11

700-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

12

700-402

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

13

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1шт.

14

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

15

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

16

701-411

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

17

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

18

701-434

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

19

701-452

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1шт.

20

84191902

RUN TEE

Bulkhead, Run, ORFS - ORFS - ORFS - 16

1шт.

21

84513641

CHECK VALVE,M22 x 1.5 ORB x 13/16" - 16 ORFS

Check Relief, 25 PSI, Start Serial: ZBF128637

1шт.

22

190316A1

COUPLING

Coupler

1шт.

23

341195A1

ORIFICE

1шт.

24

337545A1

HYD CONNECTOR

1шт.

25

84168350

90 ELBOW,1" - 14 ORFS x 13/16" - 16 Female Swivel

Union, 90 Jump Swivel, ORFS - 5/8 - 1/2

1шт.

26

87643583

HYD CONNECTOR,5/8" ORFS x M22 x 1.5 ORFS

M22 x 1.5 ORB x 1 -14 Swivel, ORFS

1шт.

27

392690A1

COUPLING

1шт.

28

399032A1

CAP

Dust

1шт.

29

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

30

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

1шт.

31

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

1шт.

32

87535336

BRACKET

Cross Tube

1шт.

33

253105A1

U-BOLT,Coined, M8 x 1.25 x 33.8 x 50mm

1шт.

34

396490A1

U-BOLT

M8 x 1.25

1шт.

35

384977A1

VALVE

Assy., Solenoid

1шт.

36

84389894

CONTROL VALVE

Diff. Lock Apply

1шт.

37

84359555

HYDRAULIC MANIFOLD

Diff. Lock Control

1шт.

38

435470A1

CLAMP

1шт.

39

84281561

RIGID TUBE

Service Brake Pressure

1шт.

40

435468A1

PLATE

1шт.

41

87105732

CLAMP

1шт.

42

701-919

BHD LOCK NUT,1" - 14

1шт.

43

84341623

CLAMP,16mm ID

Tube Clamp Isolator

1шт.

44

367658A1

PLATE

1шт.

45

84214397

BRACKET, SUPPORTING

Brake Lines

1шт.

46

L50641

CONNECTING STRIP

Upper Radiator

1шт.

47

84389893

BRACKET

Diff. Lock Valve Support

1шт.

48

416729A1

TUBE

A

1шт.

49

416727A1

TUBE

A

1шт.

50

84217058

HYD TUBE

Rear Axle to Tank

1шт.

51

84281569

RIGID TUBE

Main Axle Drain

1шт.

52

84248762

TUBE

Front Axle Drain

1шт.

53

84281559

RIGID TUBE

Park Brake Pressure

1шт.

54

84281561

RIGID TUBE

Service Brake Pressure

1шт.

55

701-919

BHD LOCK NUT,1" - 14

1шт.

56

47415651

HYDRAULIC HOSE,12.7mm ID x 2641mm L

1шт.

57

84989393

ELBOW,90 Degree, 1"-14 ORFS x 1"-14 Fem Sw

Brake Drain

1шт.

Выбрано товаров: 57
