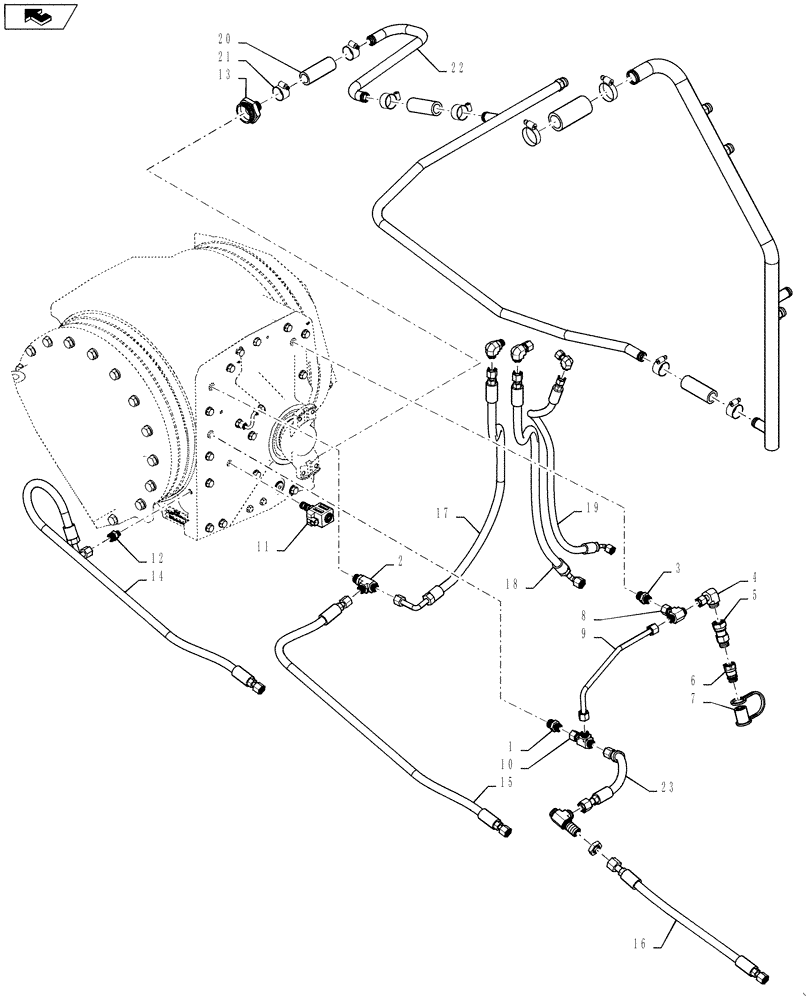

Запчасти Case IH QUADTRAC 500 (35.128.04[01]) - 450 SERIES AXLE LUBE WITH DIFFERENTIAL LOCK - FRONT SECTION - STEIGER / QUADTRAC 500 - HOMOLOGATION (35) - HYDRAULIC SYSTEMS

1

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

2

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

2шт.

3

84513641

CHECK VALVE,M22 x 1.5 ORB x 13/16" - 16 ORFS

Check Relief, 25 PSI, Start Serial: ZBF128637

2шт.

4

84168350

90 ELBOW,1" - 14 ORFS x 13/16" - 16 Female Swivel

90 Jump Swivel ORFS 5/8 - 1/2

1шт.

5

87643583

HYD CONNECTOR,5/8" ORFS x M22 x 1.5 ORFS

M22 x 1.5 ORB x 1 - 14 Swivel ORFS

1шт.

6

392690A1

COUPLING

Male

1шт.

7

399032A1

CAP

Dust Plug

1шт.

8

701-411

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

9

84224484

RIGID TUBE

Axle Lube Crosover

1шт.

10

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

11

384977A1

VALVE

Solenoid

1шт.

12

341195A1

ORIFICE

M8 X 1.25-6H

1шт.

13

337545A1

HYD CONNECTOR

1" Hose Bead

1шт.

14

84281578

HOSE ASSY.,12.7mm ID x 1410mm L, SAE 100R1

Park Brake Pressure

1шт.

15

84281580

HOSE ASSY.,12.7mm ID x 1194mm L, SAE 100R1

Service Brake Pressure

1шт.

16

84244572

HOSE ASSY.

Axle Lube

1шт.

17

84341618

HOSE ASSY.,12.7mm ID x 1181mm L, SAE 100R17

Brake Signal, Wheeled Standard

1шт.

18

84341616

HOSE ASSY.,9.53mm ID x 1029mm L, SAE 100R17

Brake, LS HP

1шт.

19

84341615

HOSE ASSY.,12.7mm ID x 1067mm L, SAE 100R17

Brake Supply, HP

1шт.

20

31-2757

HOSE,1.00" ID x 4.00"

1шт.

21

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1шт.

22

84281569

RIGID TUBE

Main Axle Drain

1шт.

23

84244571

HOSE ASSY.,12.7mm ID x 424mm L, SAE 100R1

Axle Lube, Front

1шт.
