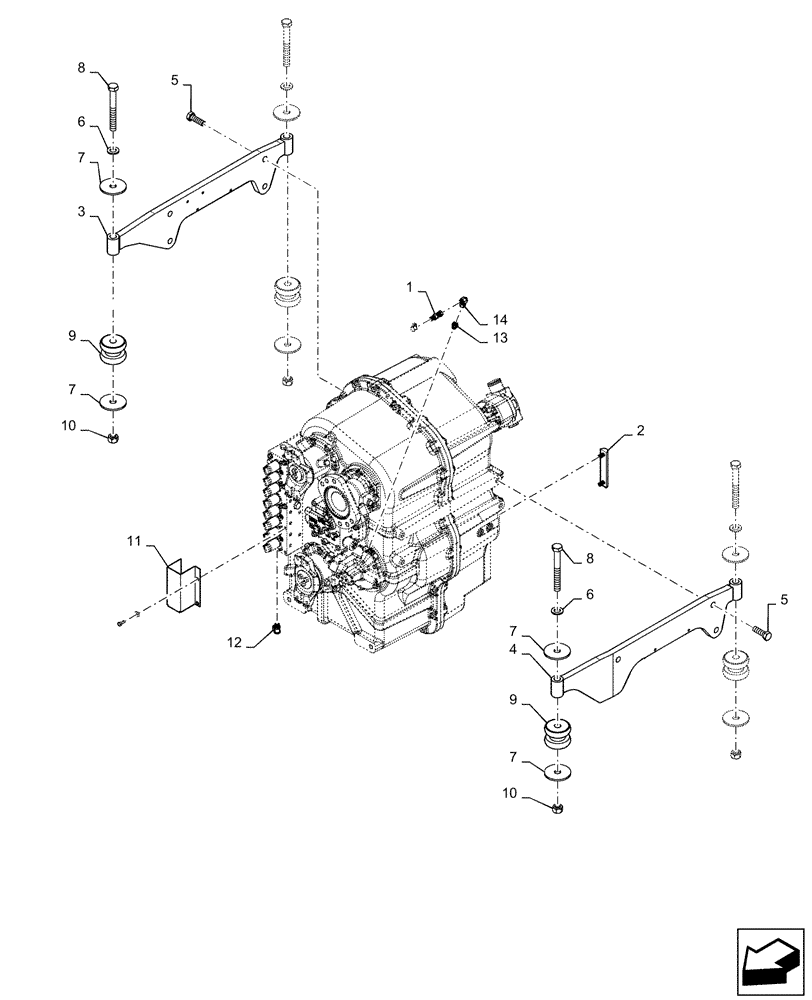

Запчасти Case IH QUADTRAC 470 (21.113.AD[01]) - TRANSMISSION MOUNTING, 8.5C, 470, 500 HD, 540 HD, BSN ZFF308000 (21) - TRANSMISSION

1

190117A1

COUPLING

Diagnostic

1шт.

2

L116247

GAUGE

Oil Level, Transmission

1шт.

3

84204430

PLATE

Transmission, RH

1шт.

4

84204429

PLATE

Transmission, LH

1шт.

5

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

8шт.

6

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

4шт.

7

379611A1

WASHER

Transmission Mounting

8шт.

8

828-22190

BOLT,Hex, M22 x 2.5 x 190mm, Cl 10.9

4шт.

9

340967A1

RUBBER MOUNTING

Isolator

4шт.

10

829-1422

NUT,M22 x 2.5, Cl 10

4шт.

11

87335429

COVER

Transmission Solenoids

1шт.

12

178889A1

DIAGNOSTIC COUPLER

Diagnostic

1шт.

13

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1шт.

14

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

1шт.
