Запчасти Case IH QUADTRAC 470 (50.100.AC[01]) - HEATER LINES, QUADTRAC 470, 500 (50) - CAB CLIMATE CONTROL

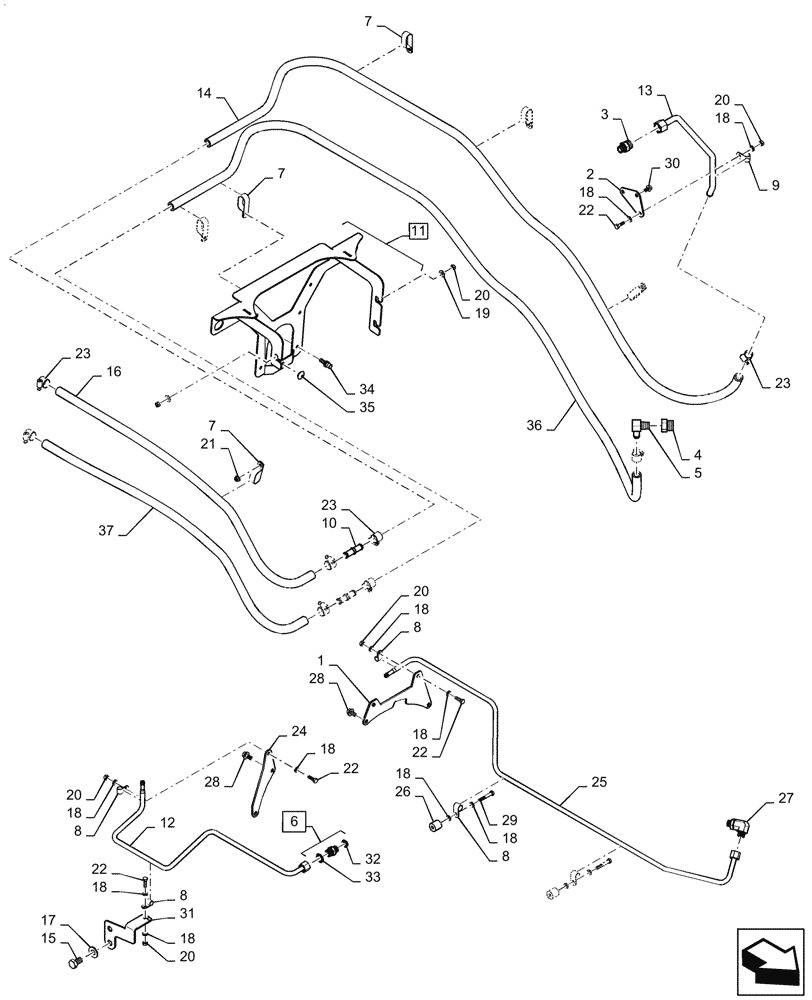

Схема запчастей Case IH QUADTRAC 470 - (50.100.AC[01]) - HEATER LINES, QUADTRAC 470, 500 (50) - CAB CLIMATE CONTROL
6
8
22
19
8
1
18
23
18
10
37
20
28
15
23
18
20
29
18
33
25
22
18
22
22
32
26
4
8
23
12
34
17
7
20
24
21
11
18
31
20
30
20
27
13
28
36
3
7
18
9
14
18
16
8
2
5
18
35
7
18

Артикул

Название

Примечание

Количество

1

47409560

BRACKET

Front Tube Support

1шт.

2

47377081

BRACKET

Front Tube Support

1шт.

3

84196966

FITTING

1" - 14 x M22 - 1.5

1шт.

4

47361209

ADAPTER

1/2" - 14 x M30 - 1.5

1шт.

5

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

1шт.

6

5185561

HYD CONNECTOR,Straight, M18 x 1.5 UN/UNF, 13/16"-16" ORFS

M18 - 1.5 x 13/16" - 16, Incl 32 - 33

1шт.

7

R54363

CLAMP

Hose, Double

7шт.

8

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

6шт.

9

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

10

83954537

FITTING

Heater Hose

2шт.

11

47985197

Center Hose Support, Incl 34, 35

BRACKET

1шт.

12

47408432

HEATER TUBE

SCR Heater Supply

1шт.

13

47484857

HEATER TUBE

Supply, Engine To Cab Heater

1шт.

14

47974972

HOSE

Heater Supply, 2585mm L

1шт.

15

627-16025

BOLT,Hex, M16 x 2 x 25mm, Cl 10.9, Full Thd

2шт.

16

47974968

HOSE

Heater Supply, 1170mm L

1шт.

17

895-15016

WASHER,M16 x 34 x 3

2шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

15шт.

19

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

20

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

9шт.

21

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

22

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

5шт.

23

1954736C1

HOSE CLAMP,#24

8шт.

24

47489404

BRACKET

Tube Support

1шт.

25

47372529

TUBE

SCR Heater Return

1шт.

26

8500571

SPACER,10mm ID x 25.4mm OD x 25mm L

Block

2шт.

27

84319913

HYD CONNECTOR,13/16-16 ORFS, 1/2-14 BSPP ORB

13/16" - 16

1шт.

28

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

4шт.

29

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

30

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

31

47408643

BRACKET

Tube Support

1шт.

32

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

33

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

Oring

1шт.

34

408567A1

STUD

M8

6шт.

35

L126856

RIVET

Bumper

1шт.

36

47974971

HOSE

Heater Return, 2585mm L

1шт.

37

47974967

HOSE

Heater Return, 1170mm L

1шт.

Выбрано товаров: 37
