Запчасти Case IH QUADTRAC 470 (48.138.AB[04]) - REAR IDLER, BSN ZFF304747 (48) - TRACKS & TRACK SUSPENSION

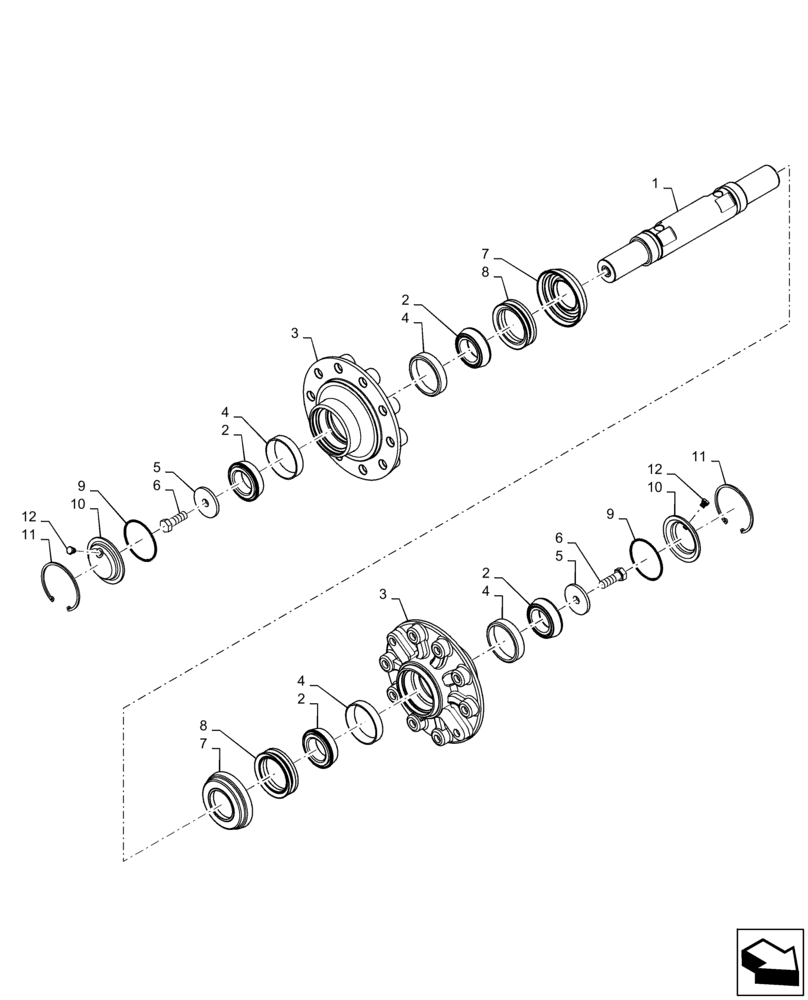

Схема запчастей Case IH QUADTRAC 470 - (48.138.AB[04]) - REAR IDLER, BSN ZFF304747 (48) - TRACKS & TRACK SUSPENSION
12
2
9
4
8
4
5
12
11
10
6
6
2
5
11
2
3
10
4
3
7
4
8
1
7
9
2

Артикул

Название

Примечание

Количество

1

84167370

IDLE SHAFT

Rear

1шт.

2

371884A1

BEARING CONE,63.5mm ID x 30.24mm W

4шт.

3

84234874

HUB

Idler

2шт.

4

371878A1

BEARING CUP,112.71mm OD x 23.81mm W

4шт.

5

87387720

RETAINER

Bearing

2шт.

6

84303553

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

2шт.

7

87304016

CUP,86mm ID x 154mm OD x 35.8mm Thk

Seal

2шт.

8

84573723

SEAL

Oil Idler

2шт.

9

238-5426

O-RING,0.275" Thk x 4.625" ID, -426, Cl 5, 75 Duro

2шт.

10

87408174

CAP

Idler Hub, Steel

2шт.

10

47608296

COVER

Idler Hub, Clear

2шт.

11

370014

SNAP RING,M130, Internal

2шт.

12

246406A1

PLUG,M12 x 1.5 ORB

Used with Steel Cap

2шт.

12

86598043

PLUG,M12 x 1.5 ORB

Used with Clear Cap

2шт.

Выбрано товаров: 14
