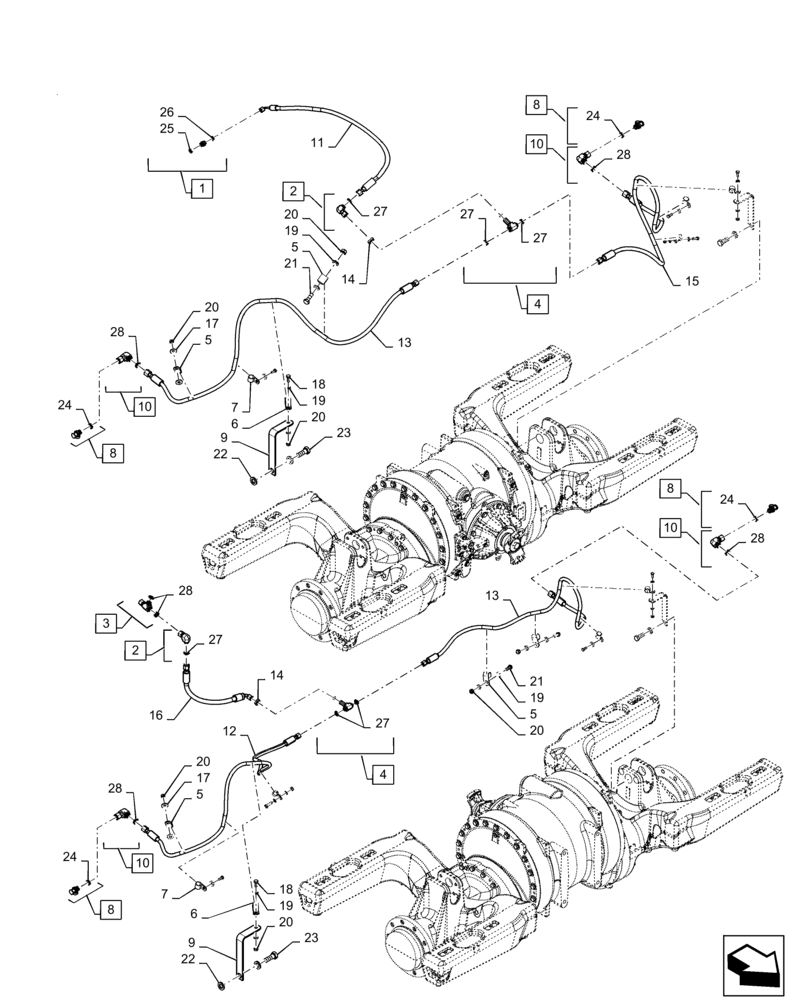

Запчасти Case IH QUADTRAC 470 (48.134.AJ[02]) - TRACK ASSY TENSIONER LINES, ASN ZFF304745 (48) - TRACKS & TRACK SUSPENSION

1

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 25 - 26

1шт.

2

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 27

1шт.

3

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 28

1шт.

4

87306678

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 ORFS

Incl 27

2шт.

5

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

10шт.

6

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

4шт.

7

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

4шт.

8

325647A2

COUPLING

Diagnostic, Incl 24

4шт.

9

87450401

BRACKET, SUPPORTING

Tension Hose

4шт.

10

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 28

5шт.

11

47834898

HYDRAULIC HOSE,10mm ID x 1275mm L

Rear Axle Pressure

1шт.

12

47853538

HYDRAULIC HOSE,10mm ID x 1795mm L

LH Front Axle

1шт.

13

47853534

HYDRAULIC HOSE,10mm ID x 1915mm L

RH Front/LH Rear Axle

2шт.

14

701-909

NUT,11/16" - 16

2шт.

15

47853532

HYDRAULIC HOSE,10mm ID x 1973mm L

RH Rear Axle

1шт.

16

47834897

HYDRAULIC HOSE,12.5mm ID x 572mm L

Front Axle Pressure

1шт.

17

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

12шт.

18

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

8шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

20шт.

20

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

14шт.

21

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

22

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

23

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

24

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.

25

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

26

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

27

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

7шт.

28

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

7шт.
