Запчасти Case IH QUADTRAC 470 (35.820.AA[01]) - HYDRAULIC PUMP, COOLING FAN DRIVE - 450, 470, 500 (35) - HYDRAULIC SYSTEMS

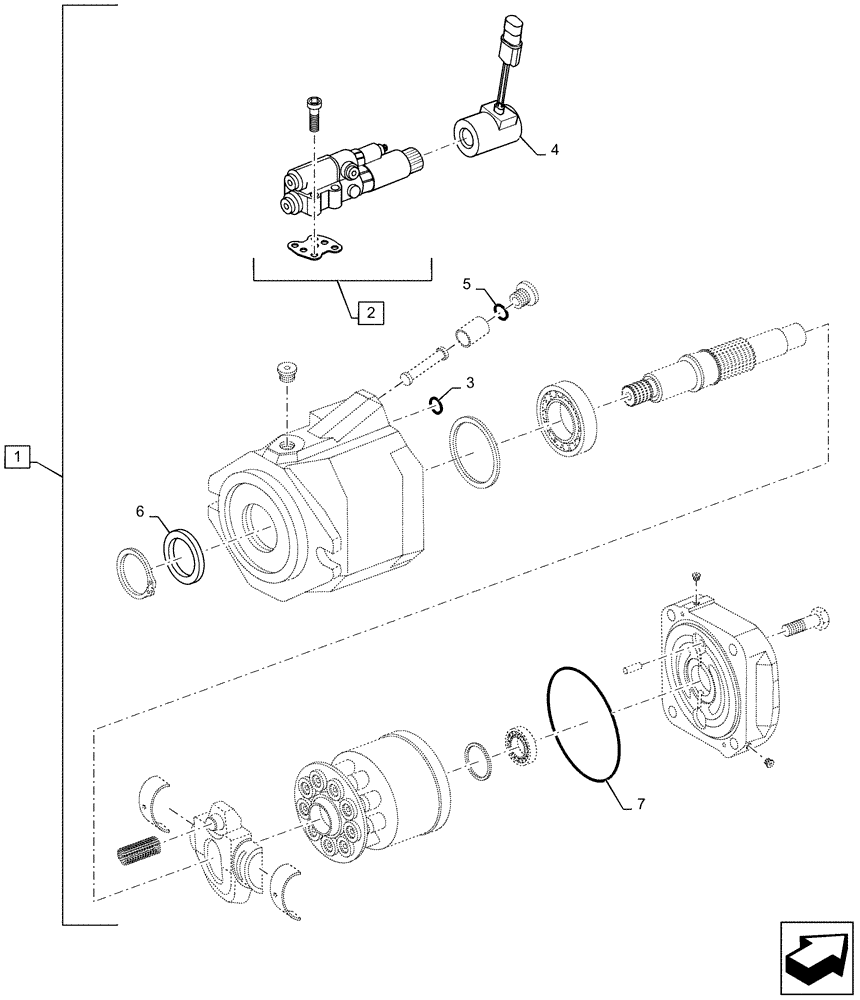

Схема запчастей Case IH QUADTRAC 470 - (35.820.AA[01]) - HYDRAULIC PUMP, COOLING FAN DRIVE - 450, 470, 500 (35) - HYDRAULIC SYSTEMS
4
7
5
1
6
3
2

Артикул

Название

Примечание

Количество

1

84208938

HYDRAULIC PUMP,45 CC

Cooling Fan Drive, CCW Variable Displacement, Incl 2 - 7, Serial Range: -ZEF301609

1шт.

1

84208938R

REMAN-HYD PUMP

Cooling Fan Drive, CCW Variable Displacement

1шт.

1

84208938C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

84566629

PUMP

, Start Serial: ZEF301609

1шт.

2

436536A1

PILOT VALVE

Compensator

1шт.

2

436536A1R

REMAN-HYD VALVE

Reman Compensator

1шт.

2

436536A1C

CORE-VALVE HYD

Core Return Number

1шт.

3

436750A1

O-RING

Seal

1шт.

4

436751A1

SOLENOID

Compensator

1шт.

5

8604956

O-RING,2.5mm Thk x 125mm ID

Pressure

1шт.

6

87414121

SEAL

Shaft

1шт.

7

87414122

O-RING

Pump Seal

1шт.

Выбрано товаров: 12
