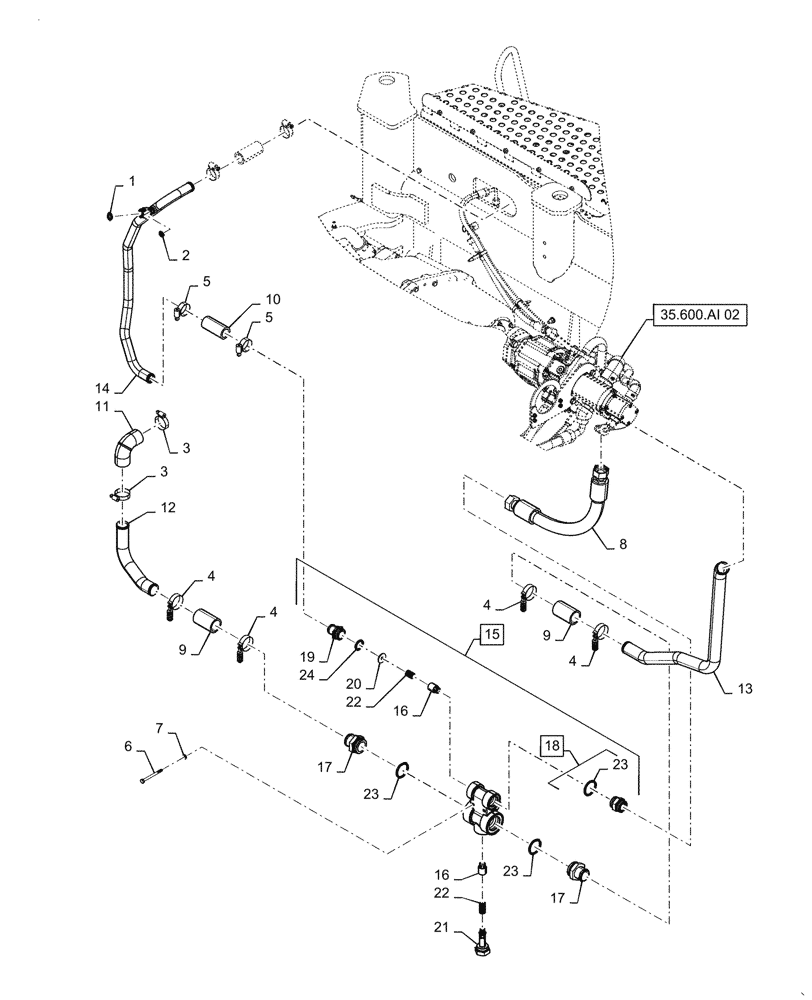

Запчасти Case IH QUADTRAC 470 (35.600.AM[02]) - HIGH FLOW CHARGE RELIEF VALVE (ASN ZGF309205) (35) - HYDRAULIC SYSTEMS

1

87473574

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

2

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

3

214-1536

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm, W/ Liner

2шт.

4

47757203

HOSE CLAMP,60.3mm - 68.3mm, Spring

4шт.

5

214-1528

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm, W/ Liner

2шт.

6

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

2шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

8

47928270

HYDRAULIC HOSE

Hydraulic Pump, Supply

1шт.

9

427140A1

HOSE,50.80 mm ID x 101.60 mm

Pump Supply, Charge Relief Valve

2шт.

10

1-4571

HOSE

1-1/2" ID x 4-1/2" L

1шт.

11

84180095

HOSE

Elbow, 2" ID

1шт.

12

84276100

TUBE

Main Charge, Suction

1шт.

13

47928263

HYDRAULIC HOSE

Main Charge, Suction

1шт.

14

84256492

HYD TUBE

Hydraulic Pump, Drain

1шт.

15

84197046

VALVE

Charge, Relief, Incl 16 - 24

1шт.

16

107453A1

PLUNGER

Poppet Lube Relief

2шт.

17

84188435

HYD CONNECTOR,2-1/2” - 12 x 2-15/16” L

2" ID x 2-1/2" - 12

2шт.

18

201-148

ELBOW UNION

Incl 23

1шт.

19

86634098

FITTING,1 1/2" Hose x 1 7/8"-12 ORB, Beaded

1шт.

20

84193990

WASHER,12.9mm ID x 43mm OD x 3mm Thk

1шт.

21

84196675

PLUG,1-7/8" - 12

1шт.

22

431858A1

SPRING

Relief

2шт.

23

9840589

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

3шт.

24

9626930

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.
