Запчасти Case IH QUADTRAC 470 (35.300.040[02]) - OIL COOLER LINES (ASN ZGF303632) (35) - HYDRAULIC SYSTEMS

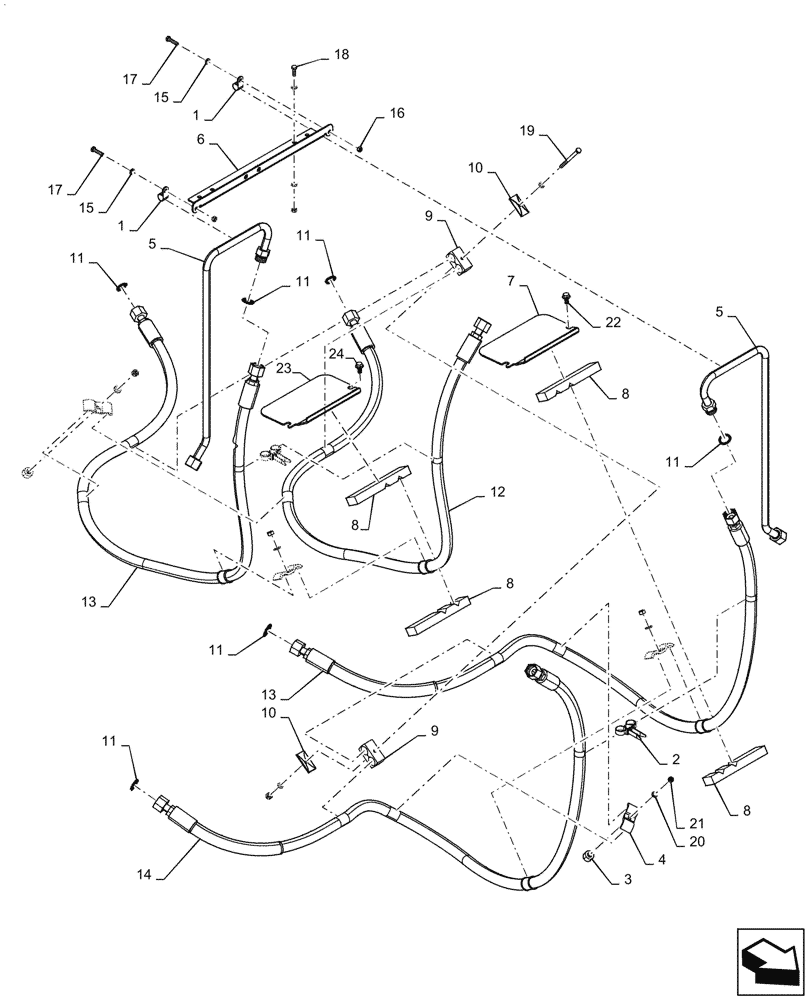

Схема запчастей Case IH QUADTRAC 470 - (35.300.040[02]) - OIL COOLER LINES (ASN ZGF303632) (35) - HYDRAULIC SYSTEMS
24
4
10
8
18
16
13
11
22
8
8
15
9
11
23
20
15
6
17
13
12
21
8
11
2
5
11
1
5
9
11
7
14
1
17
3
11
19
10

Артикул

Название

Примечание

Количество

1

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

2

327144A1

STRAP,328mm L

Dual Hose Tie

2шт.

3

372947A1

SPACER

12.8mm ID x 25.4mm OD x 15.6mm Thk

2шт.

4

R15257

CLAMP

Hose

4шт.

5

84368999

TUBE

Oil Cooler Return

2шт.

6

47717992

BRACKET

Oil Cooler Hose Support, Serial Range: -ZGF309404

1шт.

6

47925850

BRACKET

Oil Cooler Hose Support, Start Serial: ZGF309405

1шт.

7

84216361

BRACKET, SUPPORTING

Oil Cooler Hose Seal, Serial Range: -ZHF311990

1шт.

7

48028256

BRACKET

Oil Cooler Hose Seal, Start Serial: ZHF311991

1шт.

8

84216360

SEAL

Foam, Cooler Plumbing, Serial Range: -ZHF311990

4шт.

8

48036800

FOAM

Cooler Plumbing Seal, Start Serial: ZHF311991

4шт.

9

50-2534T1

CLAMP

Tube

4шт.

10

50-2533T1

PLATE

Clamp Cover

2шт.

11

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

6шт.

12

84368997

HOSE ASSY.

Oil Cooler Supply, Transmission

1шт.

13

84486352

HOSE

Oil Cooler Return

2шт.

14

84486353

HOSE

Oil Cooler Supply, Hydraulic Oil

1шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

14шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

7шт.

17

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

2шт.

18

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

19

827-8110

BOLT,Hex, M8 x 1.25 x 110mm, Cl 10.9

1шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

21

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

22

87752076

SCREW,Hex Wash Hd, M10 x 1.5 x 16mm

2шт.

23

84381096

BRACKET

Cooler Hose Seal, Serial Range: -ZHF311990

1шт.

24

87752076

SCREW,Hex Wash Hd, M10 x 1.5 x 16mm

, Serial Range: -ZHF311990

2шт.
