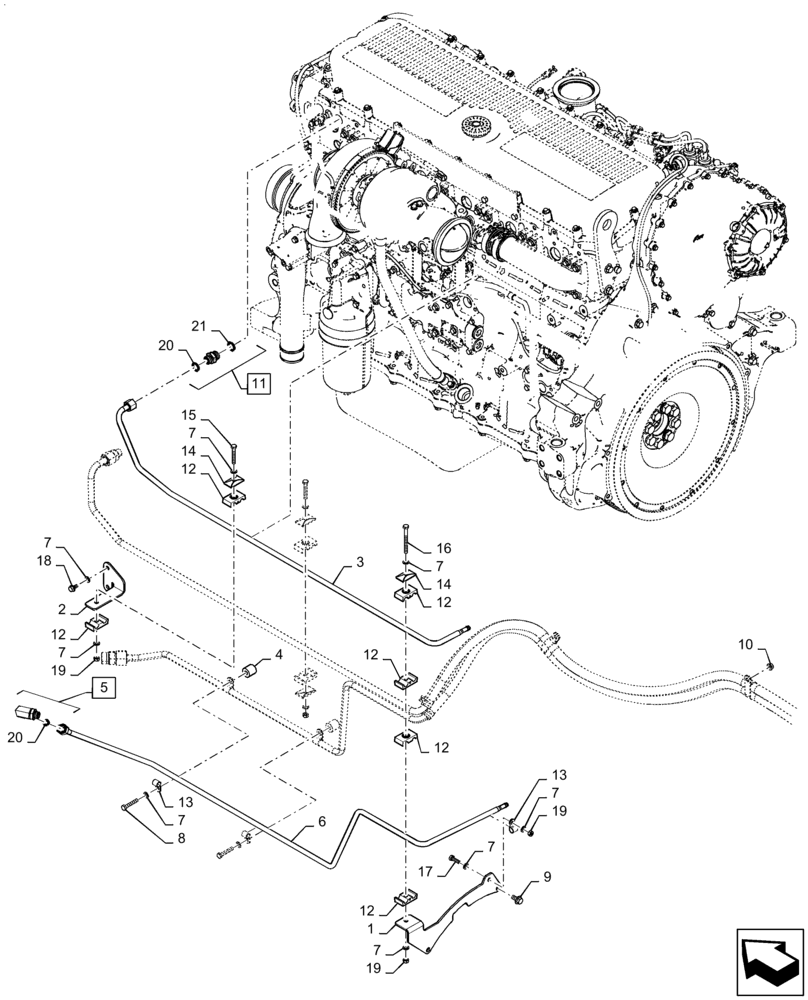

Запчасти Case IH QUADTRAC 470 (10.500.AD[06]) - DEF/ADBLUE™ TANK, HEATER LINES, 420, 470, 500 (10) - ENGINE

1

84584990

BRACKET

Front Tube Support

1шт.

2

47410606

BRACKET

Heater Tube Support

1шт.

3

47484819

HEATER TUBE

SCR Heater Supply

1шт.

4

8500571

SPACER,10mm ID x 25.4mm OD x 25mm L

Block

2шт.

5

84319913

HYD CONNECTOR,13/16-16 ORFS, 1/2-14 BSPP ORB

Incl 20

1шт.

6

47419995

HEATER TUBE

SCR Heater Return

1шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

8

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

2шт.

9

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

10

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

11

82016497

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5

Incl 20 - 21

1шт.

12

47568093

PIPE CLAMP

Double

4шт.

13

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

3шт.

14

50-2532T1

PLATE

Cover

4шт.

15

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

16

827-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

1шт.

17

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

18

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

19

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

20

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

21

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.
