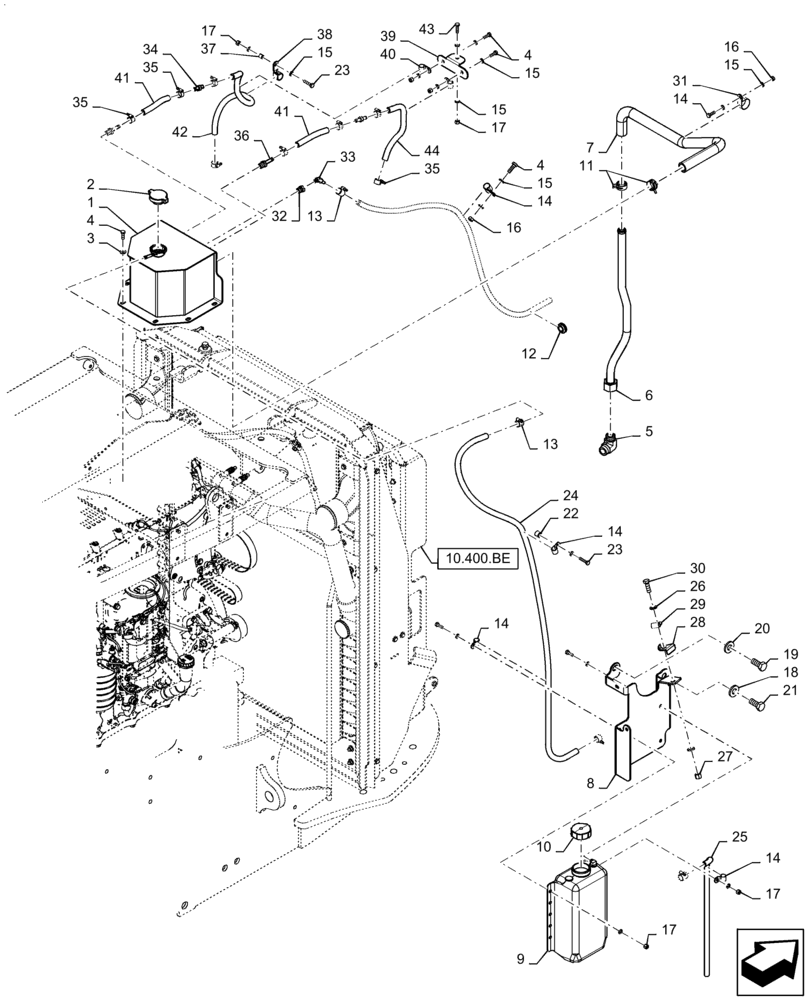

Запчасти Case IH QUADTRAC 470 (10.400.BI[02]) - DEARATION TANK, 420, 470, 500 (10) - ENGINE

1

47591560

TANK

Dearation

1шт.

2

A170241

RADIATOR CAP

103 KPA

1шт.

3

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

4

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

14шт.

5

47434575

FITTING,1-7/16 - 12 ORFS x M30 x 1.5

1шт.

6

47488961

TUBE

Surge Tank Return

1шт.

7

47394276

RADIATOR HOSE

Surge Tank Return

1шт.

8

47588314

SUPPORT

Water Bottle

1шт.

9

87481454

BOTTLE

Tank Recovery, 5 Quart

1шт.

10

238903A1

FILLER CAP

Coolant Recovery Tank

1шт.

11

47613530

HOSE CLAMP,38mm ID

Clamp

2шт.

12

361191A1

GROMMET

Mount

1шт.

13

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

4шт.

14

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

4шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

21шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

18

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

1шт.

19

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

1шт.

20

896-15018

WASHER,20mm ID x 41mm OD x 5mm Thk

2шт.

21

84188430

BOLT,Hex, M18 x 2 x 40mm, Cl 8.8

M18 x 2 x 40

2шт.

22

316937A1

SPACER,12.2mm ID x 19.1mm OD x 14mm Thk

Hood Linkage

1шт.

23

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

2шт.

24

307149A1

HOSE,7.9 mm ID x 1676.40 mm

1шт.

25

84523216

HOSE

Over Flow

1шт.

26

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

27

832-10412

NUT,M12 x 1.75, Cl 8

5шт.

28

87347377

BRACKET

Dipstick

1шт.

29

515-25143

CLAMP,9/16", Insul, 1/2" Bolt

1шт.

30

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

1шт.

31

515-23365

CLAMP,1 7/16", Insul, 3/8" Bolt

1шт.

32

70901838

REDUCER

Pipe Reducer

1шт.

33

84285334

FITTING

Elbow

1шт.

34

47591521

ORIFICE,3/8" Hose Barb x 3/8" Hose Barb, 1/8" Orifice

3/8" Hose x 1/8" I.D

2шт.

35

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

8шт.

36

217-380

FITTING,3/8" Hose Barb x 3/8" Male NPTF

2шт.

37

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

1шт.

38

R43926

CLAMP

7/8" Hose

1шт.

39

47603310

BRACKET

Vent Support

1шт.

40

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

2шт.

41

84124893

FUEL HOSE

Radiator, Bulk, Cut to Length of 138mm

1шт.

42

47569555

HOSE,9.5mm ID x 575mm L

Radiator

1шт.

43

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

44

84156900

HOSE

Deaeration Tank - Engine Vent

1шт.
