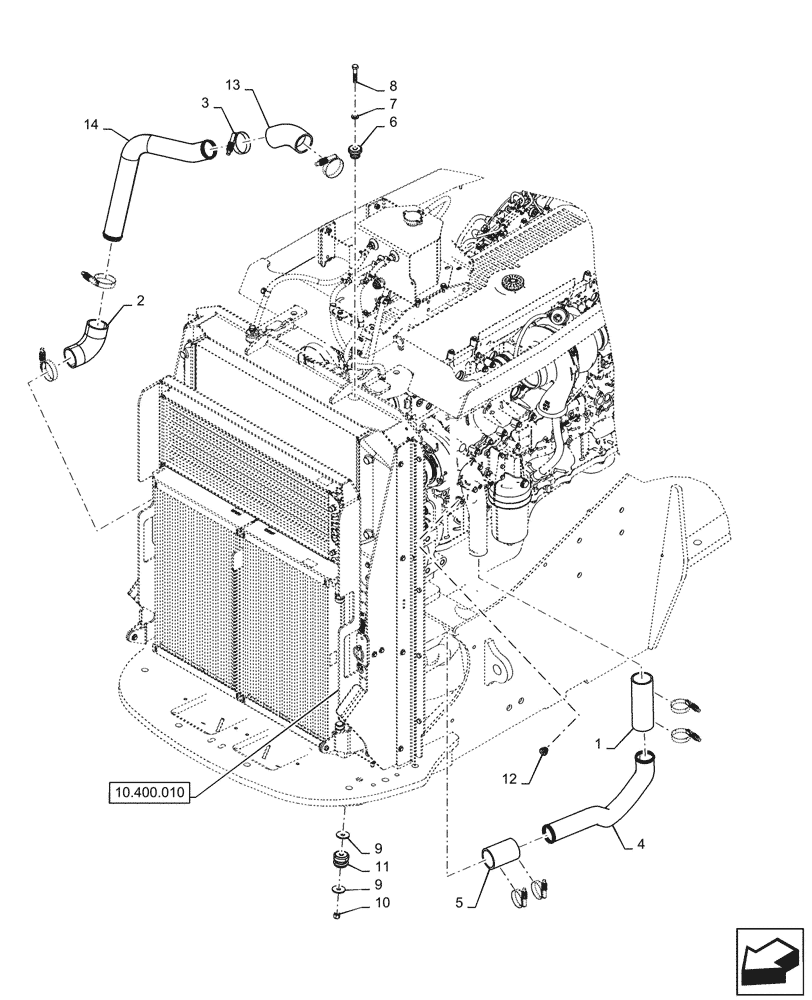

Запчасти Case IH QUADTRAC 470 (10.400.012[02]) - RADIATOR & HOSE (BTW ZEF301259 - ZGF309206) (10) - ENGINE

1

84565800

HOSE

Lower Radiator, Serial Range: -ZFF308015

1шт.

1

47883622

RADIATOR HOSE,63.5mm ID x 200mm L

Lower, Start Serial: ZFF308016

1шт.

2

87745059

HOSE

Lower Radiator, Serial Range: -ZFF308015

1шт.

2

47883398

RADIATOR HOSE,Elbow, 63.5mm ID

Lower, Start Serial: ZFF308016

1шт.

3

47891942

CLAMP,63.5mm - 71.4mm, Spring

Constant Torque Clamp

8шт.

4

84315495

TUBE

Lower Radiator

1шт.

5

47472185

RADIATOR HOSE,63.5mm ID x 107.5mm L, SAE 20R4

, Serial Range: -ZFF308015

1шт.

5

47883431

RADIATOR HOSE,63.5mm ID x 107.5mm L

, Start Serial: ZFF308016

1шт.

6

L13142

BUSHING

Engine Mount

2шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

8

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

9

435433A1

WASHER,13.5mm ID x 44.5mm OD x 3mm Thick

6шт.

10

832-10412

NUT,M12 x 1.75, Cl 8

5шт.

11

435465A1

RUBBER MOUNTING

Isolator

2шт.

12

87308399

PLUG

1/2" BSPP Plug

1шт.

13

47617527

HOSE

Radiator, Serial Range: -ZFF308015

1шт.

13

47883591

RADIATOR HOSE,63.5mm ID

, Start Serial: ZFF308016

1шт.

14

47606003

TUBE

Radiator Return

1шт.
