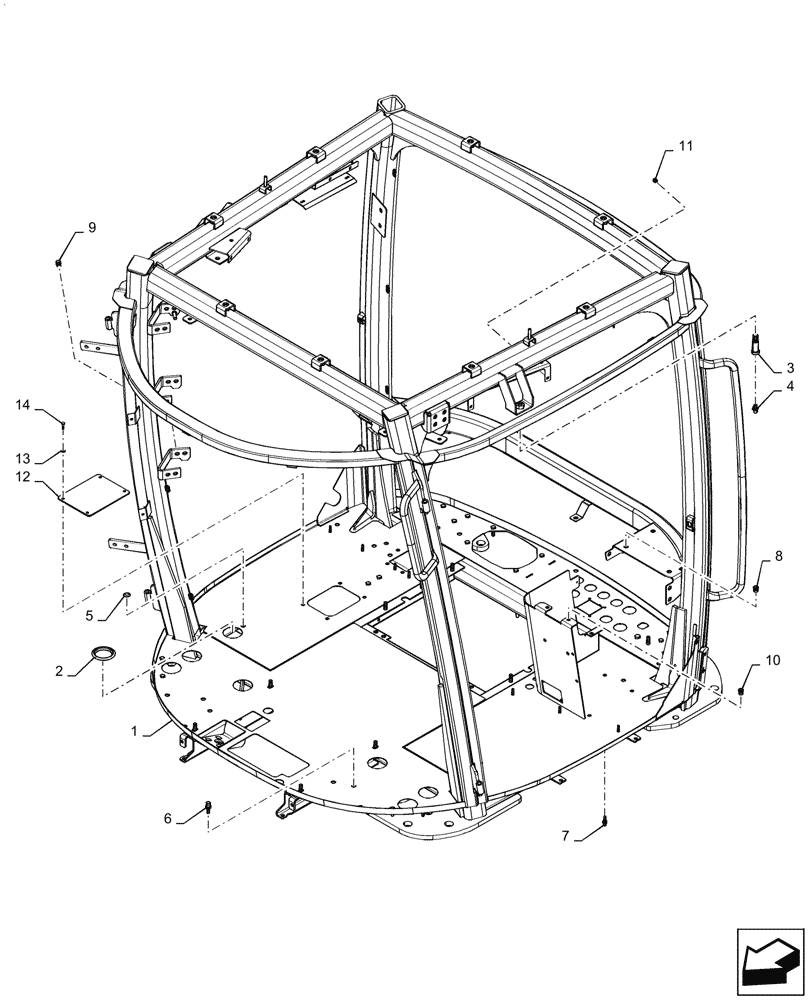

Запчасти Case IH QUADTRAC 470 (90.150.020[02]) - CAB FRAME, W/ CAB SUSPENSION (ASN ZFF304559) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47780605

FRAME

Cab, Serial Range: ZFF304558-ZGF311000

1шт.

1

47854921

FRAME

Cab, Start Serial: ZGF311001

1шт.

2

353-593

PLUG

2-1/2"

1шт.

3

442085A1

MOUNTING PARTS

Stud

2шт.

4

3234063R1

BALL STUD,M10 x 1.5

Door Gas Strut

2шт.

5

64-146

PLUG

1/2" Black

4шт.

6

408567A1

STUD

Threaded, M8

1шт.

7

440570A1

STUD

Threaded, M6

13шт.

8

408566A1

INSERT,M8

Threaded

5шт.

9

379540A1

INSERT,M8

Threaded

14шт.

10

404287A1

INSERT,M6

Threaded

10шт.

11

322072A2

FASTENER

Expansion

7шт.

12

47729043

COVER ASSY

Mega Flow Pump Access

1шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

14

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.
