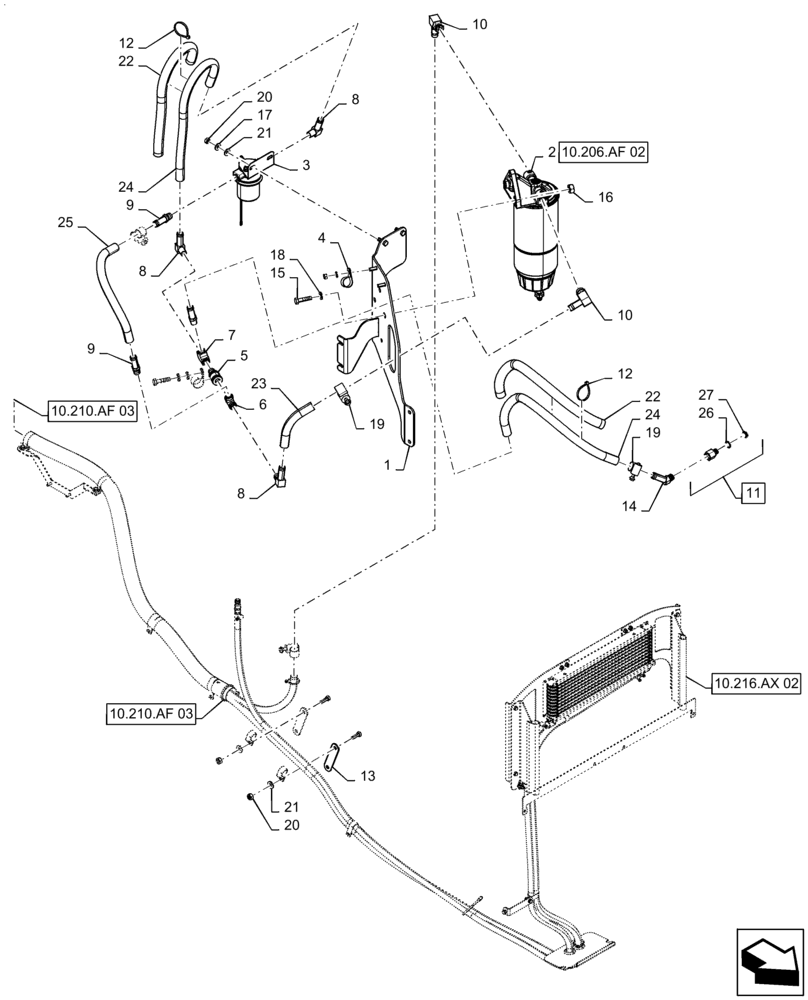

Запчасти Case IH QUADTRAC 470 (10.210.AF[04]) - FUEL FILTER & FUEL TRANSFER PUMP, 420, 470, 500 (10) - ENGINE

1

47564859

BRACKET

Fuel Filter And Fuel Pump

1шт.

2

84402581

FUEL FILTER

Assembly

1шт.

3

87282080

FUEL PUMP,12V, 12A

Fuel Lift Pump

1шт.

4

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

1шт.

5

87365506

CHECK VALVE

Fuel Supply

1шт.

6

217-52

TEE,3/8"-18 NPTF Fem x 3/8"-18 NPTF Male Run

1шт.

7

217-12

TEE,3/8"-18 NPTF Fem

1шт.

8

217-332

FITTING,90 Degree Elbow, 5/8" Hose Barb x 3/8" Male NPTF

3шт.

9

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

3шт.

10

217-349

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 7/8" - 14 Male ORB

2шт.

11

86990398

FITTING

3/8" - 18 NPT x M16 x 1.5, Incl 26 - 27

1шт.

12

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

13

84600475

BRACKET

Hose Support

2шт.

14

217-207

FITTING,45 Degree Elbow, 5/8" Hose Barb x 3/8" Male NPTF

5/8" Hose x 3/8" NPT

1шт.

15

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

3шт.

16

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

17

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

7шт.

18

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

6шт.

19

214-1510

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm, W/ Liner

5шт.

20

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

9шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

22

47430275

PROTECTIVE SLEEVE

Fuel Line, 530mm x 24.4mm

2шт.

23

87362717

HOSE,15.9mm ID x 152.4mm L

Fuel, Check Valve To Engine

1шт.

24

87308466

FUEL HOSE,15.9mm ID x 584mm L

2шт.

25

87413680

HOSE,15.9mm ID x 343mm L

1шт.

26

86990401

RING

Retaining

1шт.

27

86990399

O-RING

13.46mm x 2.08mm

1шт.
