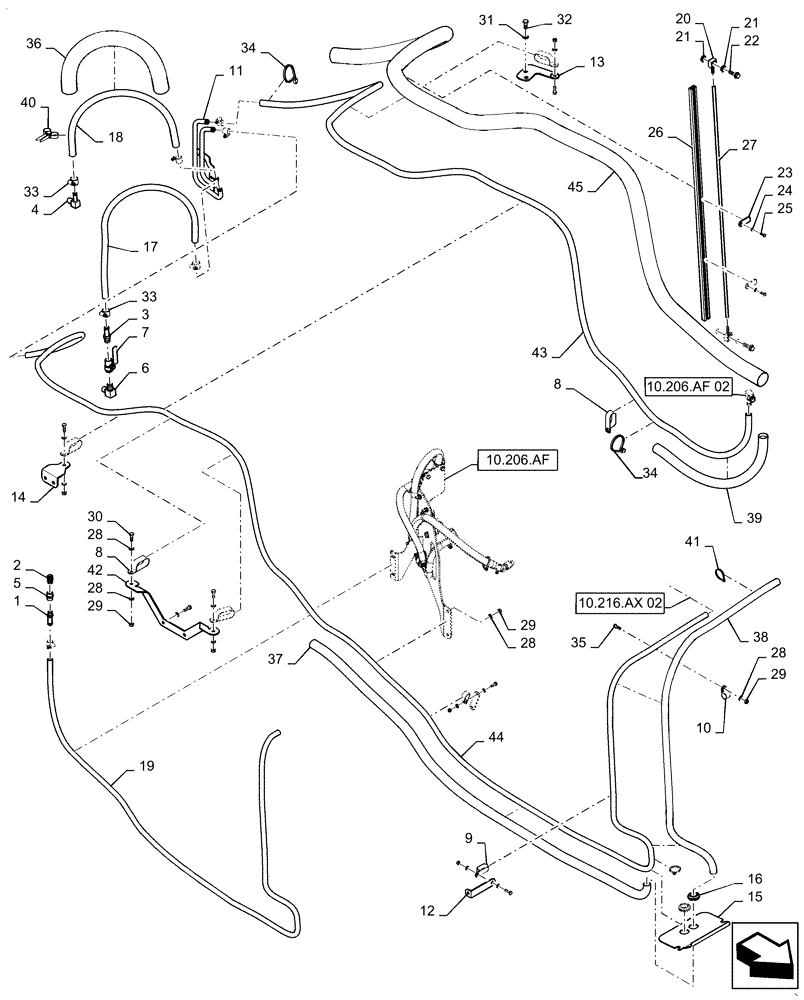

Запчасти Case IH QUADTRAC 470 (10.210.AF[03]) - FUEL LINE, 420, 470, 500 (10) - ENGINE

1

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

4шт.

2

84308826

ADAPTER

Male

1шт.

3

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

1шт.

4

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

1шт.

5

217-1102

HYD CONNECTOR,3/8" - 18 NPTF x 3/8" - 18 NPTF

1шт.

6

217-1226

ELBOW,90 Degree, 1/2"-14 Male

1шт.

7

435446A1

SHUT-OFF VALVE,1/2"-14 NPTF, Ball Type

Valve Ball

1шт.

8

L111928

CLAMP

Double

6шт.

9

R54363

CLAMP

Double

5шт.

10

515-23254

CLAMP,1", Insul, 3/8" Bolt

3шт.

11

84381091

FUEL TUBE

Fuel Lines

1шт.

12

84306773

BRACKET, SUPPORTING

Front Fuel Line Support

1шт.

13

84306775

BRACKET, SUPPORTING

Rear Fuel Line Support

1шт.

14

84379091

BRACKET

Hose Clamp

1шт.

15

84381096

BRACKET

Cooler Hose Seal With Fuel

1шт.

16

248-2181

GROMMET,1" ID x 3/8" Groove Dia

2шт.

17

84365674

FUEL HOSE,15.9mm ID x 990.6mm L

36" x 5/8"

1шт.

18

84197929

FUEL HOSE,15.9mm ID x 723.9mm L

15.9mm ID x 723.9mm L

1шт.

19

296077A1

HOSE

36" x 5/8"

1шт.

20

352767A1

FITTING

Sight Gauge

2шт.

21

337248A1

O-RING,0.139" Thk x 0.484" ID, -206, Cl 5, 75 Duro

4шт.

22

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

23

402800A1

BRACKET

Fuel Sight Gauge

2шт.

24

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

25

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

26

84197976

CHANNEL

Fuel Sight Gauge

1шт.

27

337240A1

FUEL HOSE,6.35 mm ID x 1206.00 mm

1шт.

28

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

38шт.

29

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

30шт.

30

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

11шт.

31

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

32

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

33

214-1510

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm, W/ Liner

18шт.

34

L18331

CABLE TIE,375.9mm L, Nylon, Black

Tie Hose

3шт.

35

84299395

SCREW,Hex Soc, M8 x 1.25 x 30mm, Cl 10.9

M8 x 30

2шт.

36

84401009

PROTECTIVE SLEEVE,46.7mm ID x 680mm L

Heat

1шт.

37

84563456

PROTECTIVE SLEEVE,24.4mm ID x 1980mm L

Heat

11шт.

38

84401013

PROTECTIVE SLEEVE,24mm ID x 1775mm L

Heat

1шт.

39

47729121

SLEEVE,24.4mm ID x 455mm L

Heat

1шт.

40

327144A1

STRAP,328mm L

Dual Tie

1шт.

41

L11541

CABLE TIE,203.2mm L, Nylon

5шт.

42

84378990

BRACKET

Routing Support

1шт.

43

84602093

FUEL HOSE,16mm ID x 3696mm L

1шт.

44

47395969

FUEL HOSE,13mm ID x 3550mm L

1шт.

45

84394652

PROTECTIVE SLEEVE,46.7mm ID x 3260mm L

Heat

1шт.
