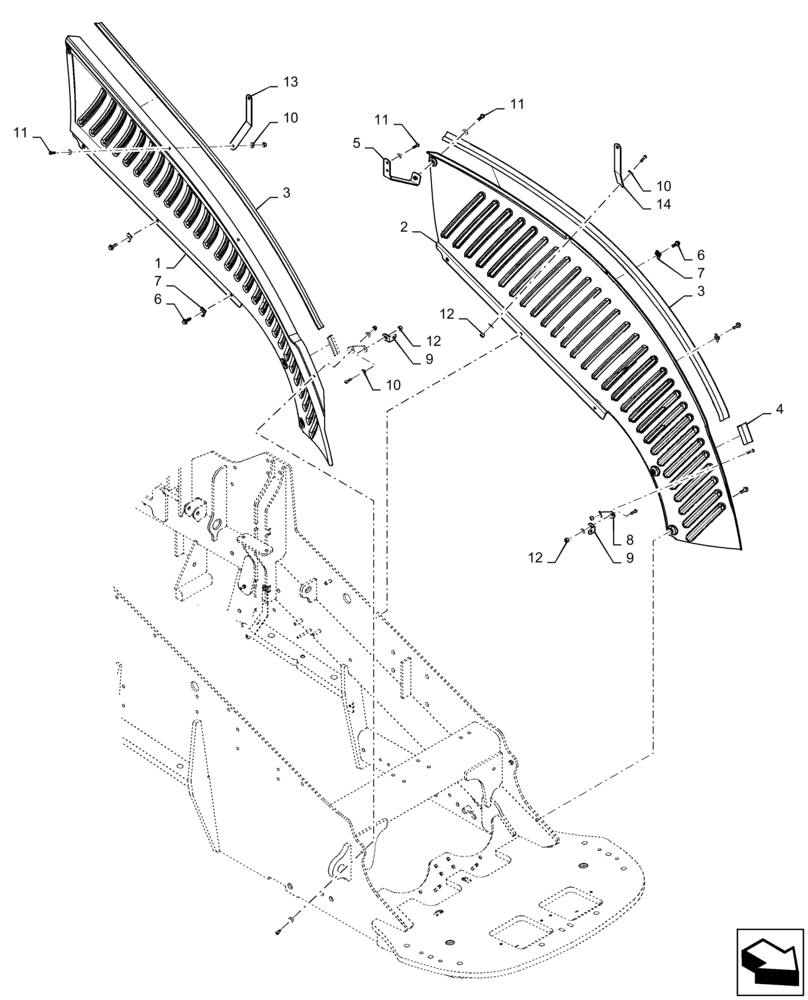

Запчасти Case IH QUADTRAC 470 (90.100.AC[01]) - ENGINE DEBRIS SCREEN (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47504414

SCREEN

Engine Debris, RH

1шт.

2

47701975

SCREEN

Engine Debris, LH

1шт.

3

47588328

WEATHERSTRIP

Upper Debris Shield

2шт.

4

47588381

WEATHERSTRIP

Upper Debris Shield

2шт.

5

47455041

SUPPORT

Debris Screen

1шт.

6

47532604

BOLT,Hex, M10 x 30mm, Cl 8.8

M10 x 30, Class 8.8, ZND

10шт.

7

833-40310

NUT,M10, U

6шт.

8

47616019

BRACKET

Debris Screen

2шт.

9

47616024

BRACKET

Screen

2шт.

10

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

20шт.

11

86512788

HEX SOC SCREW,Btn Hd, M8 x 1.25 x 30mm, Cl 10.9

12шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

7шт.

13

47395604

BRACKET

Debris Screen, RH

1шт.

14

47407432

BRACKET

Debris Screen, LH

1шт.
