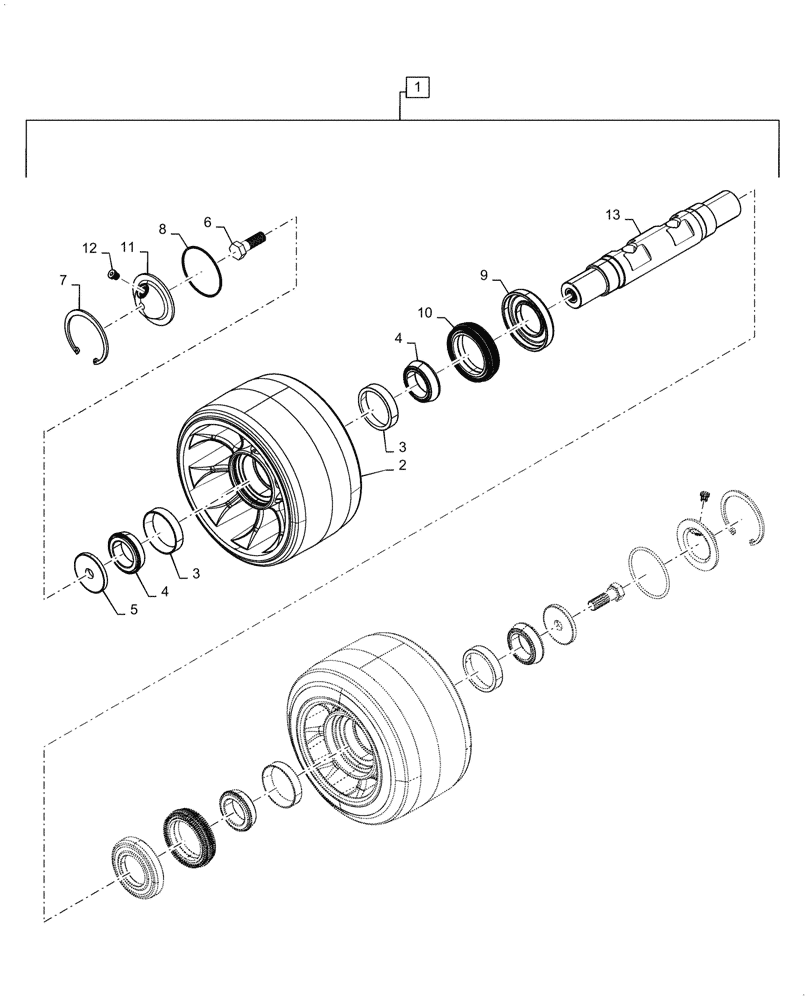

Запчасти Case IH QUADTRAC 470 (88.100.48[01]) - DIA KIT, ADDITIONAL PRODUCTS, AXLE ASSY, WIDE (88) - ACCESSORIES

1

NSS

NOT SOLD SEPARAT

Wide Roller Assy, 4WD, Incl 2 - 13, Order Through Wholegoods 48023730

1шт.

Contains 12 Roller Set Up

1шт.

1

NSS

NOT SOLD SEPARAT

Wide Roller Assy, 4WD, Incl 2 - 13, Order Through Wholegoods 48023731

1шт.

Contains 6 Roller Set Up

1шт.

2

47827309

WHEEL ASSY

Roller, 24"

2шт.

3

625743C1

BEARING CUP,90mm OD x 18.5mm W

4шт.

4

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

4шт.

5

87387720

RETAINER

Bearing

2шт.

6

84303553

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

2шт.

7

301652

SNAP RING,M110 x 4mm, Internal

2шт.

8

86984140

O-RING,97mm ID x 6.99mm Thk

2шт.

9

84223194

CUP,65.93mm ID x 125mm OD x 12.15mm Thk

2шт.

10

84198544

SEAL,84mm ID x 113.85mm OD x 29mm W

2шт.

11

47608298

COVER

Roller

2шт.

12

86598043

PLUG,M12 x 1.5 ORB

2шт.

13

47727753

SHAFT

Roller

1шт.
