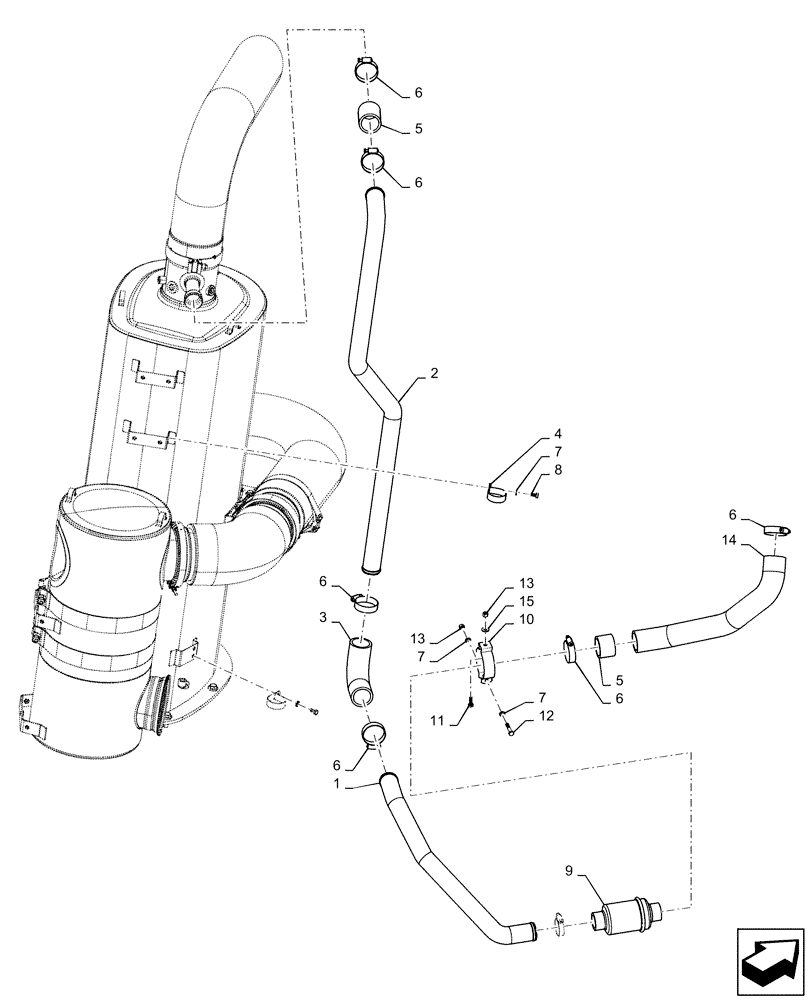

Запчасти Case IH QUADTRAC 470 (10.202.AO[01]) - EXHAUST SYSTEM, ASPIRATOR, NA (10) - ENGINE

1

47466737

TUBE

Aspirator, Check Valve To SCR

1шт.

2

47566175

TUBE

Aspirator, SCR

1шт.

3

84583312

HOSE

Elbow

1шт.

4

515-23508

CLAMP,2", Insul, 3/8" Bolt

2шт.

5

84583310

HOSE

Straight

2шт.

6

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

8шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

8

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

9

87443913

VALVE

Check, Aspirator

1шт.

10

87300581

CLAMP

Check Valve

1шт.

11

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

12

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

1шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

14

47387482

HOSE

Aspirator, Air Filter To Check Valve

1шт.

15

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

1шт.
