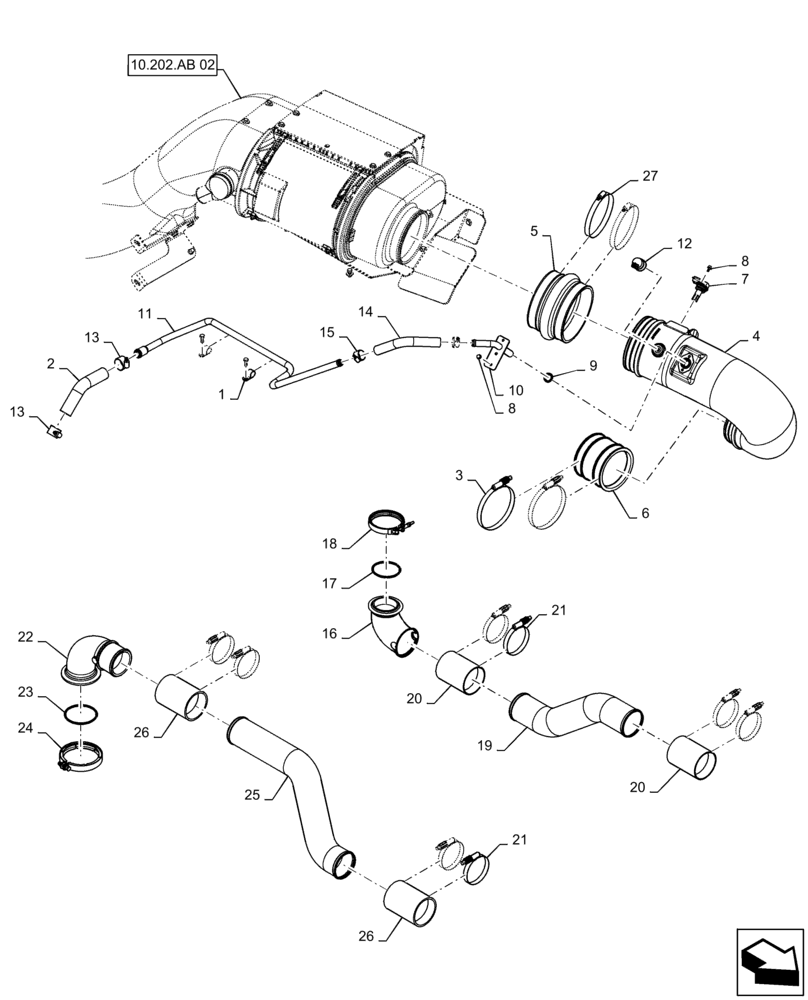

Запчасти Case IH QUADTRAC 470 (10.202.AD[02]) - AIR INTAKE - AIR CLEANER TO ENGINE - 420, 470, 500 (10) - ENGINE

1

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

2шт.

2

47592281

HOSE

Breather

1шт.

3

L129159

CLAMP,5-1/4" - 6-1/8", Worm Gear

2шт.

4

84556247

AIR INTAKE TUBE

Clean

1шт.

5

47670649

BELLOWS

Rubber

1шт.

6

84566521

BELLOWS

Rubber Bellows

1шт.

7

87482355

SENSOR

Intake Air Temperature

1шт.

8

87698753

FLANGE BOLT,M6 x 12mm, Cl 10.9, Full Thd

4шт.

9

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1шт.

10

47386623

AIR INTAKE TUBE

CCV Return

1шт.

11

47588322

TUBE

Air Intake, Vacuum

1шт.

12

293797A1

RESTRICTION SWITCH

Air Intake

1шт.

13

214-1520

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm, W/ Liner

2шт.

14

47568793

HOSE

Breather to Breather Tube

1шт.

15

214-1512

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm, W/ Liner

2шт.

16

84293344

ELBOW

Air Intake

1шт.

17

47764790

O-RING,82mm ID x 2.6mm Thk, 70 Duro

1шт.

18

87434593

CLAMP,104.39mm - 105.66mm

1шт.

19

84556267

AIR INTAKE TUBE

Charge Air Compressor

1шт.

20

47435149

AIR HOSE

Intake, CAC

2шт.

21

47616394

CLAMP,83mm - 105mm, Worm Gear

8шт.

22

84223171

ELBOW

Air Intake Connection

1шт.

23

238-6240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

1шт.

24

84223170

CLAMP,125mm ID, V-Band

1шт.

25

84370830

AIR INTAKE TUBE

Charge

1шт.

26

84174189

INTAKE AIR HOSE

Cold Side

2шт.

27

84246771

CLAMP,7-1/4" - 8-1/8", Worm Gear

2шт.
