Запчасти Case IH QUADTRAC 470 (55.640.BH[02]) - ISO 11783 CAB HARNESS (55) - ELECTRICAL SYSTEMS

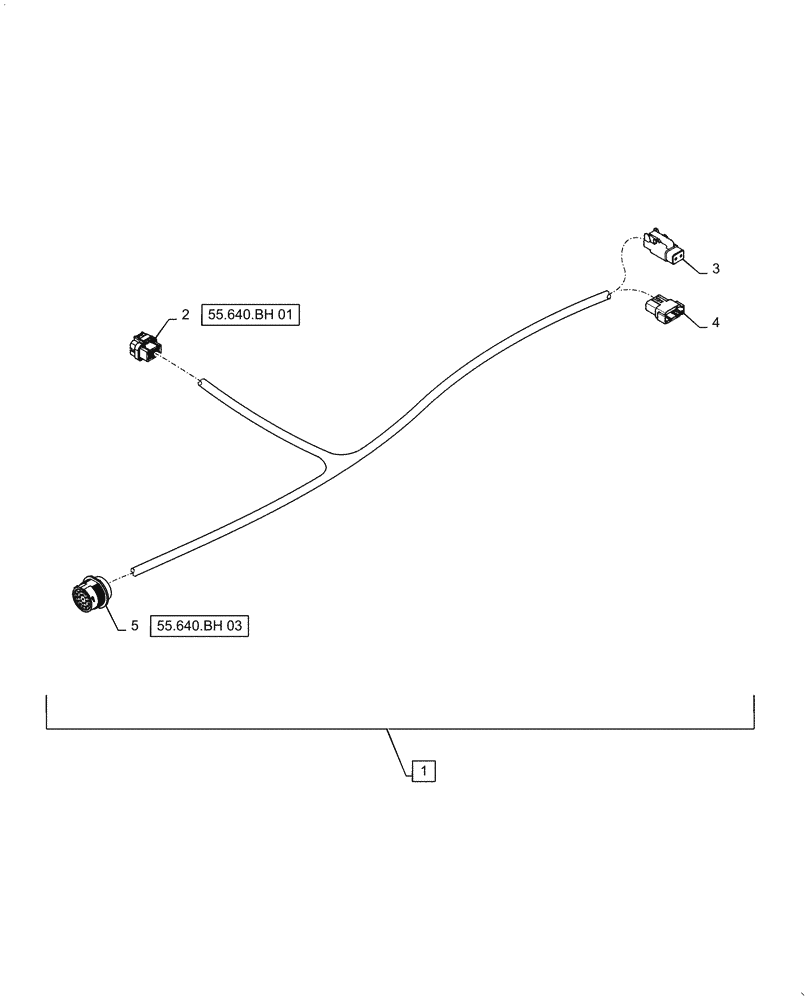

Схема запчастей Case IH QUADTRAC 470 - (55.640.BH[02]) - ISO 11783 CAB HARNESS (55) - ELECTRICAL SYSTEMS
5
55.640.bh 03
2
3
1
55.640.bh 01
4

Артикул

Название

Примечание

Количество

1

84558926

WIRE HARNESS

Cab, ISO 11783, Incl 2 - 5

1шт.

2

87410946

MULTIPOLE CONNECTOR,Female, 34 Cavities

Tractor ECU, C088

1шт.

2

82017049

PLUG

Tractor ECU, C088

18шт.

2

82017048

CABLE TERMINAL

Tractor ECU, C088

14шт.

2

87410951

TERMINAL

Tractor ECU, C088

2шт.

3

87696093

ELEC CONNECTOR,Female, 2 Cavities

To Cab Harness, C848M

1шт.

3

87696145

LOCKING TAB

To Cab Harness, C848M

1шт.

3

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

To Cab Harness, C848M

2шт.

4

223682A1

ELEC CONNECTOR

To Cab Harness, C608F

1шт.

4

87705201

WEDGE

To Cab Harness, C608F

1шт.

4

84807680

PLUG

To Cab Harness, C608F

1шт.

4

87696141

TERMINAL

To Cab Harness, C608F

11шт.

5

84177900

ELEC CONNECTOR

To ISO 11783 Chassis Harness, C008F

1шт.

5

87696184

NUT

To ISO 11783 Chassis Harness, C008F

1шт.

5

84068583

PLUG,12 - 16 Ga, White

To ISO 11783 Chassis Harness, C008F

11шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

To ISO 11783 Chassis Harness, C008F

12шт.

Выбрано товаров: 16
