Запчасти Case IH QUADTRAC 470 (50.200.BY[04]) - AIR CONDITIONER LINES, 400, 420, 450, 470, 500, ASN ZEF303633 (50) - CAB CLIMATE CONTROL

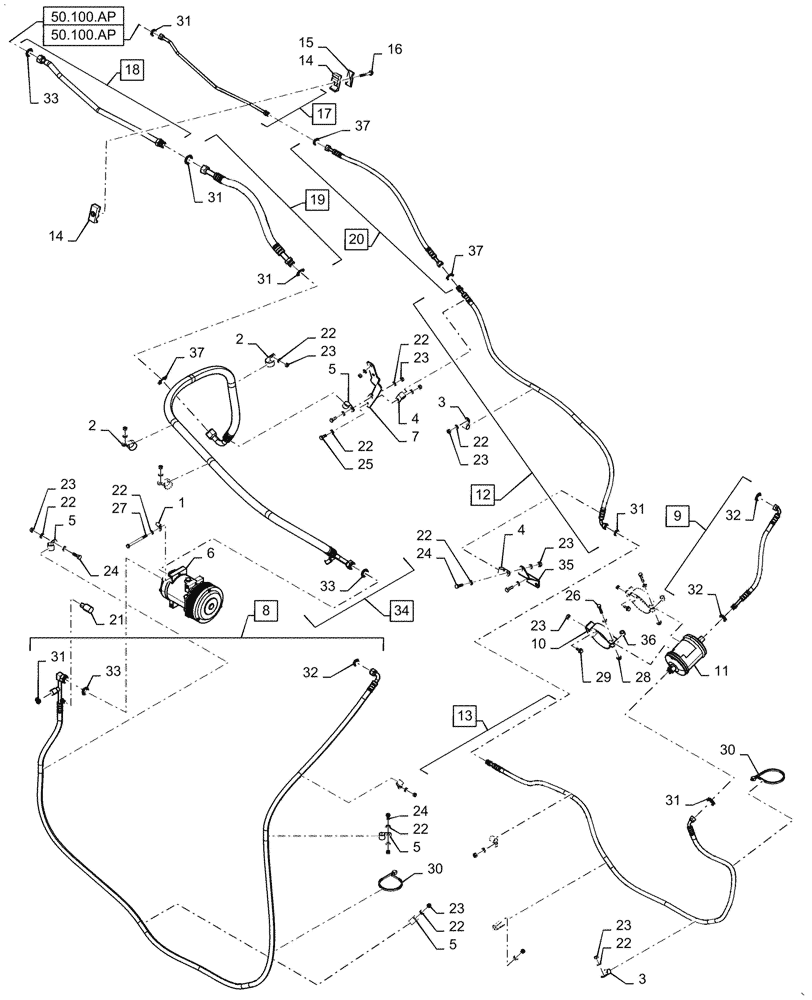

Схема запчастей Case IH QUADTRAC 470 - (50.200.BY[04]) - AIR CONDITIONER LINES, 400, 420, 450, 470, 500, ASN ZEF303633 (50) - CAB CLIMATE CONTROL
28
33
22
31
32
22
31
20
3
15
4
50.100.ap
23
30
17
32
19
2
33
36
10
23
18
23
24
8
31
9
14
50.100.ap
37
21
22
32
31
13
29
23
24
14
31
4
5
5
1
22
22
3
37
27
24
22
22
11
31
22
23
12
16
23
23
6
2
5
7
30
33
35
22
37
5
25
23
26
34
22

Артикул

Название

Примечание

Количество

1

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

2

515-23302

CLAMP,1 3/16", Insul, 3/8" Bolt

5шт.

3

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

5шт.

4

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

2шт.

5

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

6шт.

6

86993463

AIRCOND. COMPRESSOR

A/C 12V Poly-V

1шт.

6

86993463GV

AIRCOND. COMPRESSOR

Value

1шт.

6

86993463R

REMAN-A/C COMPRESSOR

Reman for New PN 86993463

1шт.

6

86993463C

CORE-A/C COMPRESSOR

Return Number

1шт.

7

47717948

BRACKET

A/C Tube Support

1шт.

8

84217000

HOSE ASSY.

A/C Compressor To Condenser, Incl 31 - 33

1шт.

High Side Charge Port Cap - P/N 86511148

1шт.

9

47713334

A/C HOSE

A/C Return Engine, Incl 32, Serial Range: -ZGF311110

1шт.

9

47923361

A/C HOSE

A/C Return Engine, Incl 32, Start Serial: ZGF311111

1шт.

10

433723A1

CLAMP

Bracket, Receiver/Dryer

2шт.

11

47821526

RECEIVER-DRYER

Reservoir

1шт.

12

47461059

HOSE ASSY.

A/C Condenser to Dryer, Incl 31

1шт.

13

47713329

HOSE

Dryer to Evaporator Frame, Incl 31

1шт.

14

255212A1

CLAMP

Cab Supply/Return Tubes

1шт.

15

50-2532T1

PLATE

Cover

1шт.

16

844-8060

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

1шт.

17

84376593

TUBE

A/C Supply Cab, Incl 31

1шт.

18

47695011

TUBE

A/C Return Cab, Incl 33

1шт.

19

84471418

HOSE ASSY.

A/C Dryer To Evaporator, Cab Side, Incl 31

1шт.

20

47713339

A/C HOSE

A/C Evaporator To Compressor, Cab Side, Incl 37

1шт.

21

284273A2

SWITCH, A/C HIGH PRE

Switch

1шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

32шт.

23

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

20шт.

24

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

25

615-8020

BOLT,Hex, M8 x 20, 8.8, Full Thd

2шт.

26

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

27

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

28

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

29

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

30

L18331

CABLE TIE,375.9mm L, Nylon, Black

Hose

2шт.

31

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5шт.

32

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

3шт.

33

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

3шт.

34

47805217

A/C HOSE

Evaporator to Compressor, Incl 33, 37

1шт.

35

47717952

BRACKET

1шт.

36

87311354

SPACER,10.7mm ID x 17.1mm OD x 14.2mm L

2шт.

37

47702787

O-RING

2шт.

Выбрано товаров: 42
