Запчасти Case IH QUADTRAC 470 (50.100.AC[02]) - HEATER LINES, 420, 470, 500 (50) - CAB CLIMATE CONTROL

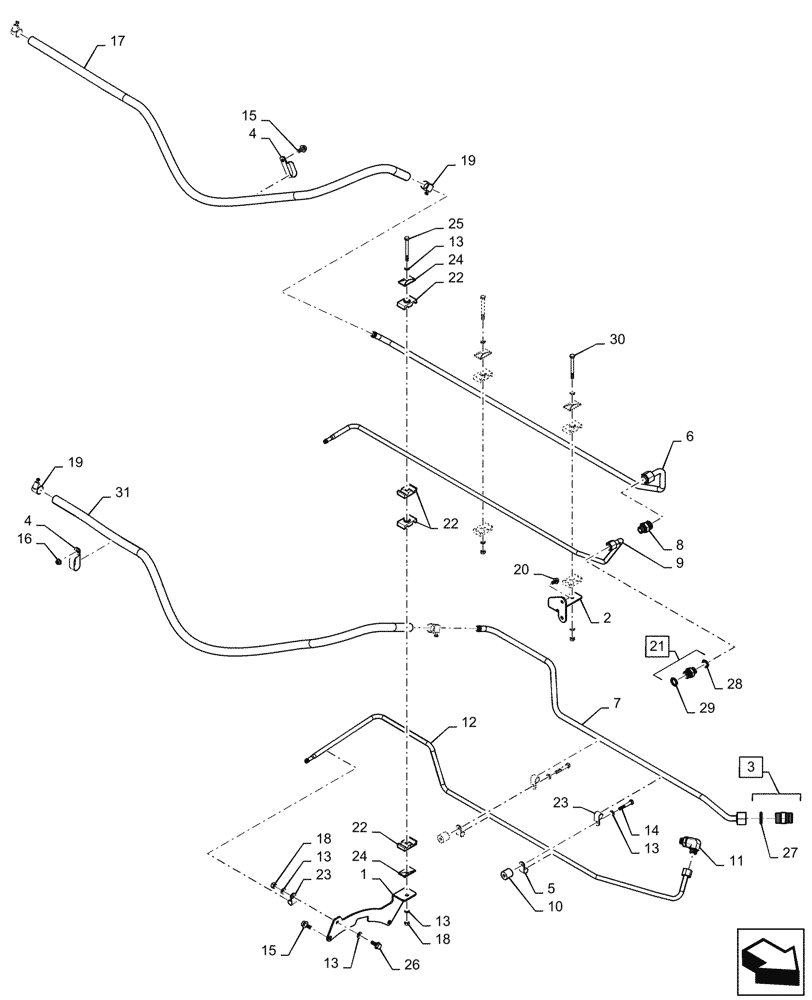

Схема запчастей Case IH QUADTRAC 470 - (50.100.AC[02]) - HEATER LINES, 420, 470, 500 (50) - CAB CLIMATE CONTROL
21
16
13
23
4
22
5
13
31
15
7
23
12
1
2
4
13
28
8
24
3
19
17
14
15
29
11
27
13
18
30
9
24
18
6
19
20
13
22
25
26
22
10

Артикул

Название

Примечание

Количество

1

84584990

BRACKET

Front Tube Support

1шт.

2

47410606

BRACKET

Heater Tube Support

1шт.

3

86984542

END FITTING

1-3/16" - 12 x M30 x 1.5, Incl 27

1шт.

4

R54363

CLAMP

Hose, Double

2шт.

5

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

6

47484724

HEATER TUBE

Supply, Engine To Cab Heater

1шт.

7

47422135

HEATER TUBE

Return, Cab Heater To Engine

1шт.

8

84196966

FITTING

1" - 14 x M22 - 1.5

1шт.

9

47484819

HEATER TUBE

SCR Heater Supply

1шт.

10

8500571

SPACER,10mm ID x 25.4mm OD x 25mm L

Block

2шт.

11

84319913

HYD CONNECTOR,13/16-16 ORFS, 1/2-14 BSPP ORB

13/16" - 16

1шт.

12

47419995

HEATER TUBE

SCR Heater Return

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

14

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

2шт.

15

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

3шт.

16

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

17

47974970

HOSE

Heater Supply, 1945mm L

1шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

19

214-1510

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm, W/ Liner

4шт.

20

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

21

82016497

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5

Incl 28 - 29

1шт.

22

47568093

PIPE CLAMP

Double

4шт.

23

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

3шт.

24

50-2532T1

PLATE

Cover

4шт.

25

827-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

1шт.

26

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

27

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

28

81845038

O-RING,0.5" ID x 0.07" Thk

1шт.

29

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

Oring

1шт.

30

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

31

47974969

HOSE

Heater Return, 1945mm L

1шт.

Выбрано товаров: 31
